Ignition Control System: Wiring Diagram: Notes

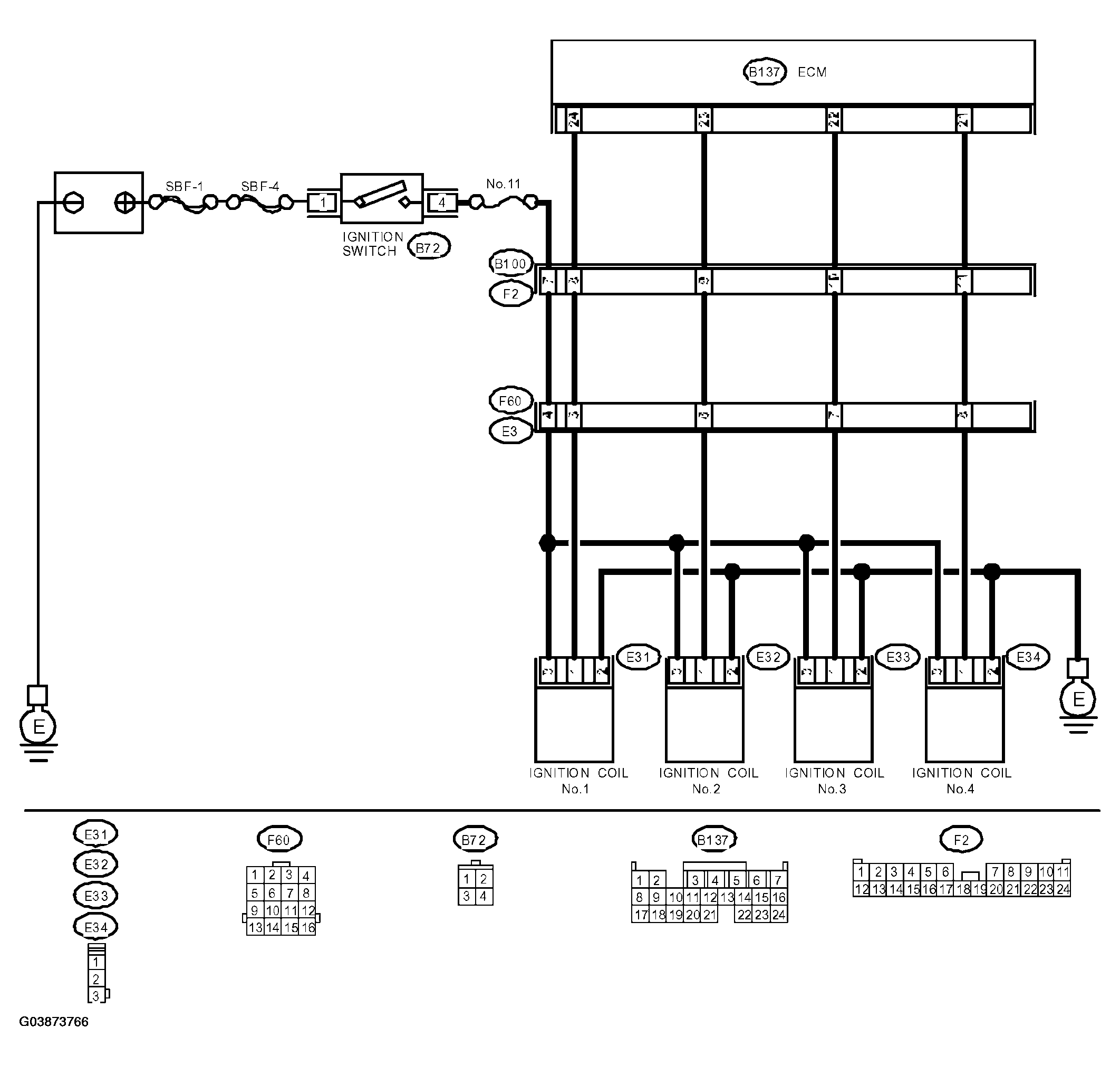

Fig 1: Wiring Diagram - Ignition Control System

G03873766

Courtesy of SAAB-SCANIA OF AMERICA, INC.
