Technical Description: Note:
This connector is used both for the OBD-II general scan tools and Vehicle Diagnostic Interface.
IMPORTANT:
Do not connect any scan tools other than the OBD-II general scan tools and Vehicle Diagnostic Interface, because the circuit for Vehicle Diagnostic Interface may be damaged.

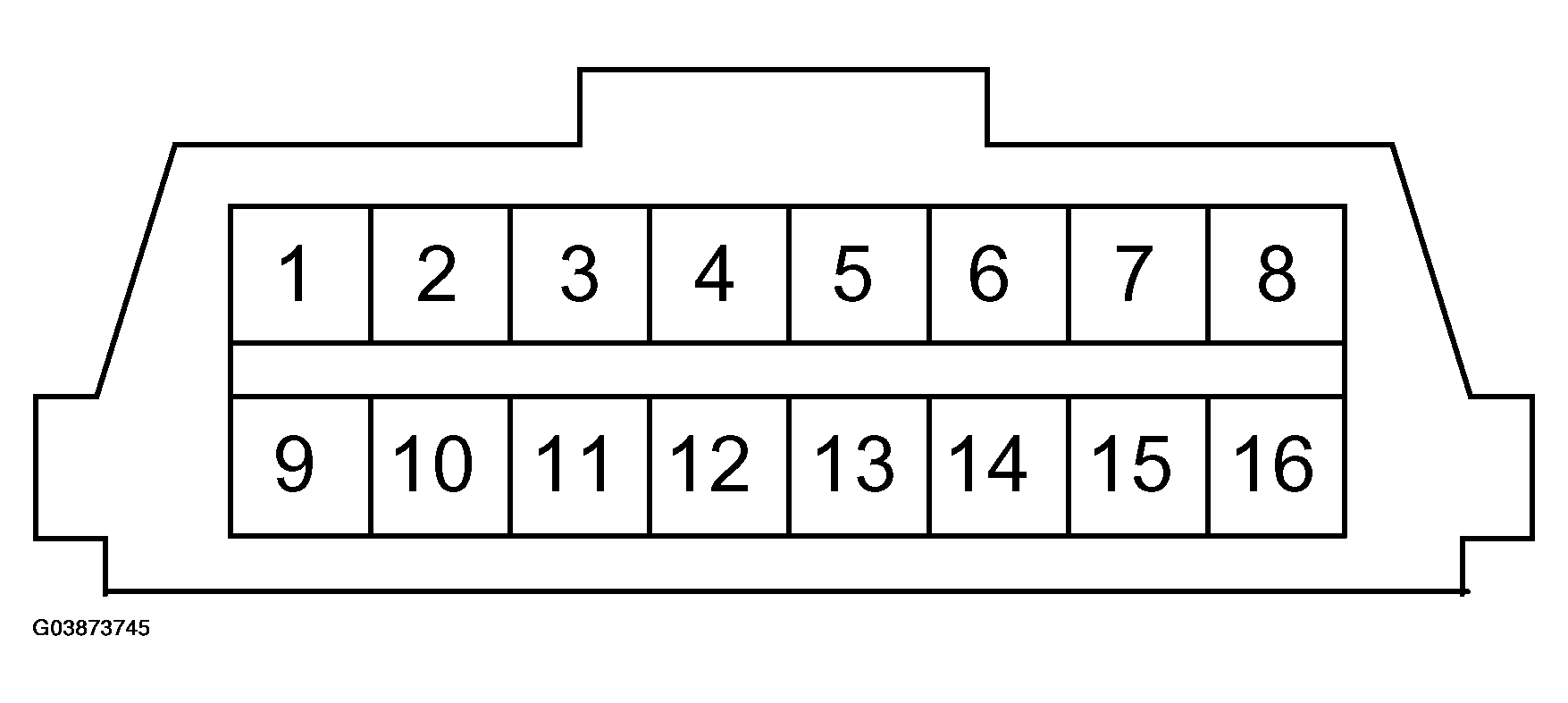

DATA LINK CONNECTOR TERMINALS SPECIFICATION
| Terminal No. | Contents |
|---|---|
| 1 | Power supply |
| 2 | Blank |
| 3 | Blank |
| 4 | Blank |
| 5 | Blank |
| 6 | Line end check signal 1 |
| 7 | Blank |
| 8 | Line end check signal 2 |
| 9 | Blank |
| 10 | Vehicle Diagnostic Interface/OBD-II general scan tool signal |
| 11 | Blank |
| 12 | Ground |
| 13 | Ground |
| 14 | Blank |
| 15 | Blank |
| 16 | Blank |
