Compulsory Valve Operation Check Mode: Operation

Prepare the Vehicle Diagnostic Interface kit.

Connect the diagnosis cable to Vehicle Diagnostic Interface.

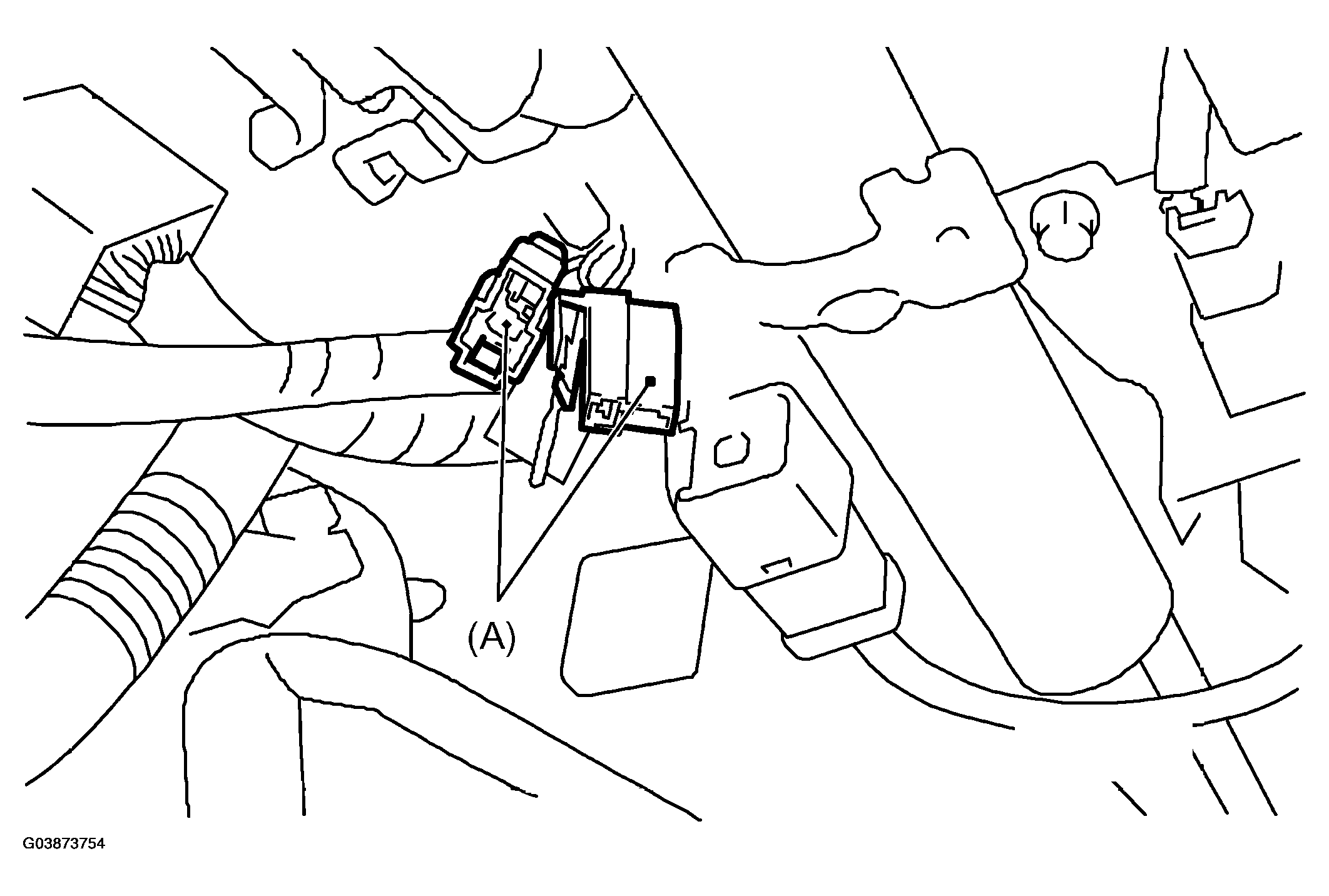

Connect the test mode connector (A) at the lower portion of instrument panel (on the driver's side).

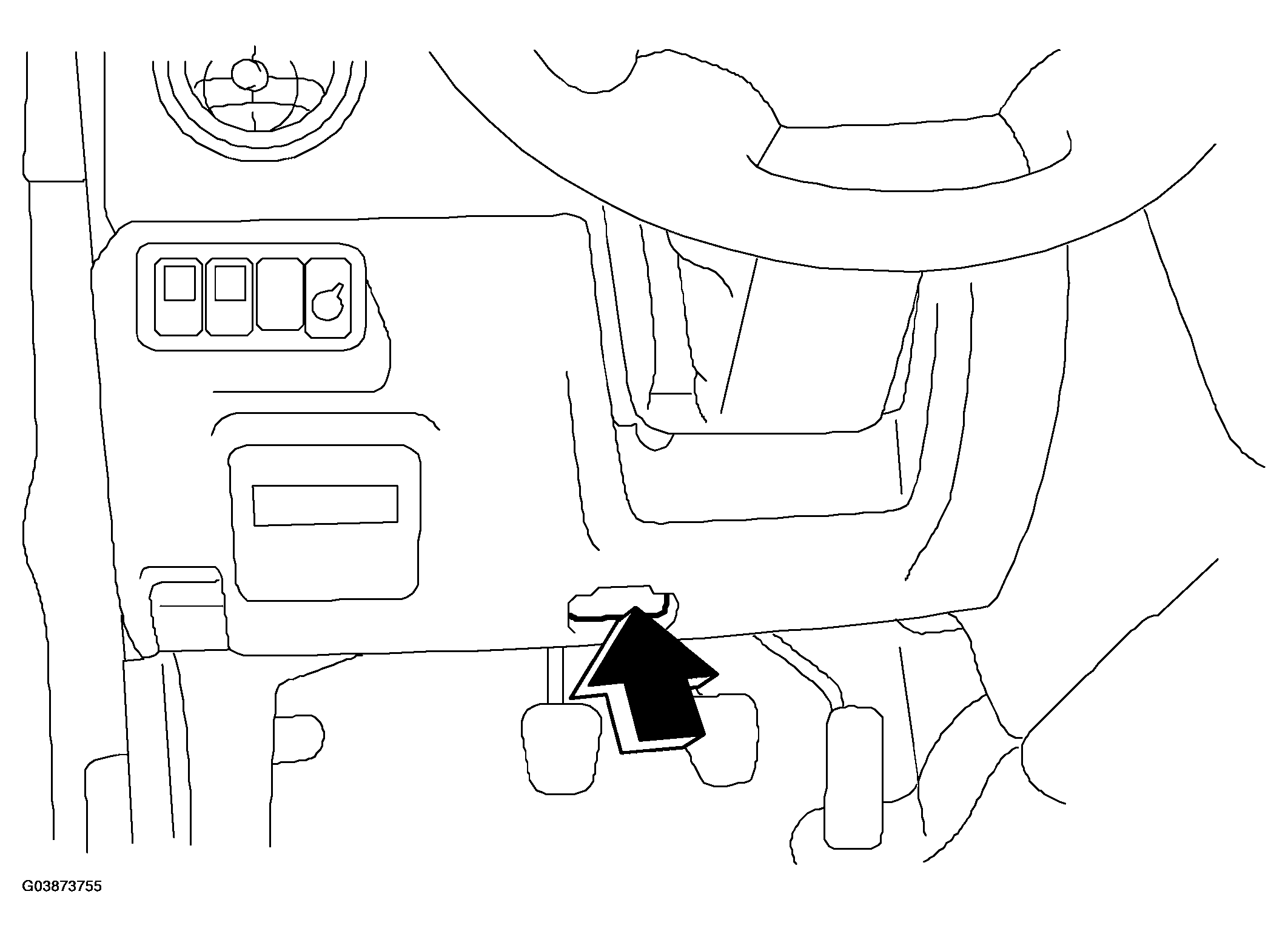

Connect the Vehicle Diagnostic Interface to data link connector located in the lower portion of instrument panel (on the driver's side).

Turn the ignition switch to ON (engine OFF), and start the Vehicle Diagnostic Interface.

On the << Main Menu >> display screen, select the {2. Each System Check}.

On the << System Selection Menu >> display screen, select the {Engine Control System}.

Select the {OK} after the information of engine type is displayed.

On the << Engine Diagnosis >> display screen, select the {System Operation Check Mode}.

On the << System Operation Check Mode >> display screen, select the {Actuator ON/OFF Operation}.

Select the desired compulsory actuator on the << Actuator ON/OFF Operation >>.

Pressing the [NO] key completes the compulsory operation check mode. The display will then return to the << Actuator ON/OFF Operation >> screen.

• A list of support data is shown in the following table.
  SUPPORT DATA LIST



  Contents	Display
  Compulsory fuel pump relay operation check	Fuel Pump Relay
  Compulsory radiator fan relay operation check	Radiator Fan Relay
  Compulsory air conditioning relay operation check	A/C Compressor Relay
  Compulsory purge control solenoid valve operation check	CPC Solenoid Valve
  Compulsory pressure control solenoid valve operation check	PCV Solenoid Valve
  Compulsory drain valve operation check	Vent. Control Solenoid Valve
  Compulsory fuel tank sensor control valve operation check	Fuel Tank Sensor Control Valve
  Compulsory turbocharger wastegate solenoid operation check	Turbocharger Wastegate Solenoid
