RH Side

Disconnect the ground cable from battery.

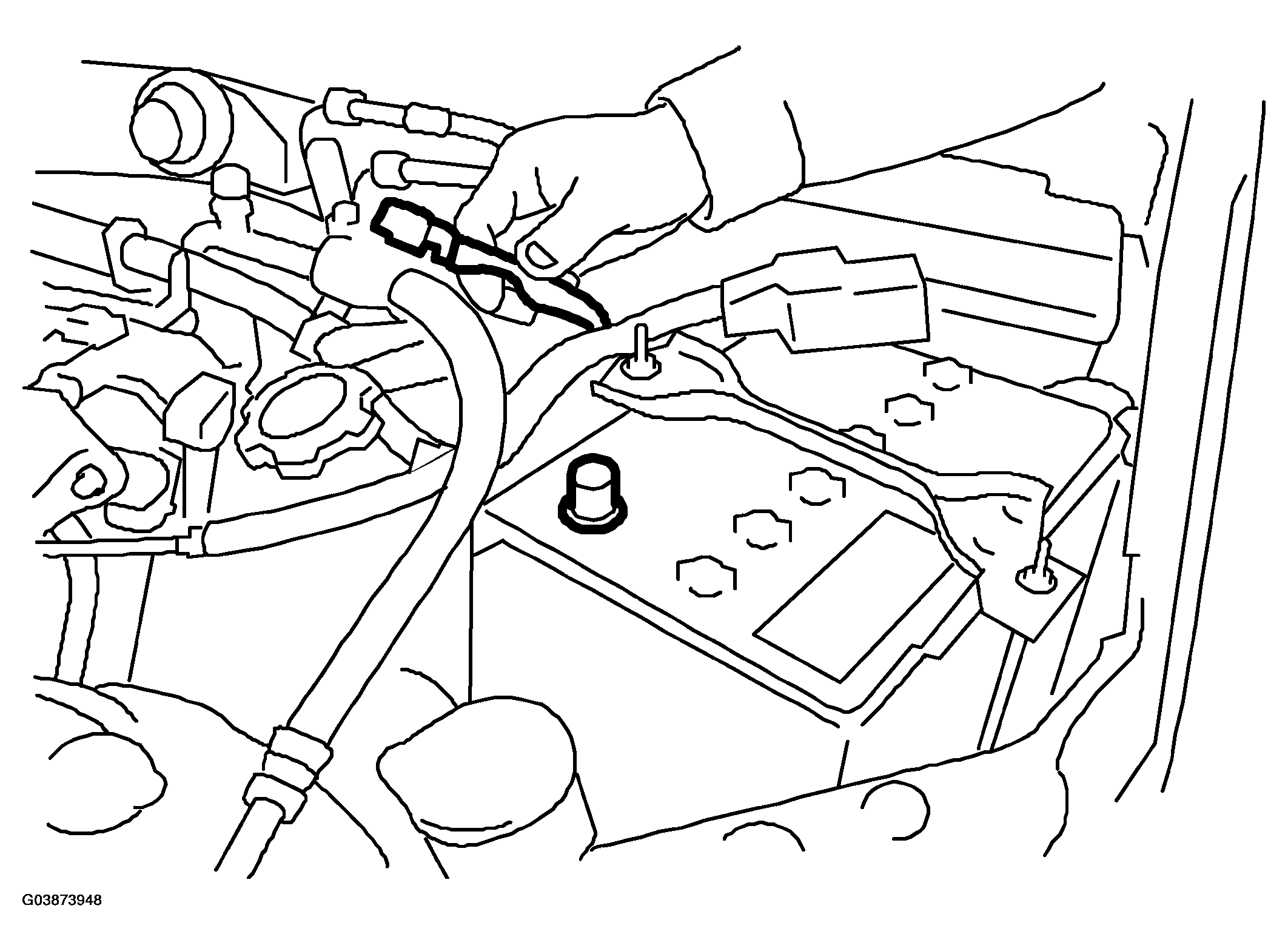

Fig 1: Disconnecting Ground Cable From Battery

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the air cleaner lower case.

Disconnect the connector from ignition coil.

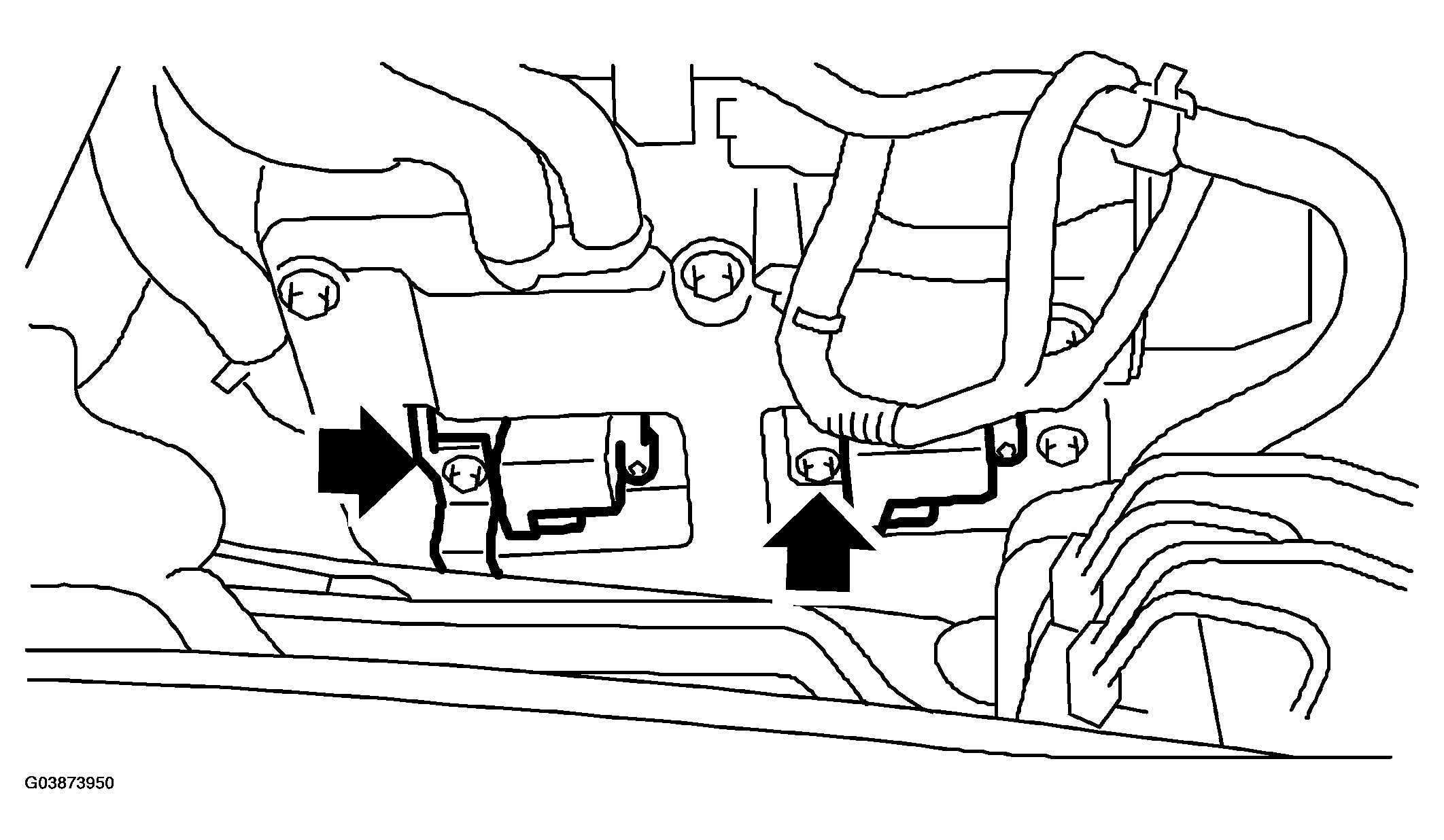

Fig 2: Disconnecting Connector From Ignition Coil

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the ignition coil.

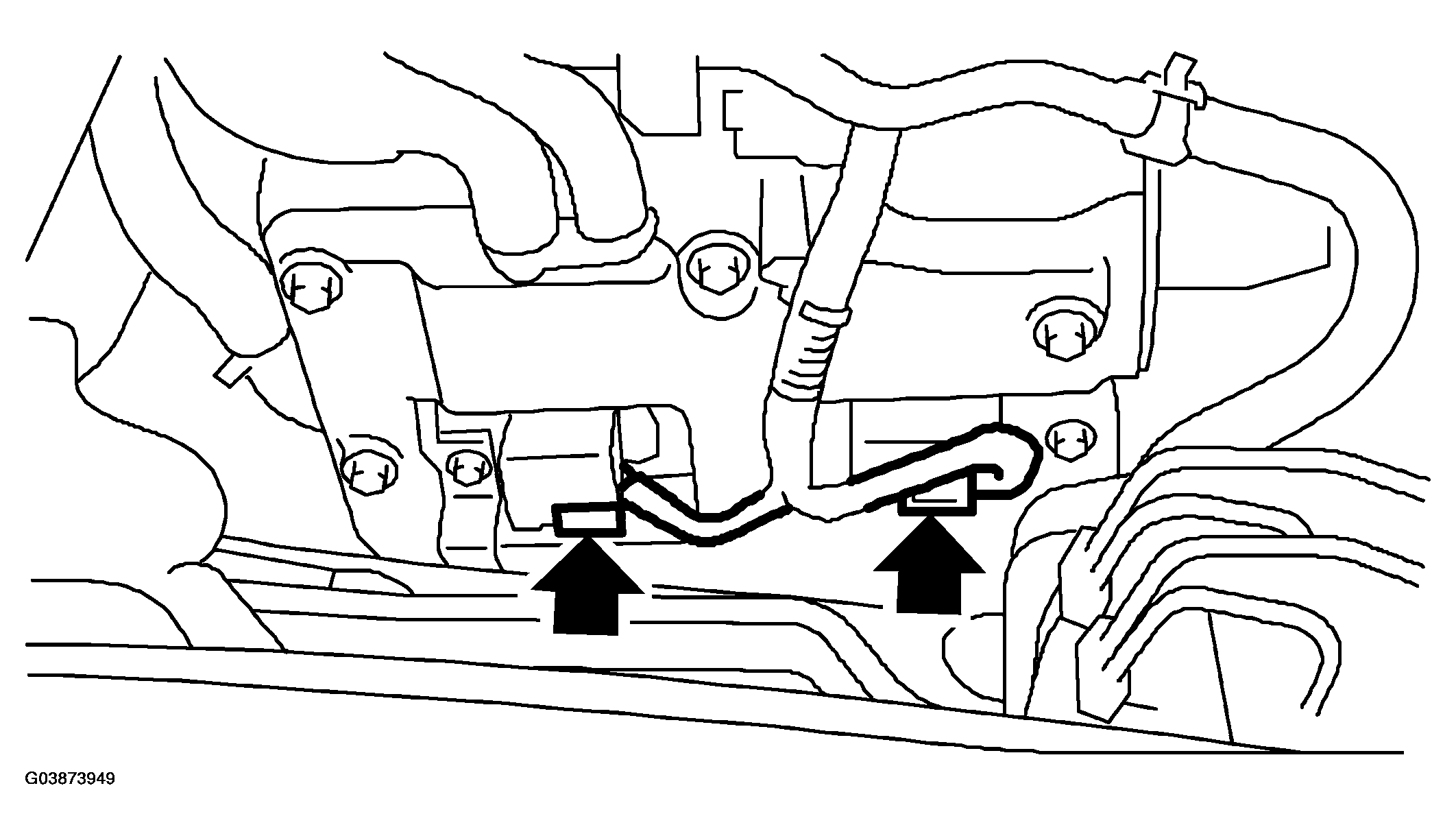

Fig 3: Removing Ignition Coil

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the spark plugs with the spark plug sockets.

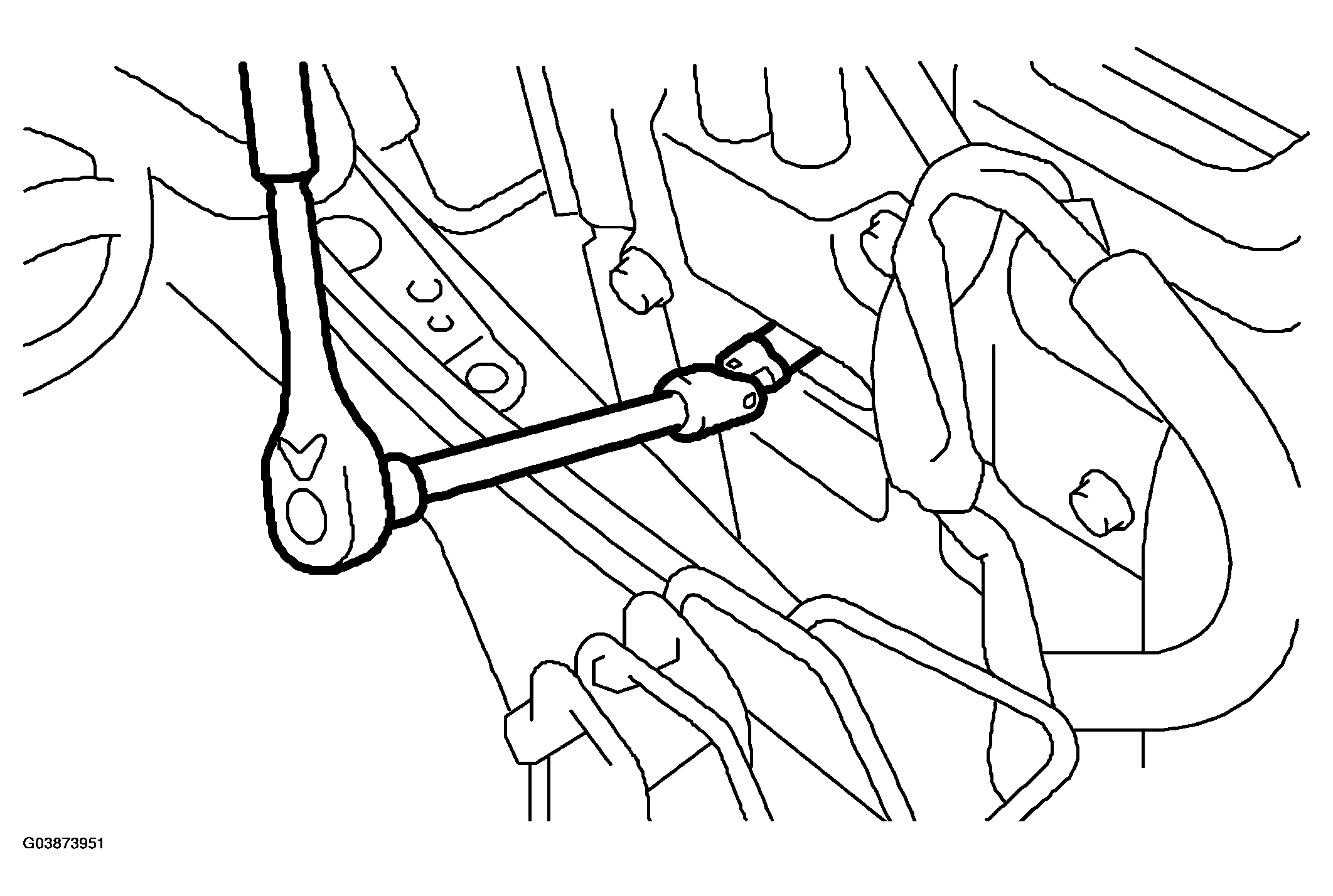

Fig 4: Removing Spark Plugs With Spark Plug Sockets

Courtesy of SAAB-SCANIA OF AMERICA, INC.
