LH Side

Remove the battery and battery carrier.

Fig 1: Removing Battery And Battery Carrier
G03873952Courtesy of SAAB-SCANIA OF AMERICA, INC.

Disconnect the connector from ignition coil.

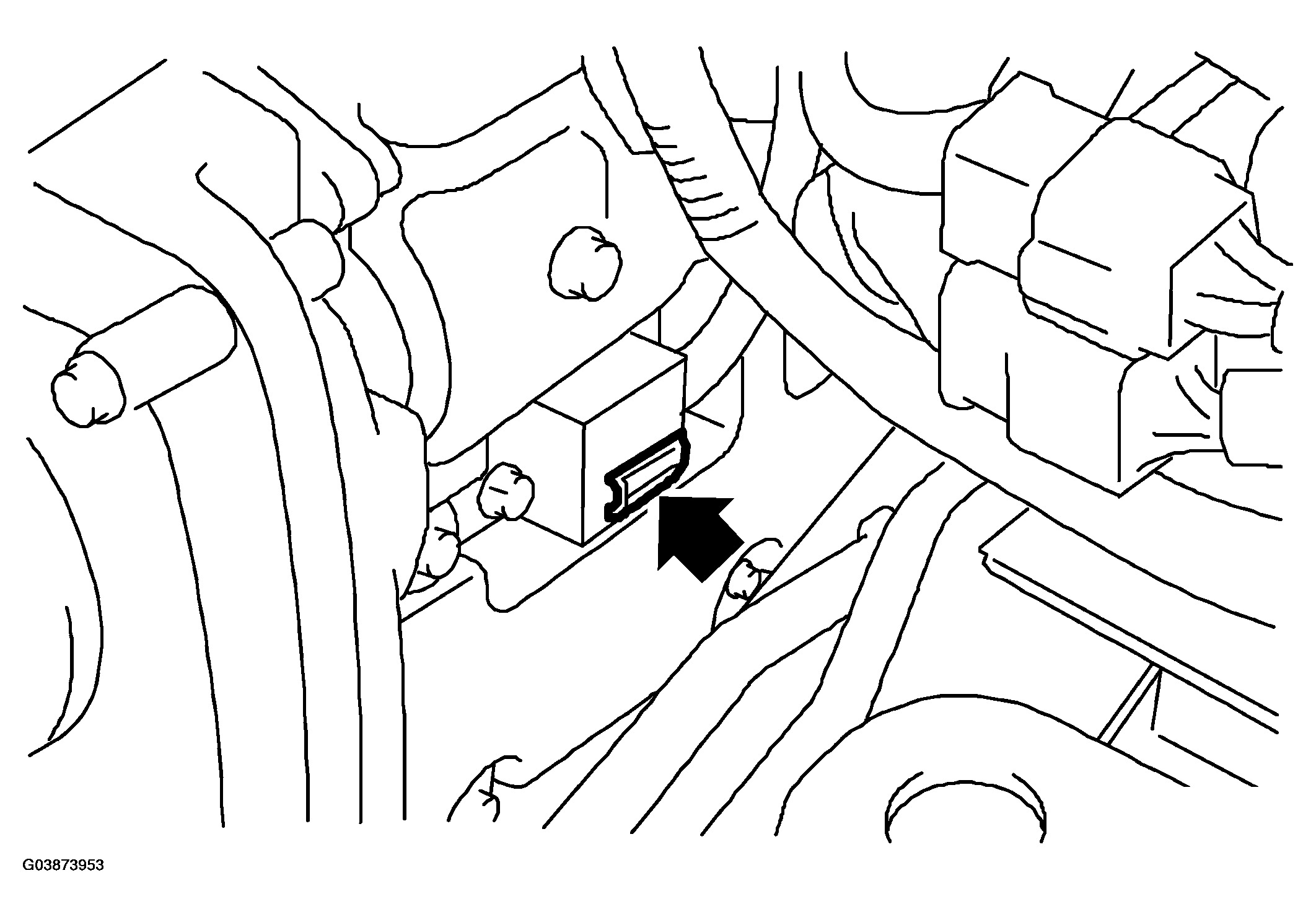

Fig 2: Disconnecting Connector From Ignition Coil
G03873953Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the ignition coil.

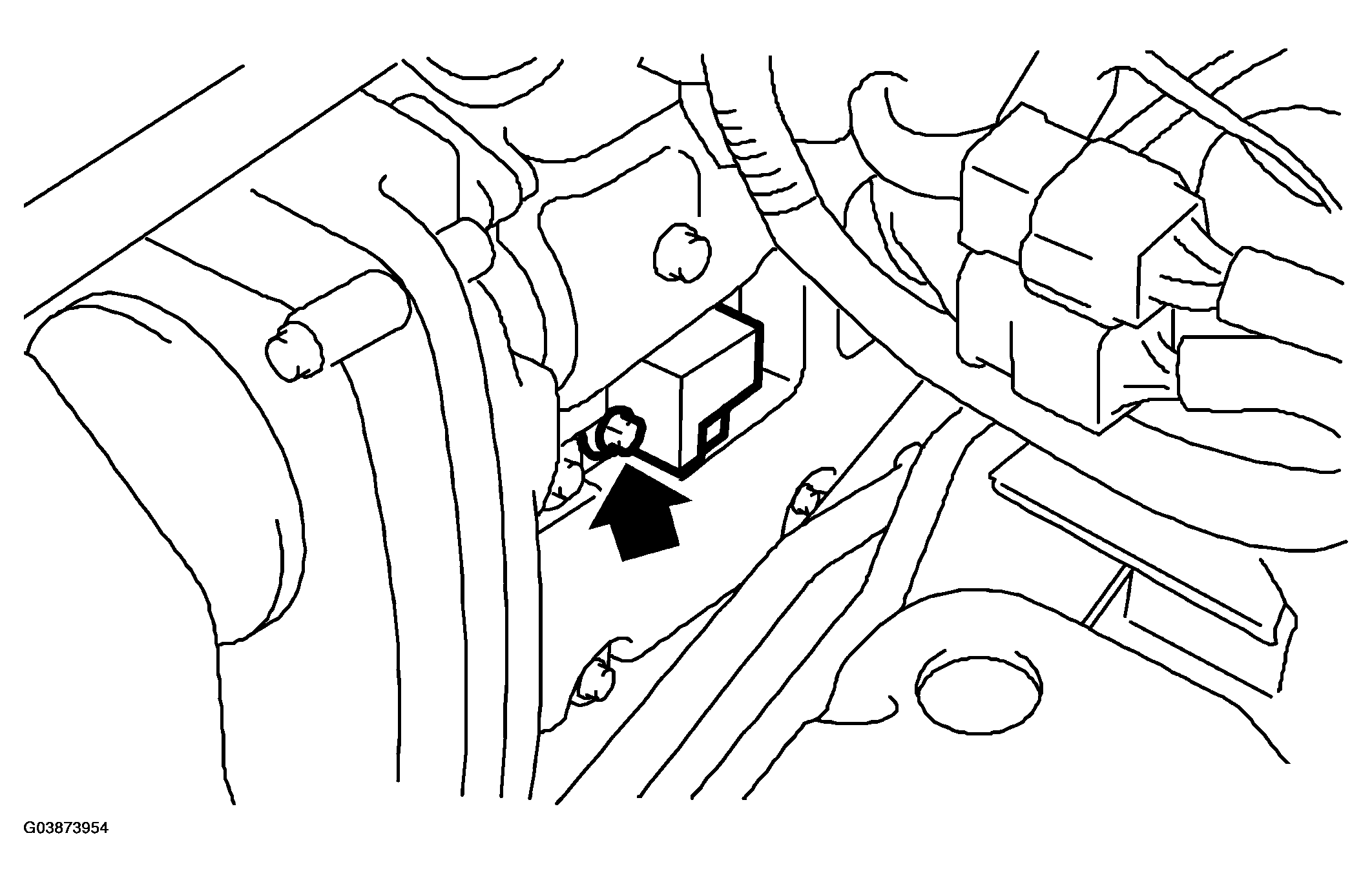

Fig 3: Removing Ignition Coil
G03873954Courtesy of SAAB-SCANIA OF AMERICA, INC.

Remove the spark plugs with the spark plug sockets.

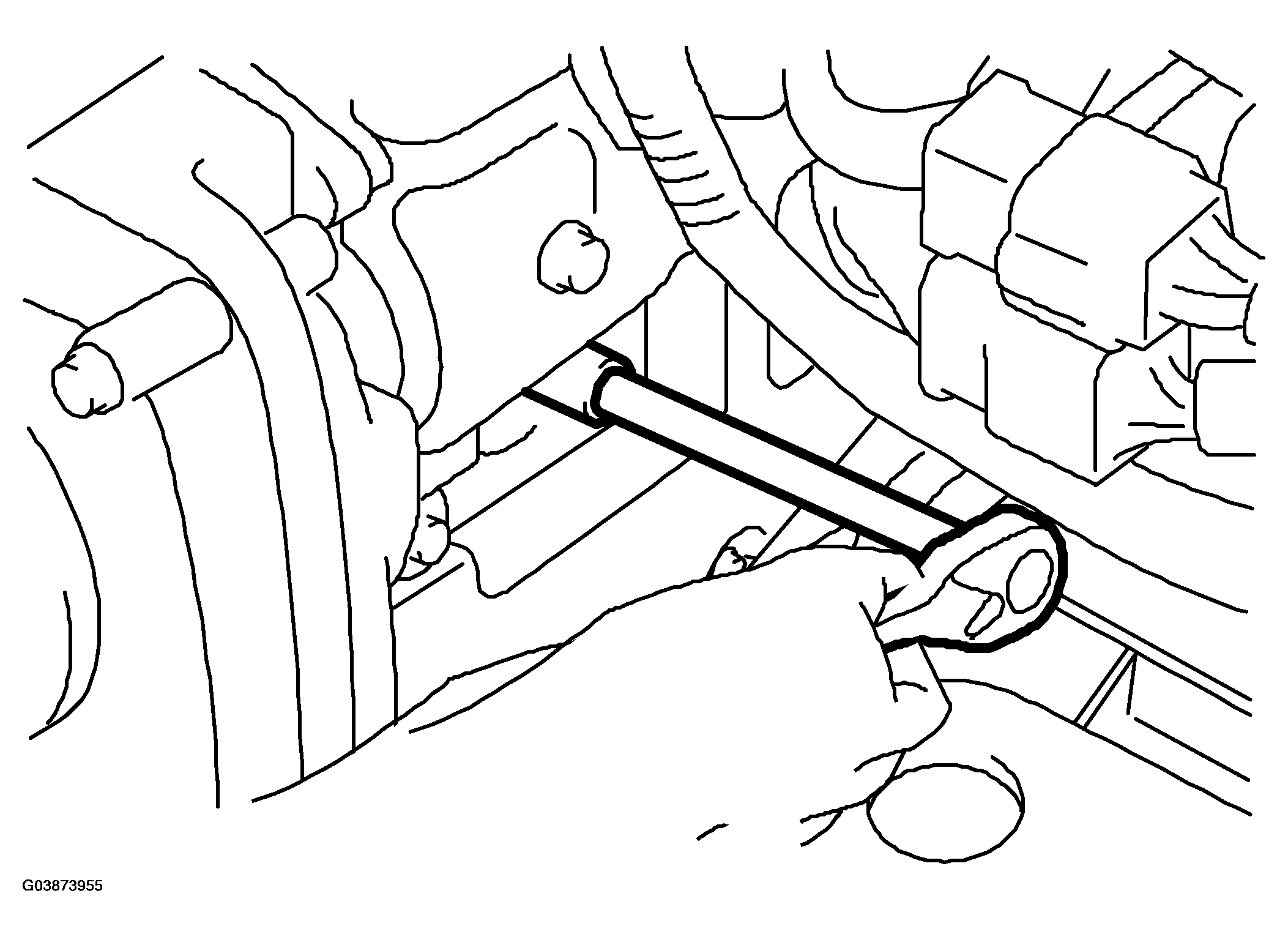

Fig 4: Removing Spark Plugs With Spark Plug Sockets
G03873955Courtesy of SAAB-SCANIA OF AMERICA, INC.
