Spark Plug: Adjustment

Clean the spark plugs with a wire brush. Clean and remove the carbon or oxide deposits, but do not wear away ceramic insulator.

If deposits are too stubborn, replace the plugs.

After cleaning the spark plugs, correct the spark plug gap using a gap gauge.

NOTE: Do not use spark plug cleaners, because the spark plugs are applied with platinum tips.

Spark plug gap: L

0.7 - 0.8 mm (0.028 - 0.031 in)

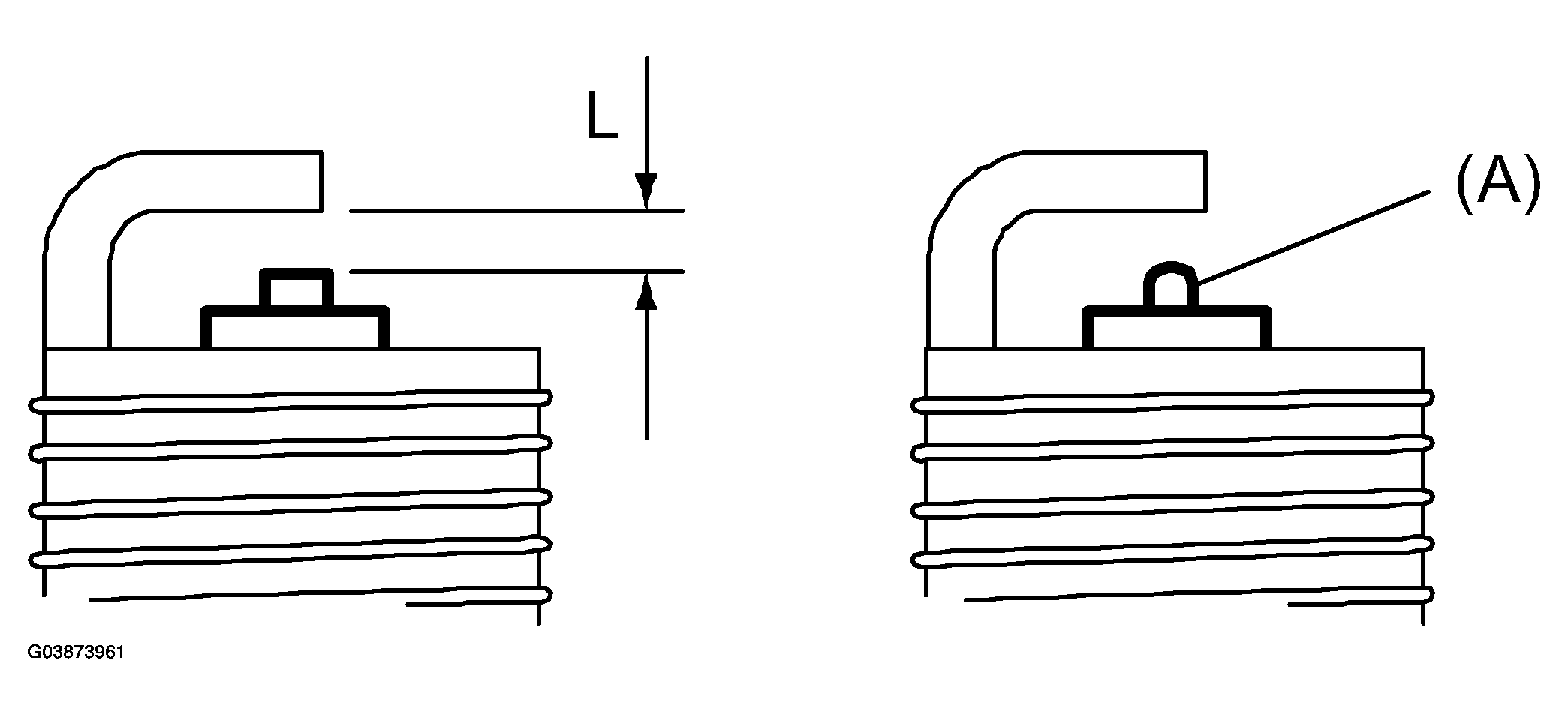

Fig 1: Checking Spark Plug Gap

Courtesy of SAAB-SCANIA OF AMERICA, INC.

NOTE: Replace with a new spark plug if this area (A) is worn to "ball" shape.
