To remove

  1. Remove the gearbox as described in TO REMOVE .

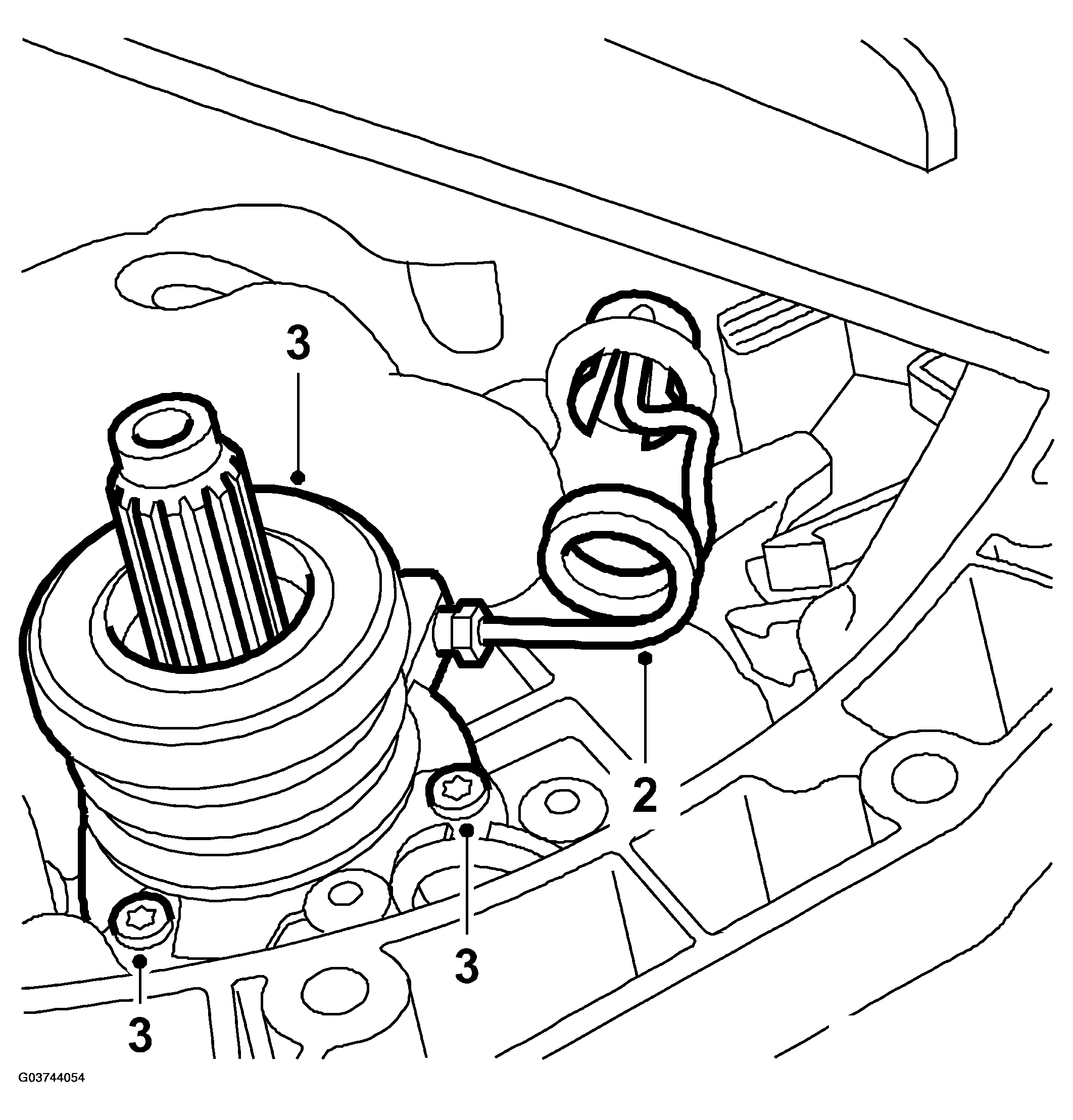

    Fig 1: Illustration For Step 2 And 3
    G03744054Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Detach the delivery pipe.
  3. Remove the slave cylinder's three retaining screws and withdraw the slave cylinder.
