Home >> Saab >> 2004 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System >> Fault Diagnosis, Fault Codes >> DTC P0133: O2S Circuit - Slow Response - Sensor 1 >> Notes

DTC P0133: O2S Circuit - Slow Response - Sensor 1: Notes

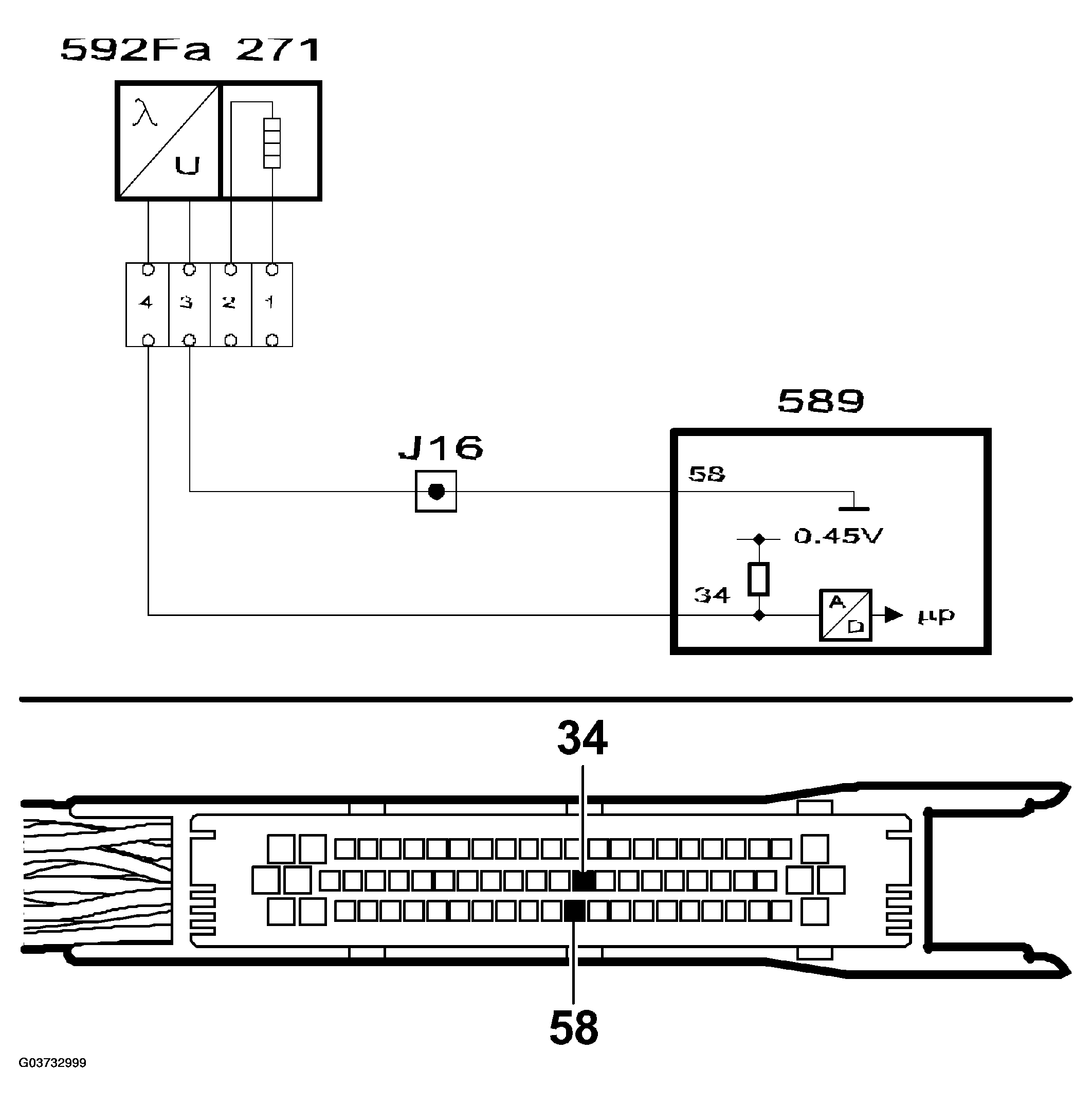

Fig 1: P0133 O2S - Slow Response. Sensor 1 - Circuit Diagram

G03732999

Courtesy of SAAB-SCANIA OF AMERICA, INC.
