Home >> Saab >> 2004 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Engine Performance >> TRIONIC T7 Fuel Control System >> Fault Diagnosis, Fault Codes >> DTC P0101: Mass Air Flow Circuit - Performance Problems >> Notes

DTC P0101: Mass Air Flow Circuit - Performance Problems: Notes

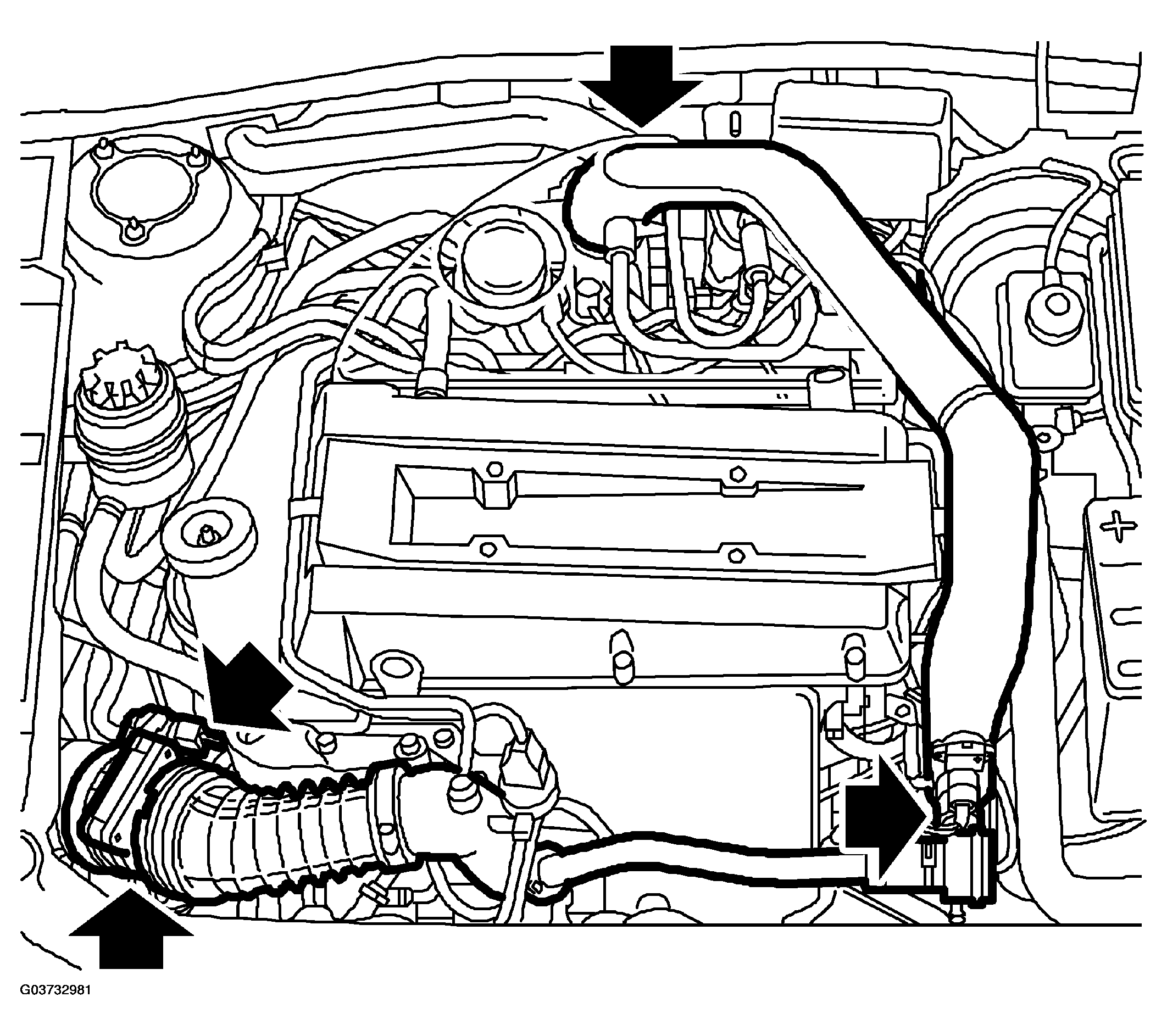

Fig 1: Locating Mass Air Flow Sensor & Air Intake Components

G03732981

Courtesy of SAAB-SCANIA OF AMERICA, INC.
