Drive-belt tension

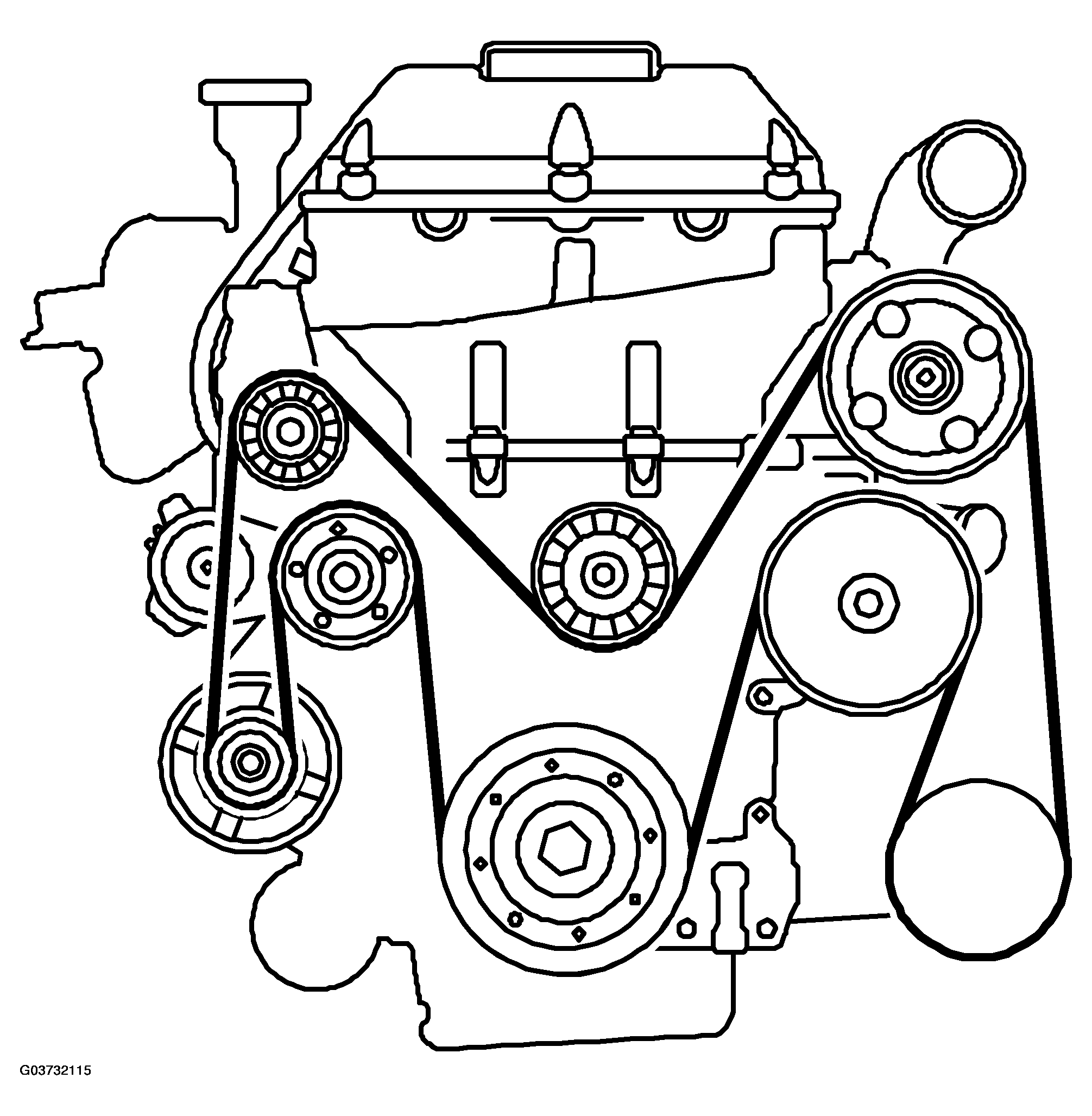

Fig 1: Viewing Drive-Belt Tensioner
G03732115Courtesy of SAAB-SCANIA OF AMERICA, INC.

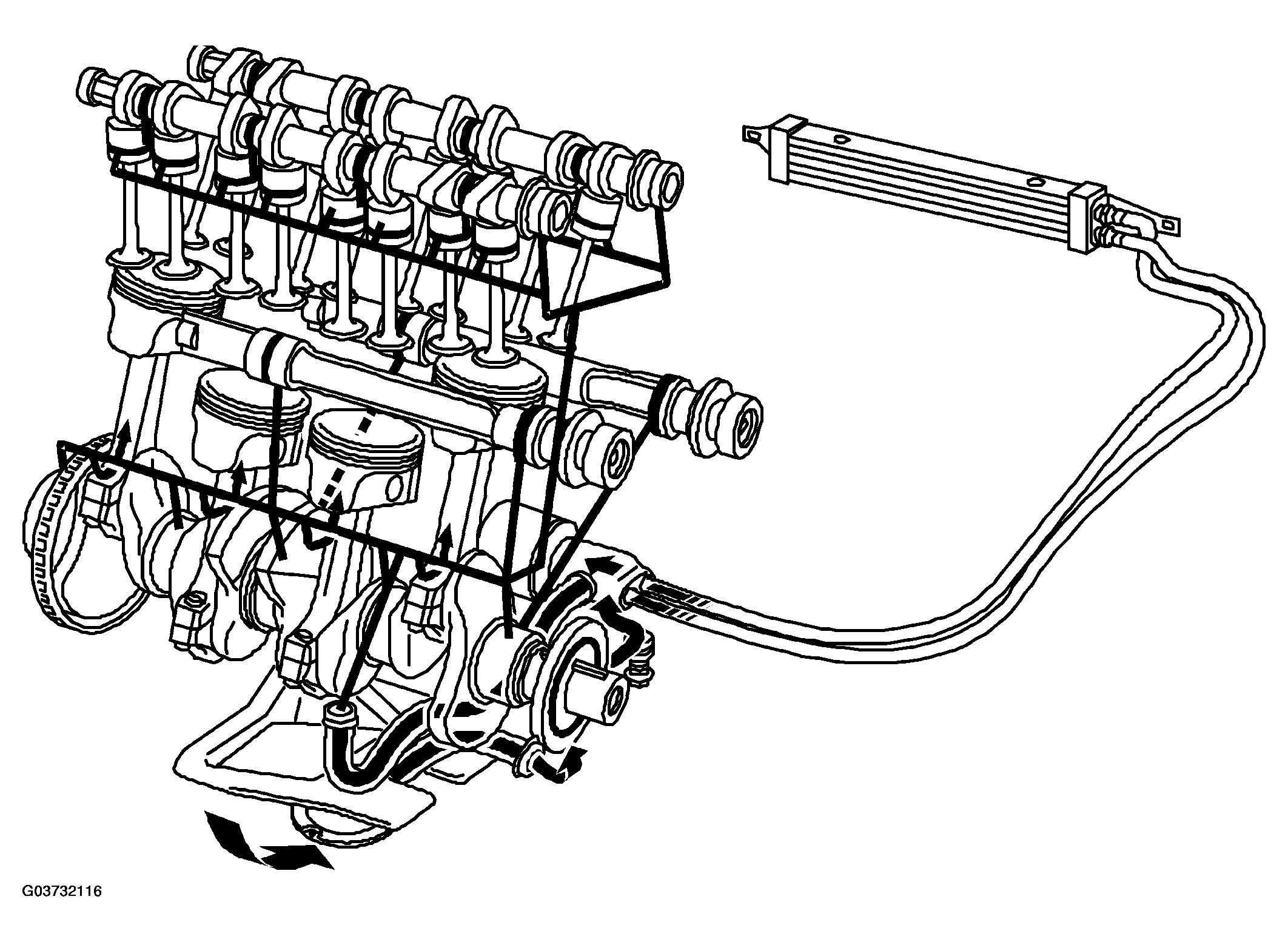

Fig 2: Viewing Lubricating System
G03732116Courtesy of SAAB-SCANIA OF AMERICA, INC.
LUBRICATING SYSTEM GENERAL DATA

Tension when checking 315 +/- 25 N (70.4 +/- 5.6 lbf)
