To fit

  1. Fit the engine mounting (and brace screw, manual only).

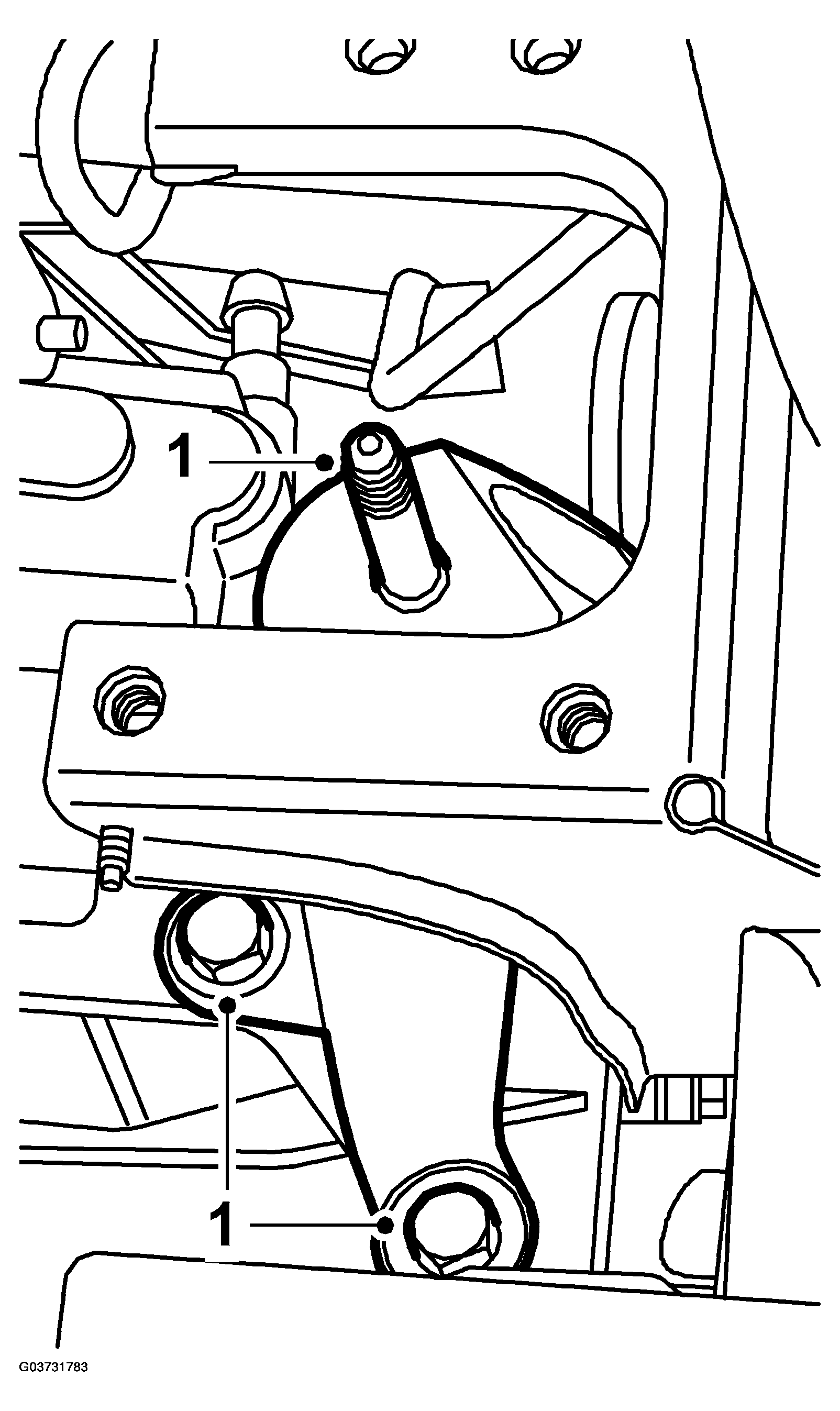

    Fig 1: Illustration For Step 1
    G03731783Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Tightening torque, man. 47 Nm (35 lbf ft)

    Tightening torque, aut. 84 Nm (62 lbf ft)

    Tightening torque, engine mounting brace 63 Nm (46 lbf ft)

  2. Fit the clutch hydraulic hose to its fastening.

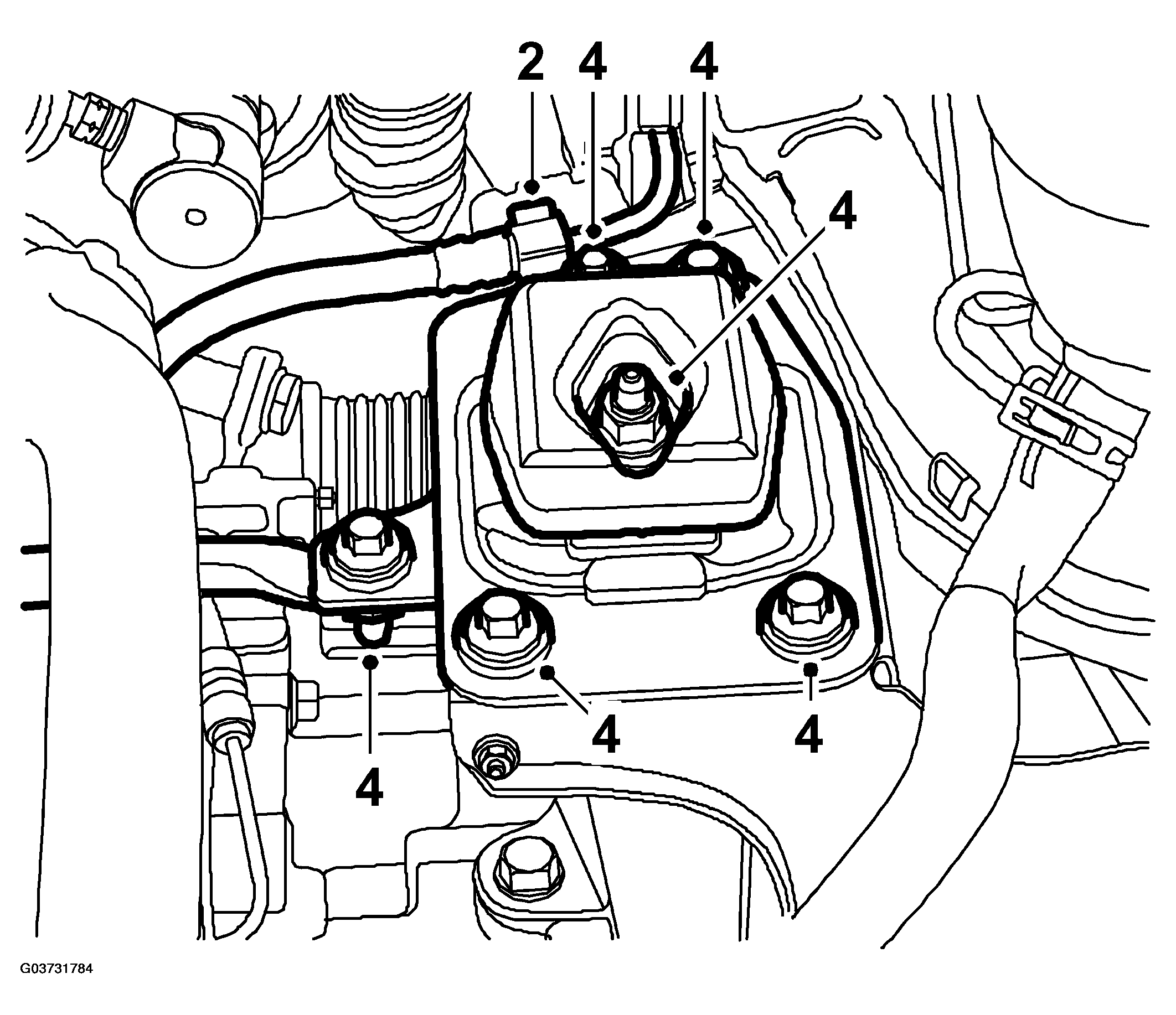

    Fig 2: Illustration For Steps 2-4
    G03731784Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the engine pad locating bolt and make sure the center bolt is in the center of the engine pad without being pulled to one side.
  4. Tighten the remaining bolts and the center nut

    Tightening torque bolts 40 Nm +45° (35 lbf ft +45°)

    Tightening torque, nut 84 Nm (62 lbf ft)

  5. Take the weight off the engine and remove the lifting beam.
  6. Replace the fuse box, battery and battery tray.

    Set the correct time on the clock. Calibrate the ACC.

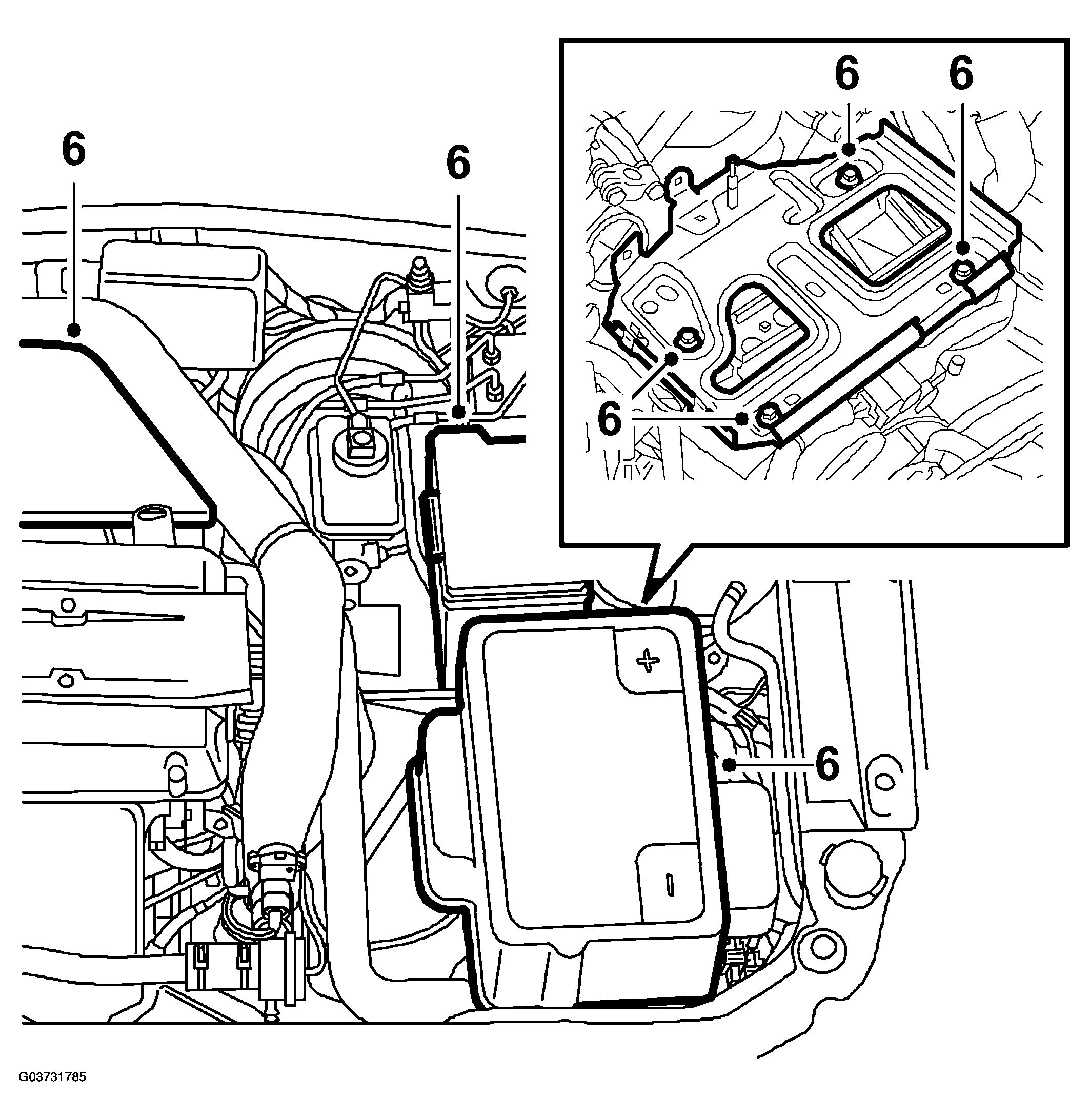

    Fig 3: Illustration For Step 6
    G03731785Courtesy of SAAB-SCANIA OF AMERICA, INC.
