Home >> Saab >> 2004 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Component location >> Switch, immobilizer, automatic (77)

Switch, immobilizer, automatic (77)

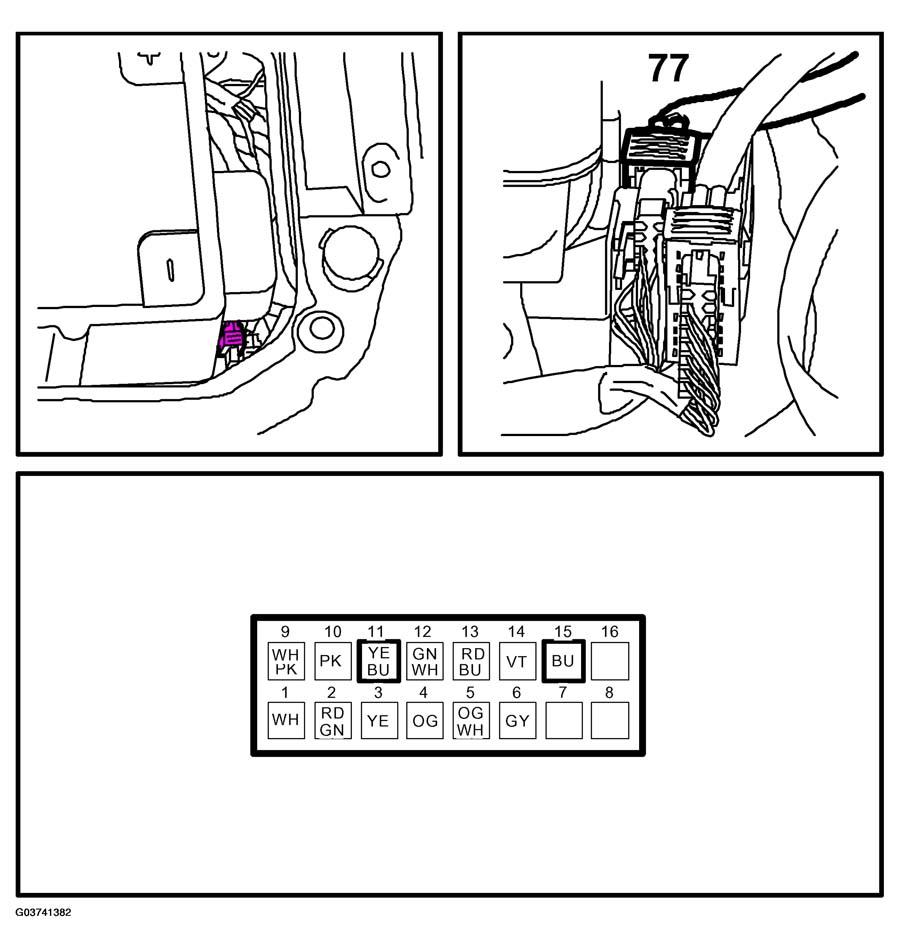

Fig 1: Identifying Switch, Immobilizer, Automatic Location
G03741382Courtesy of SAAB-SCANIA OF AMERICA, INC.
