DICE control module (628)

LHD

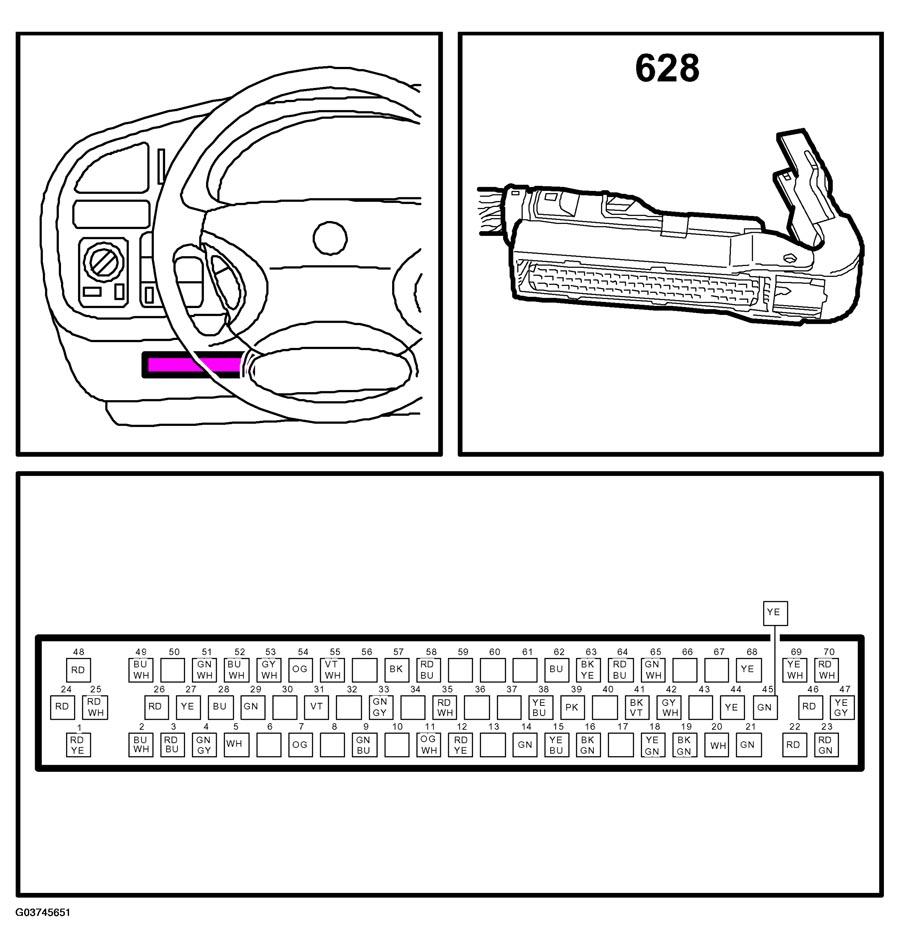

Fig 1: Identifying DICE Control Module (628) Terminals LHD
G03745651Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHD

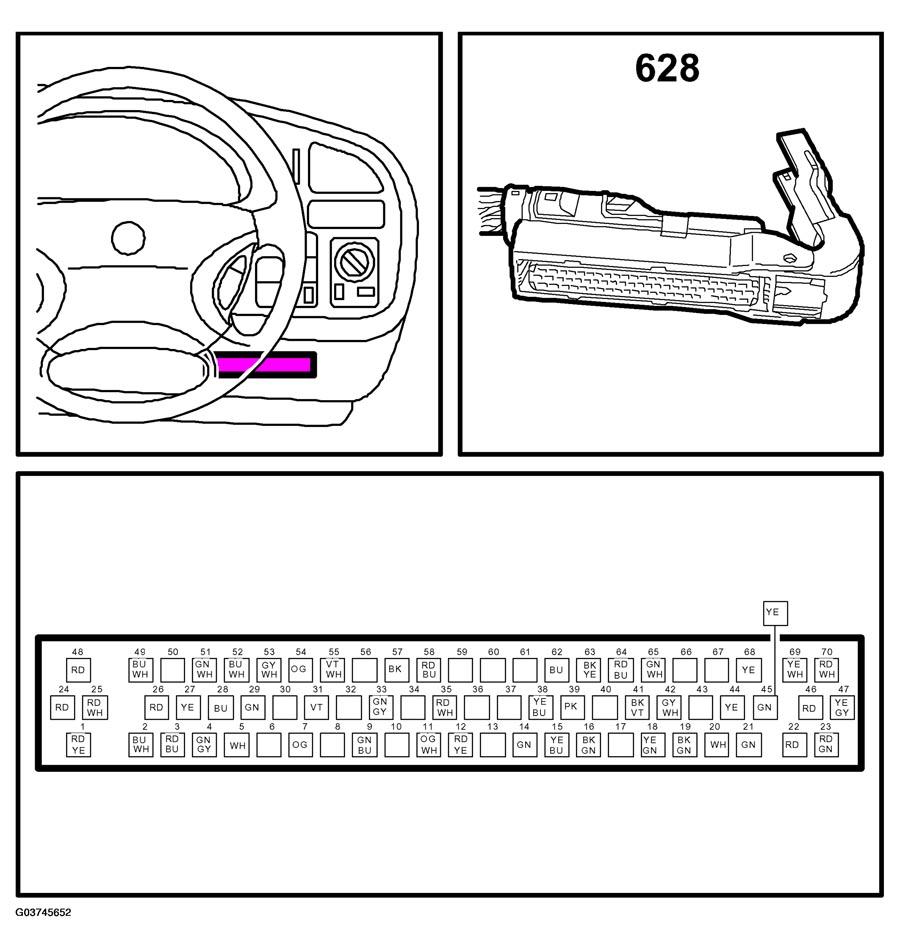

Fig 2: Identifying DICE Control Module (628) Terminals RHD
G03745652Courtesy of SAAB-SCANIA OF AMERICA, INC.
