Connector H10-15
Connector H10-15
4D

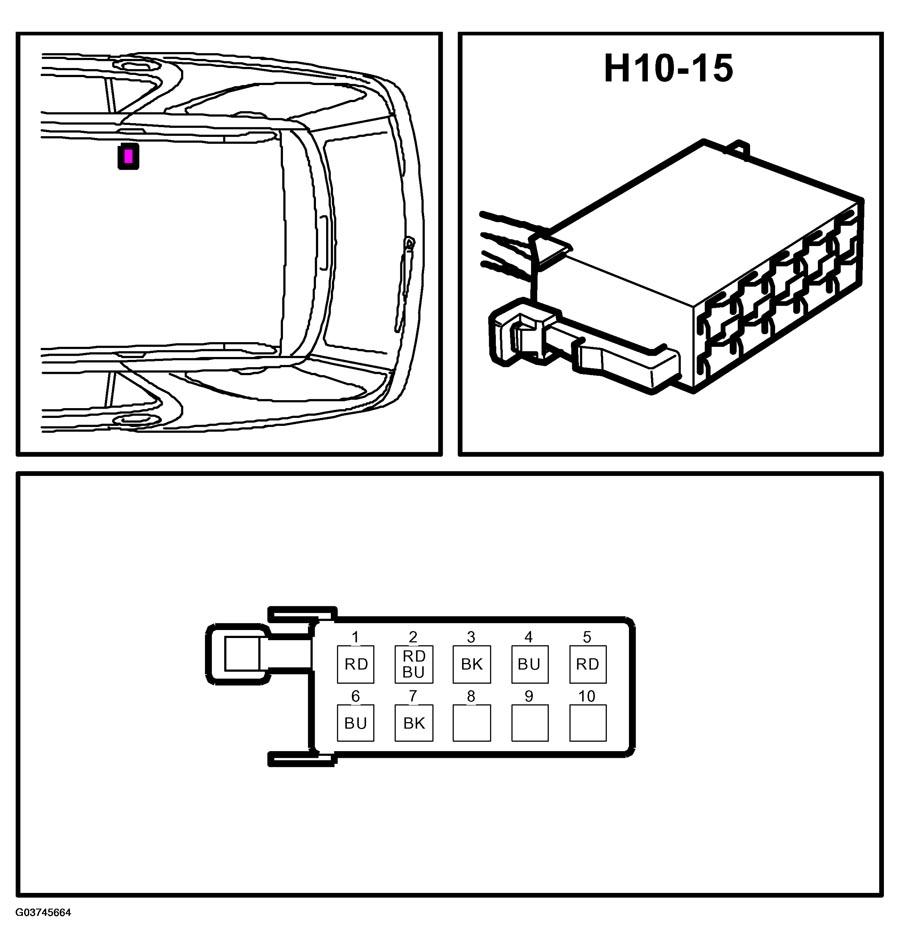

Fig 1: Identifying Connector H10-15 Pin Out (4D)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
5D

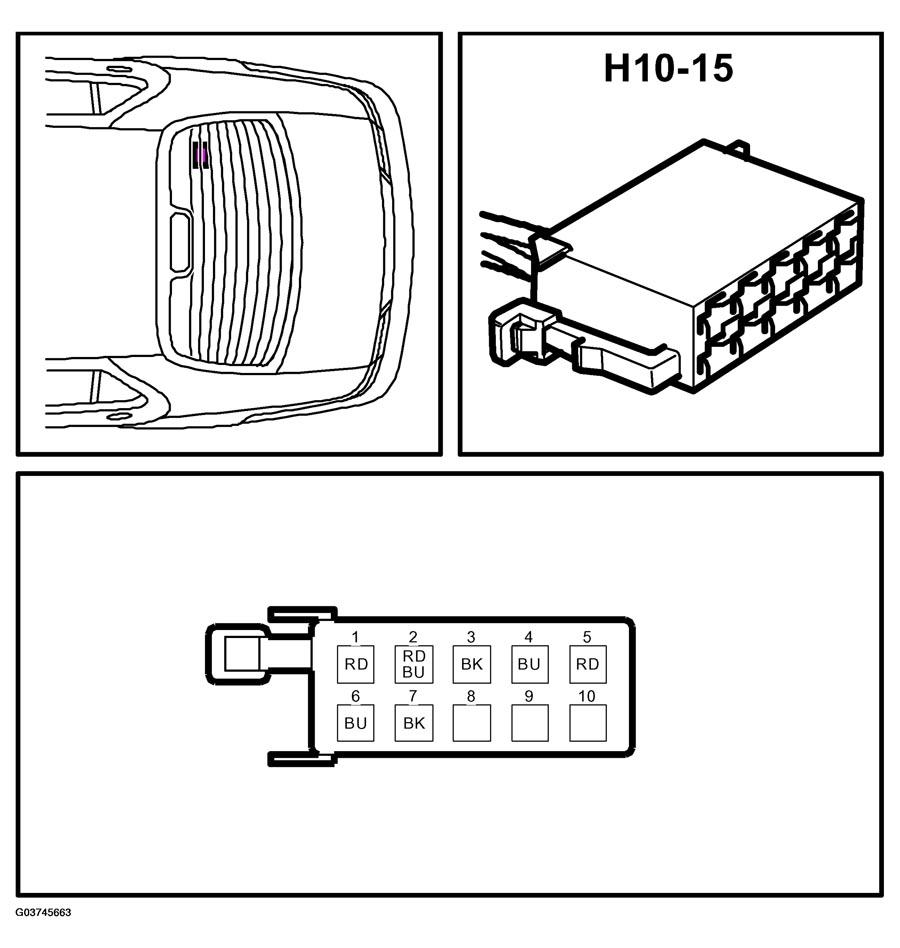

Fig 2: Identifying Connector H10-15 Pin Out (5D)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
