To remove

  1. Remove the center console, see TO REMOVE .

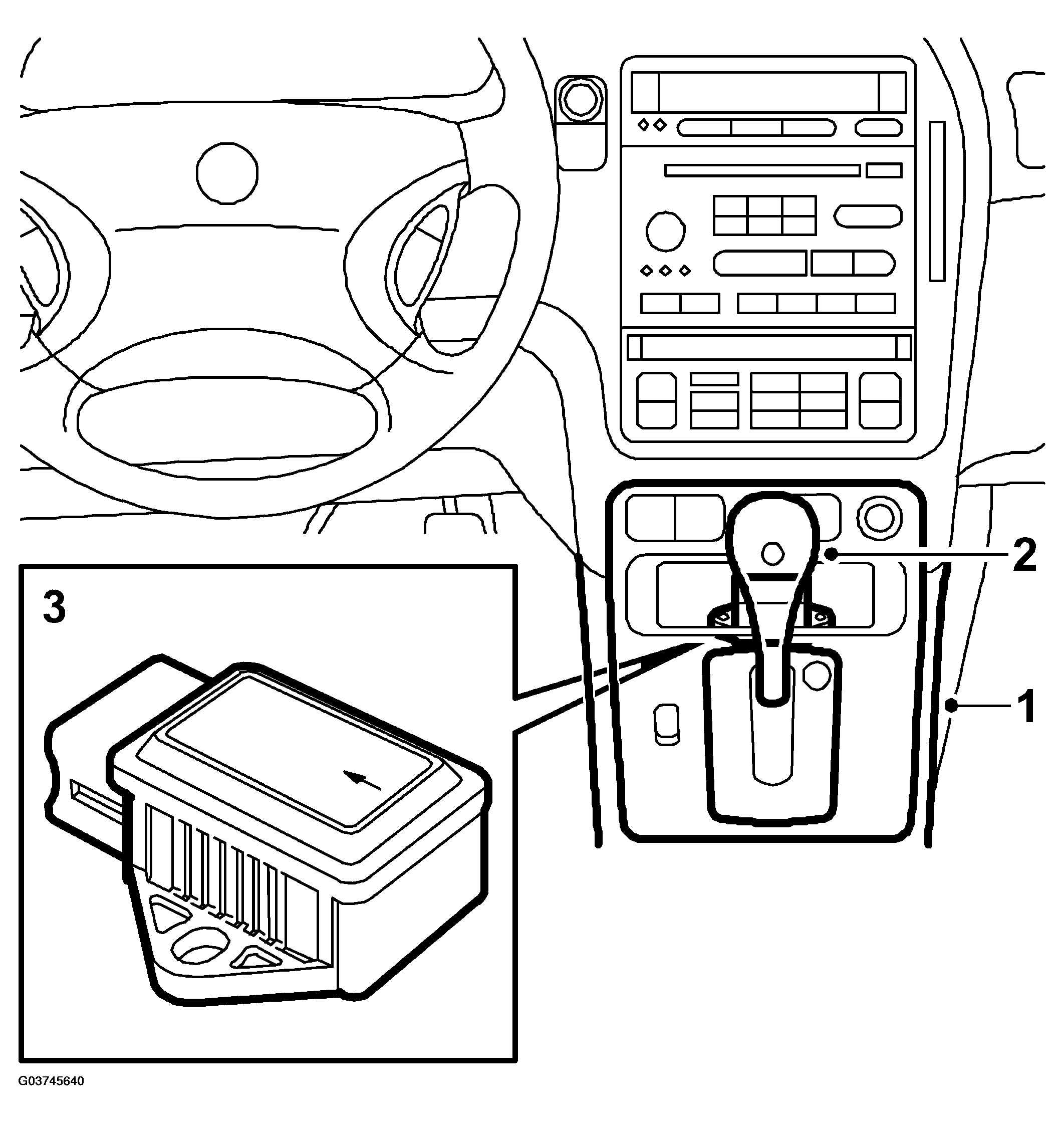

    Fig 1: Illustration For Step 1-3
    G03745640Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Manual gearbox:  Remove the gear lever housing, see TO REMOVE .

    Automatic transmission:  Remove the selector lever housing, see TO REMOVE .

  3. Remove the gyro sensor. Use a large screwdriver to pry aside the air duct slightly to access the left-hand screw.
  4. Unplug the connector from the gyro sensor.
    NOTE: The connector has a locking device that must be released.
