To remove

  1. Unplug the connector from the pressure sensor.
    NOTE: The connector has a locking device that must be released.

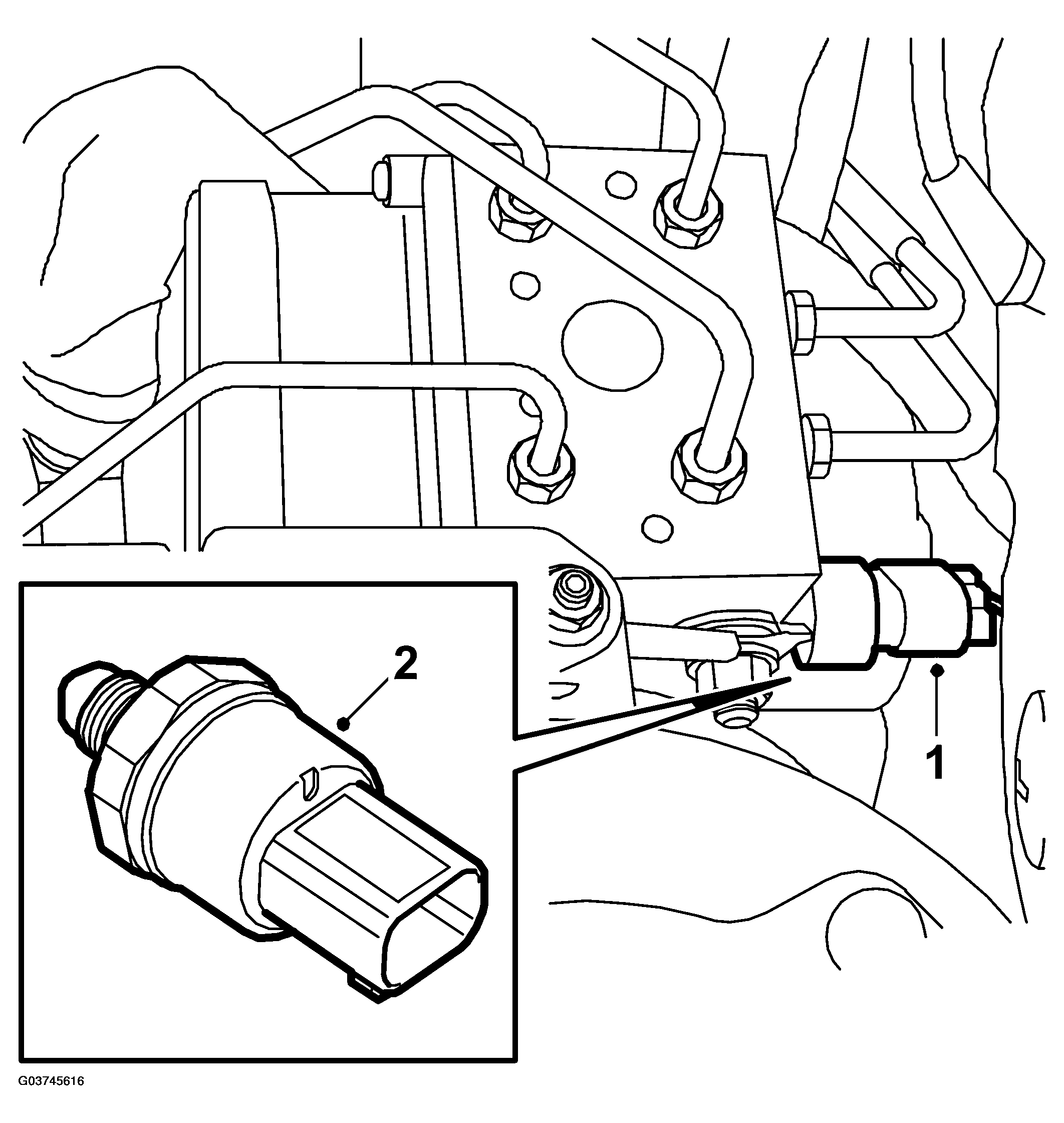

    Fig 1: Illustration For Step 1-2
    G03745616Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the pressure sensor using a 24 mm open-ended spanner.
