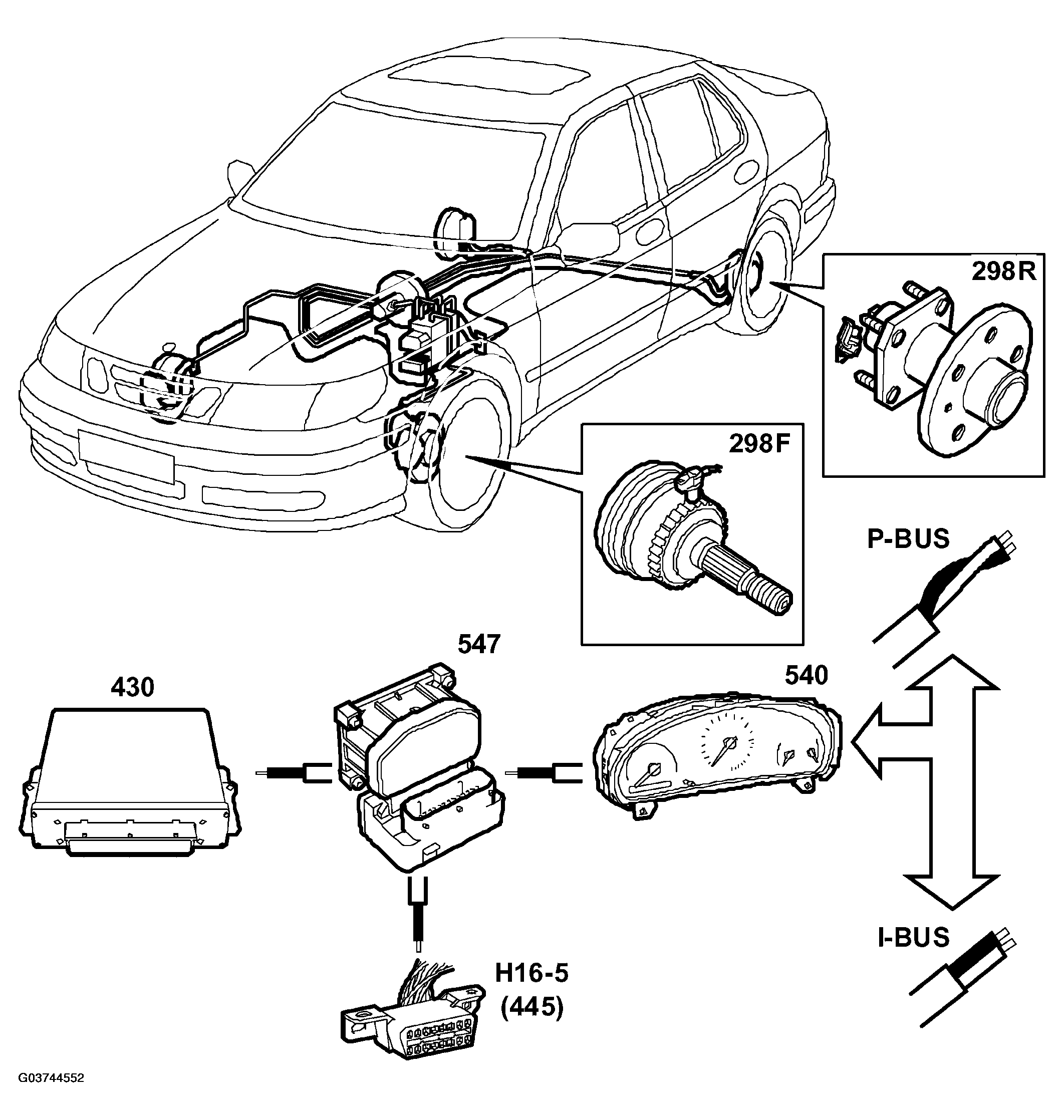

ABS 5.4: System overview
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Rear-wheel sensors (298)
- Front-wheel sensors (298)
- Hydraulic unit, complete with control module, valve block and return pump (547)
- Control module, Saab Trionic (430)
- Main instrument unit, MIU (540)
- Data link (445)
