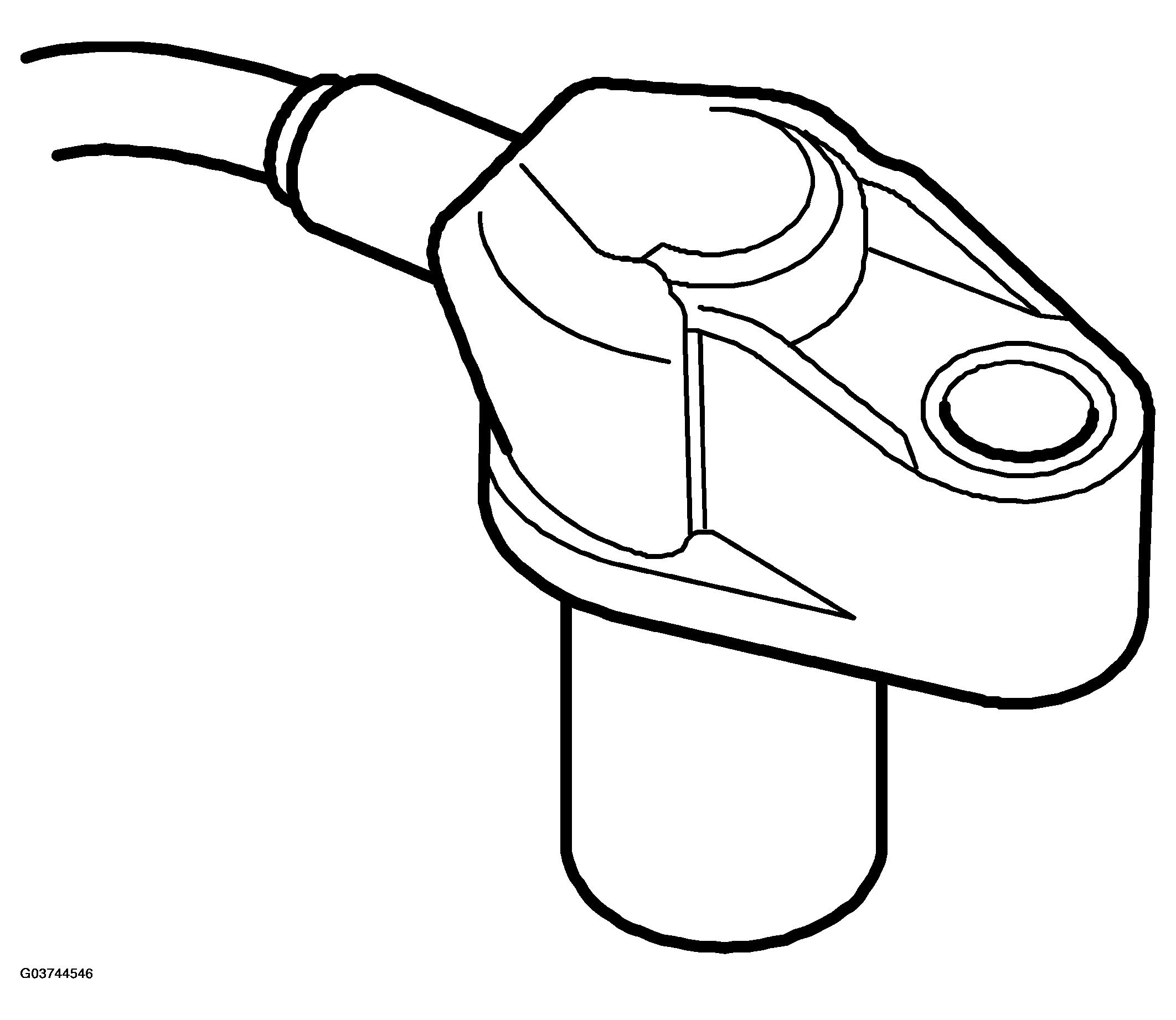

Front-wheel sensors
Courtesy of SAAB-SCANIA OF AMERICA, INC. FRONT-WHEEL SENSORS TECHNICAL DATA
| Operating voltage, min. |
120 mV AC at 2.75 km/h |
| Operating voltage, max. |
100 V AC at 280 km/h |
| Resistance |
1600 +/-160 O at +20°C |
| Number of teeth |
29 |
| Gap, wheel sensor-toothed wheel |
0.2-1.3 mm (fixed) |
