Home >> Saab >> 2004 >> 9-5 Linear, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs 5.4 >> Fault diagnosis, fault codes >> C1376: Wheel Sensor Front Right. Signal Incorrect >> Notes

C1376: Wheel Sensor Front Right. Signal Incorrect: Notes

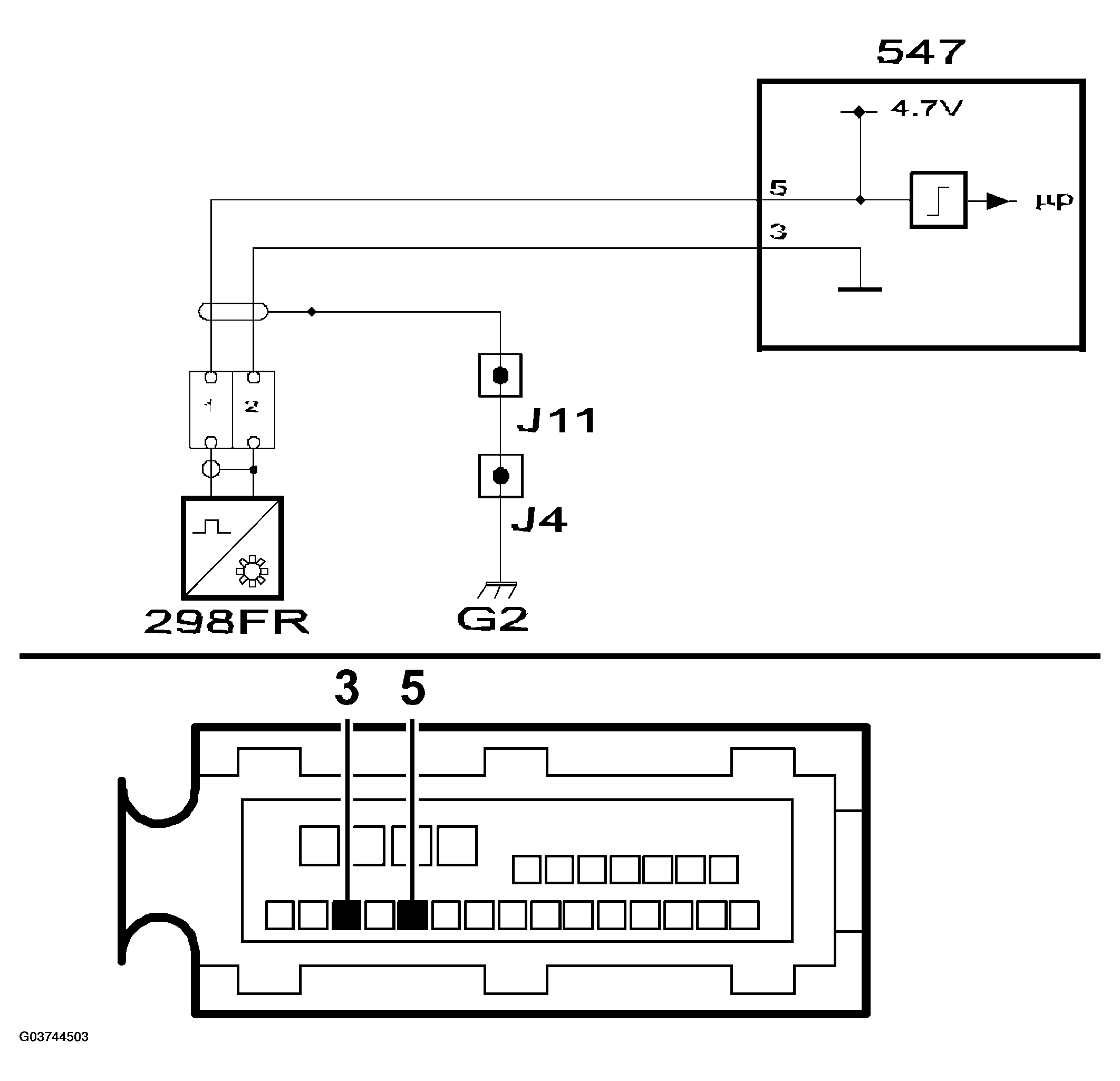

Fig 1: Circuit Diagram - Wheel Sensor Front Right (Signal Incorrect)

G03744503

Courtesy of SAAB-SCANIA OF AMERICA, INC.
