Ventilated front seat: Notes

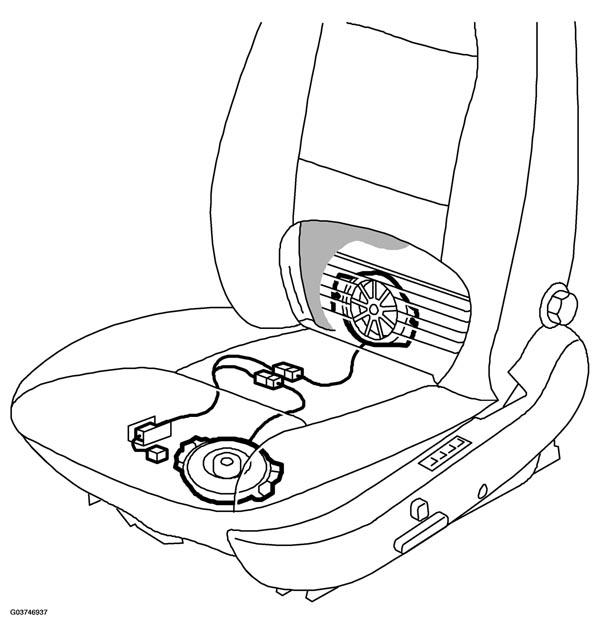

Fig 1: Identifying Ventilated Front Seat

Courtesy of SAAB-SCANIA OF AMERICA, INC.

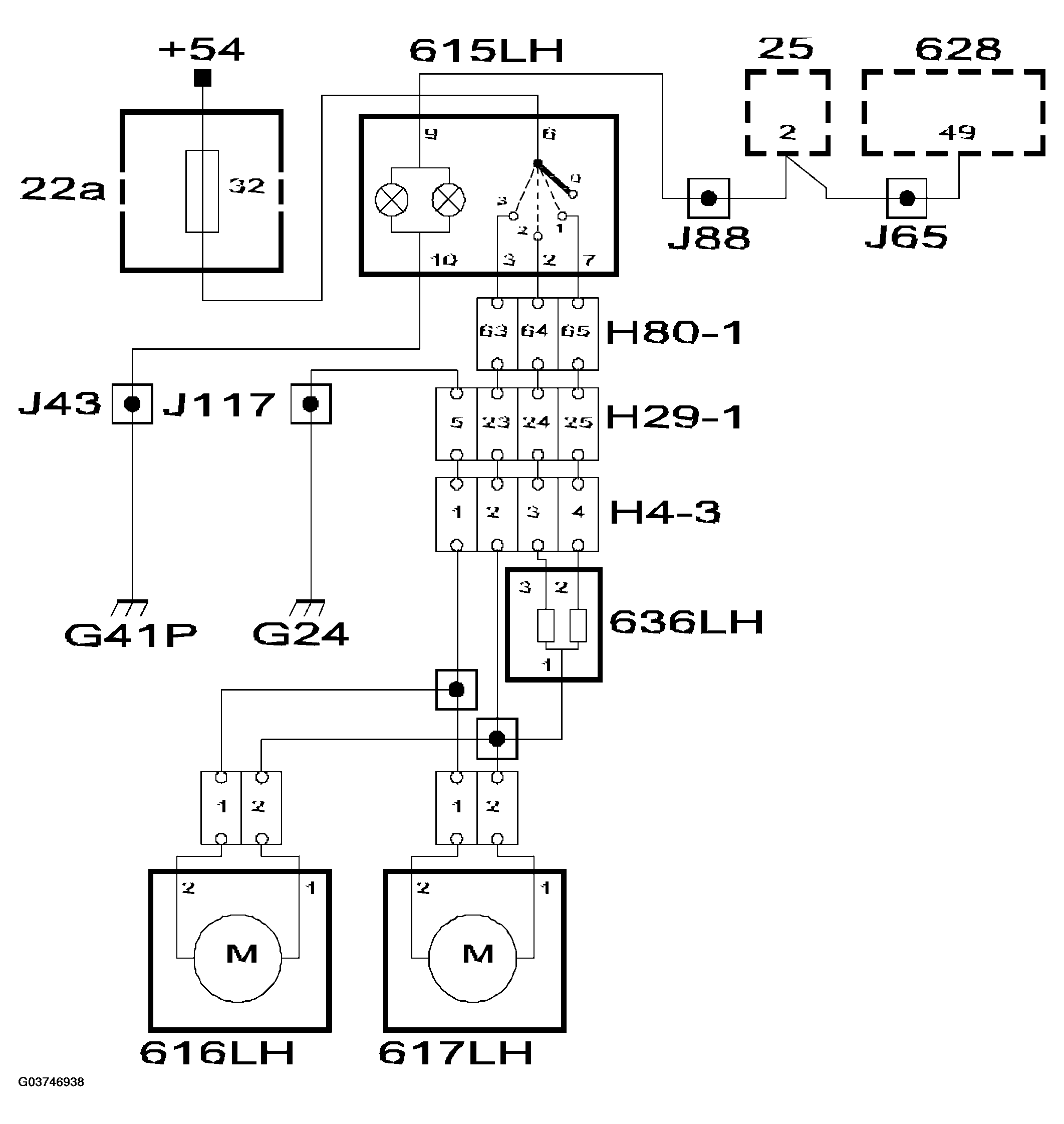

Fig 2: Circuit Diagram - Ventilated Front Seat

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Seating ventilation is available as an option on the electrically adjustable front seat in the Saab 9-5. The system consists of fans in the seat and backrest cushions which draw air and moisture through perforations in the seat and backrest.

The seat fan is mounted on the seat base. The backrest fan is mounted on the lumbar support in the backrest frame.

Ventilated front seats have perforated leather upholstery and foam cushions with punched holes. Air and moisture are drawn through passageways in the seat and backrest and down under the seat.
