System overview

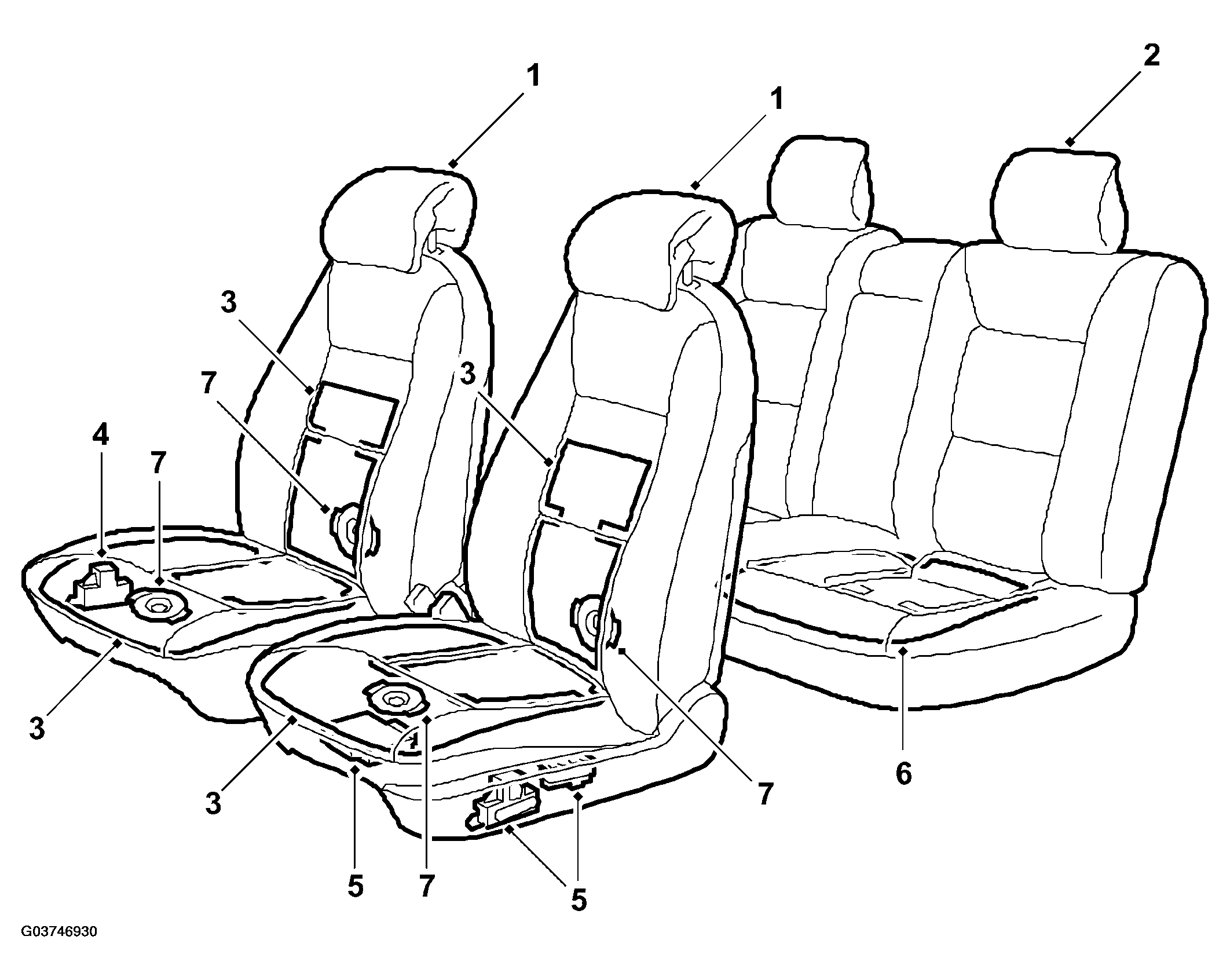

Fig 1: Illustration For Step 1-7
G03746930Courtesy of SAAB-SCANIA OF AMERICA, INC.

Seats

  1. Front seats
  2. Rear seat
  3. Heated front seat
  4. Electrically adjustable passenger seat
  5. PSM system
  6. Heated rear seat
  7. Ventilated front seat
