Electrically adjustable passenger seat: Notes

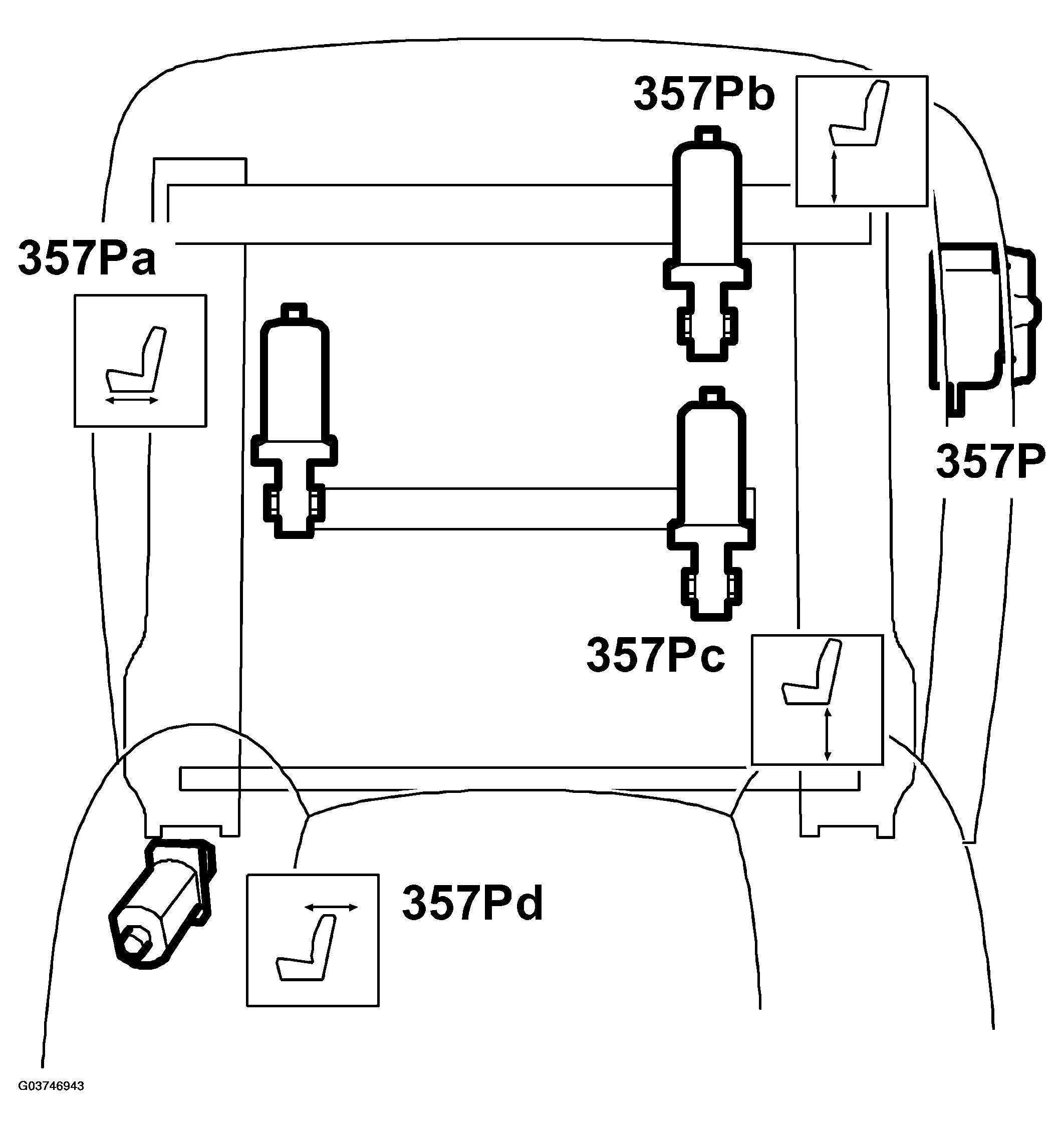

Fig 1: Identifying Mechanism Of Electrically Adjustable Passenger Seat

Courtesy of SAAB-SCANIA OF AMERICA, INC.

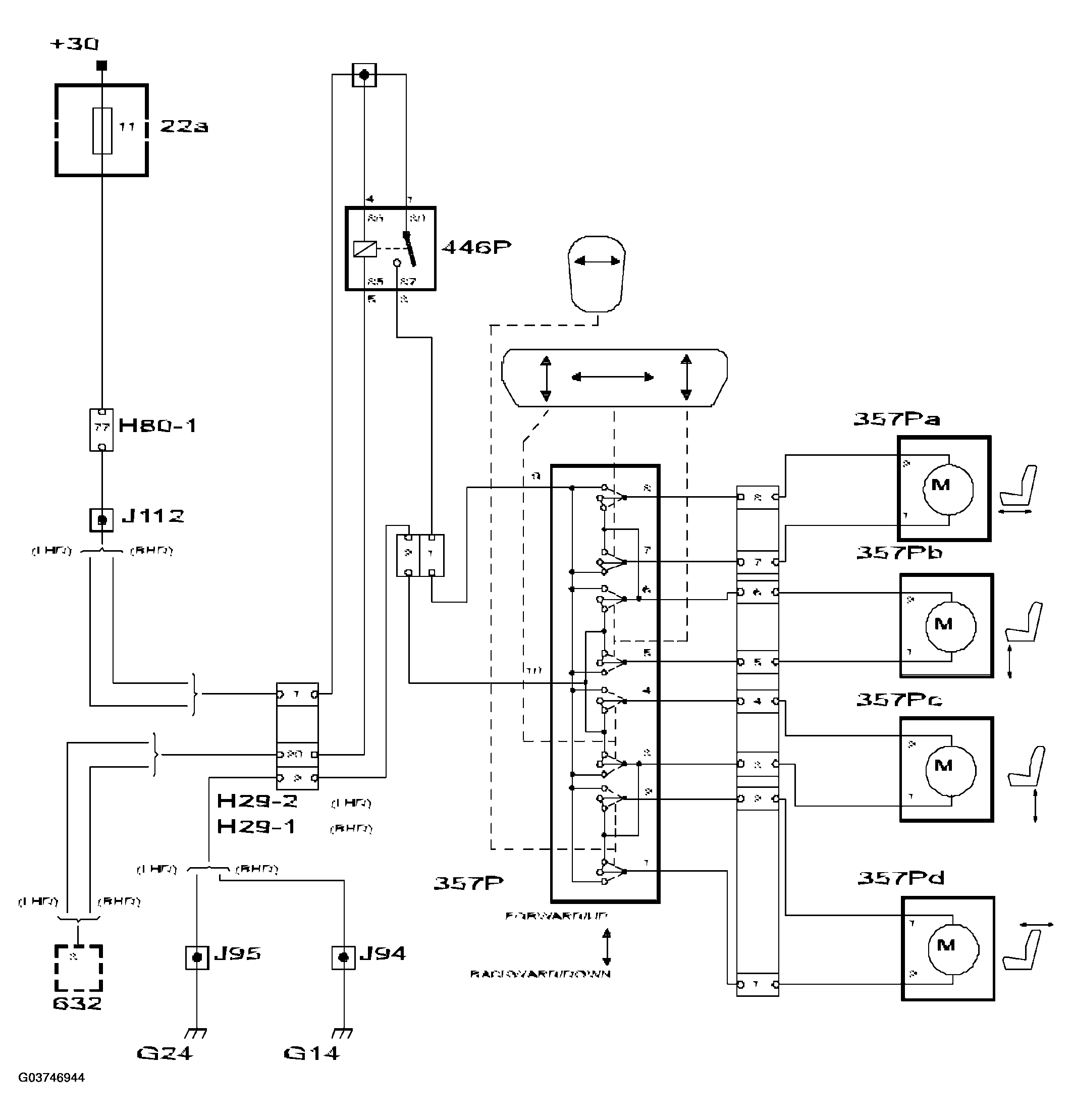

Fig 2: Circuit Diagram - Electrically Adjustable Passenger Seat

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The passenger seat is adjusted with a switch located on the upper seat side panel on the outside of the seat. Electric motors move the seat laterally, change the height front and back and change the inclination of the backrest.
