Cars with a diesel engine

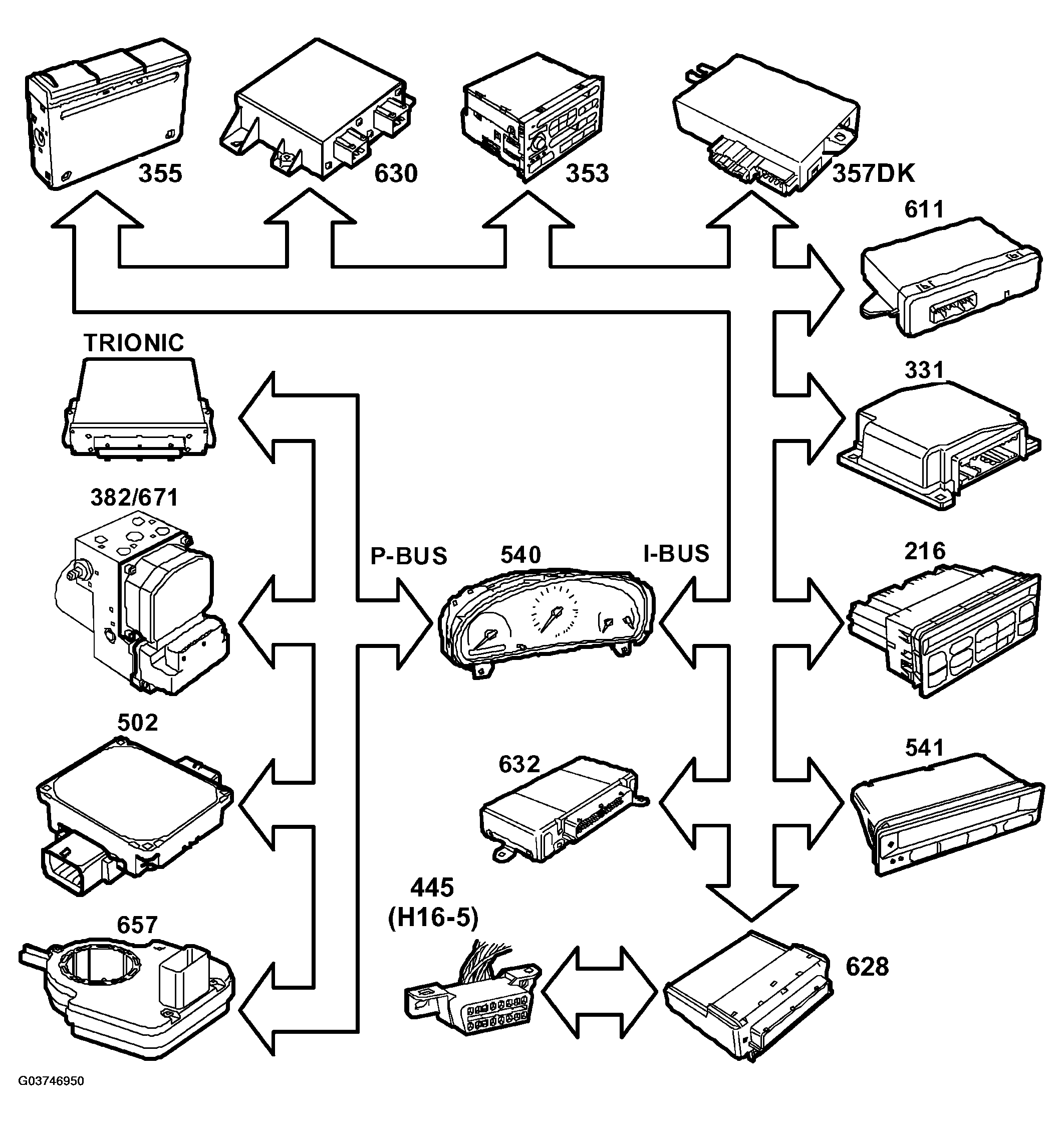

Fig 1: Control Module Bus Inputs (Cars With Diesel Engine)

G03746950

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TWICE (632)
DICE (628)
Diagnostic communication (445)
