Grounding point G14
>>
Notes
Grounding point G14: Notes

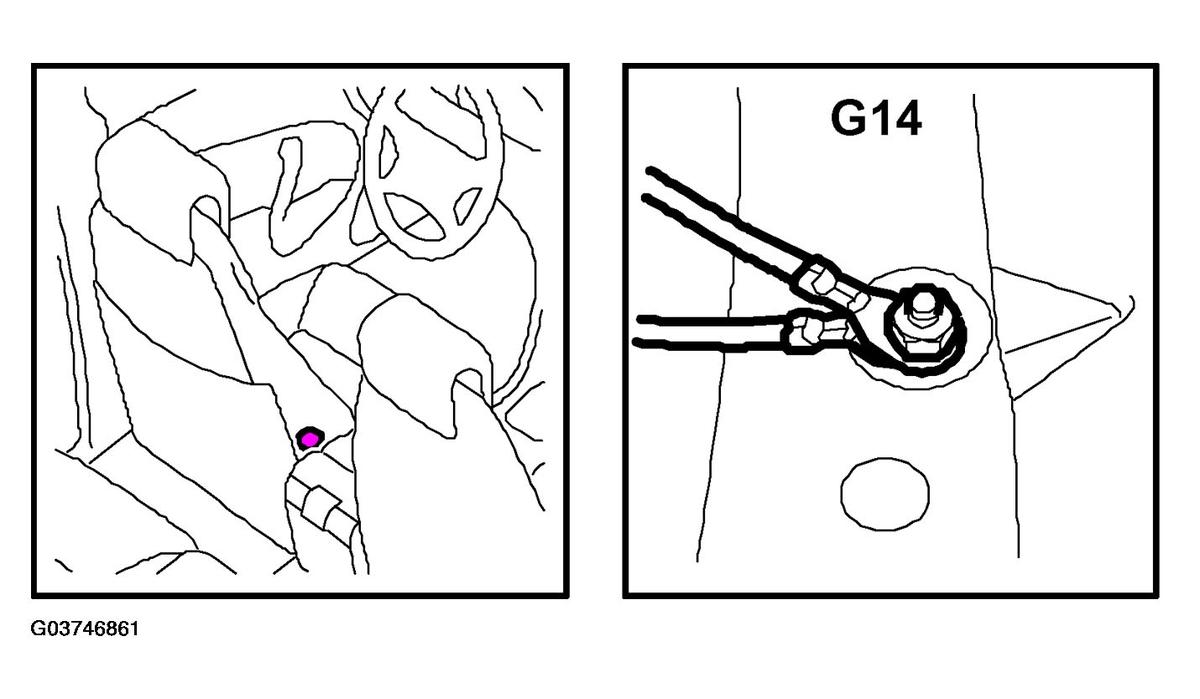

Fig 1: Identifying Grounding Point G14
Courtesy of SAAB-SCANIA OF AMERICA, INC.

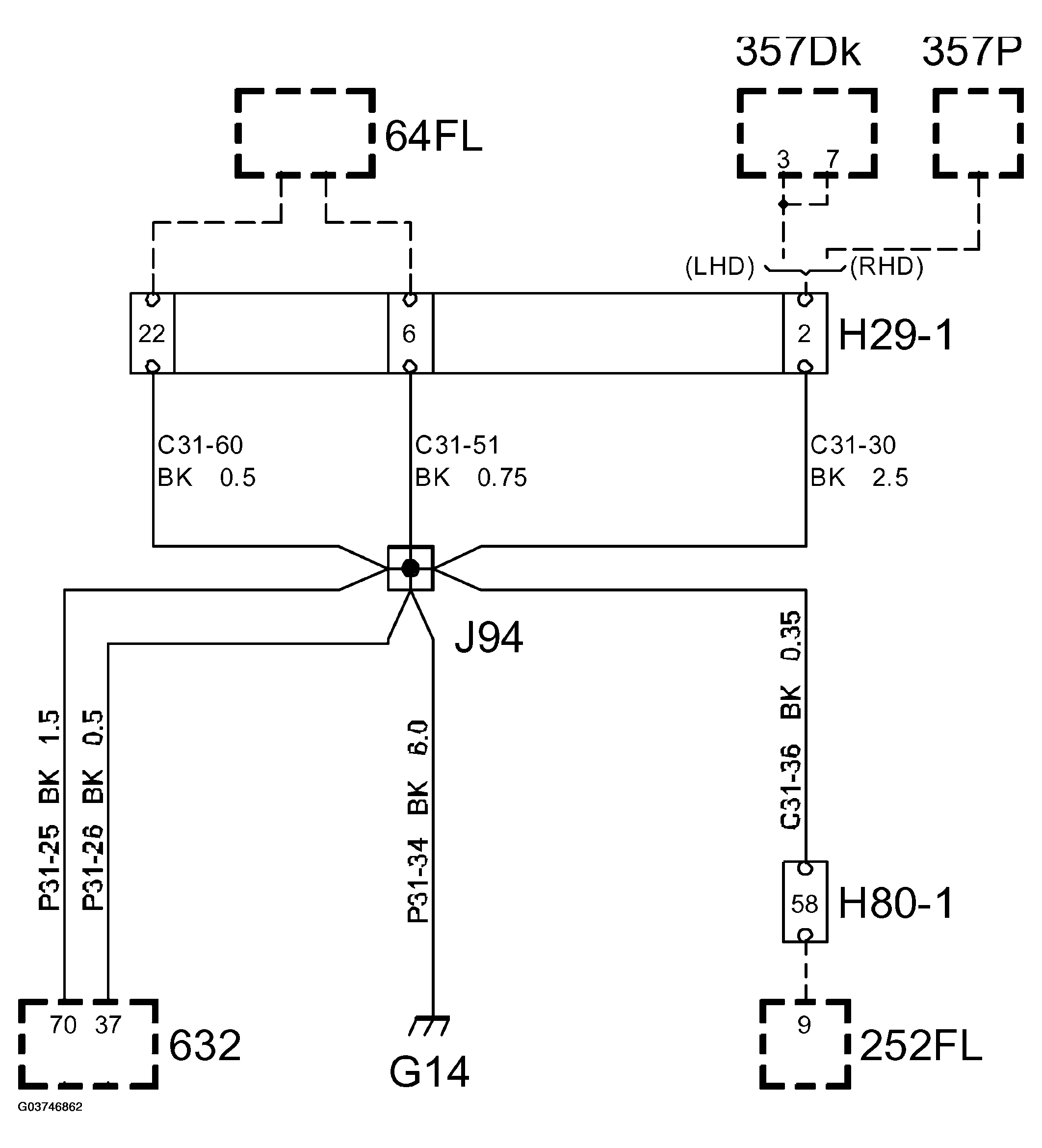

Fig 2: Grounding Point G14 Connection Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
