To remove

  1. Slide the seat to the forward position.

    If the seat cannot be operated in a fore and aft direction, EMERGENCY OPERATION  must be used so that it can be removed.

  2. Undo the rear of the seat, 2 bolts.
  3. Slide the seat backwards and undo the front 2 bolts.
  4. Tilt the seat back, snip the cable tie and unplug the 29-pin connector under the seat.

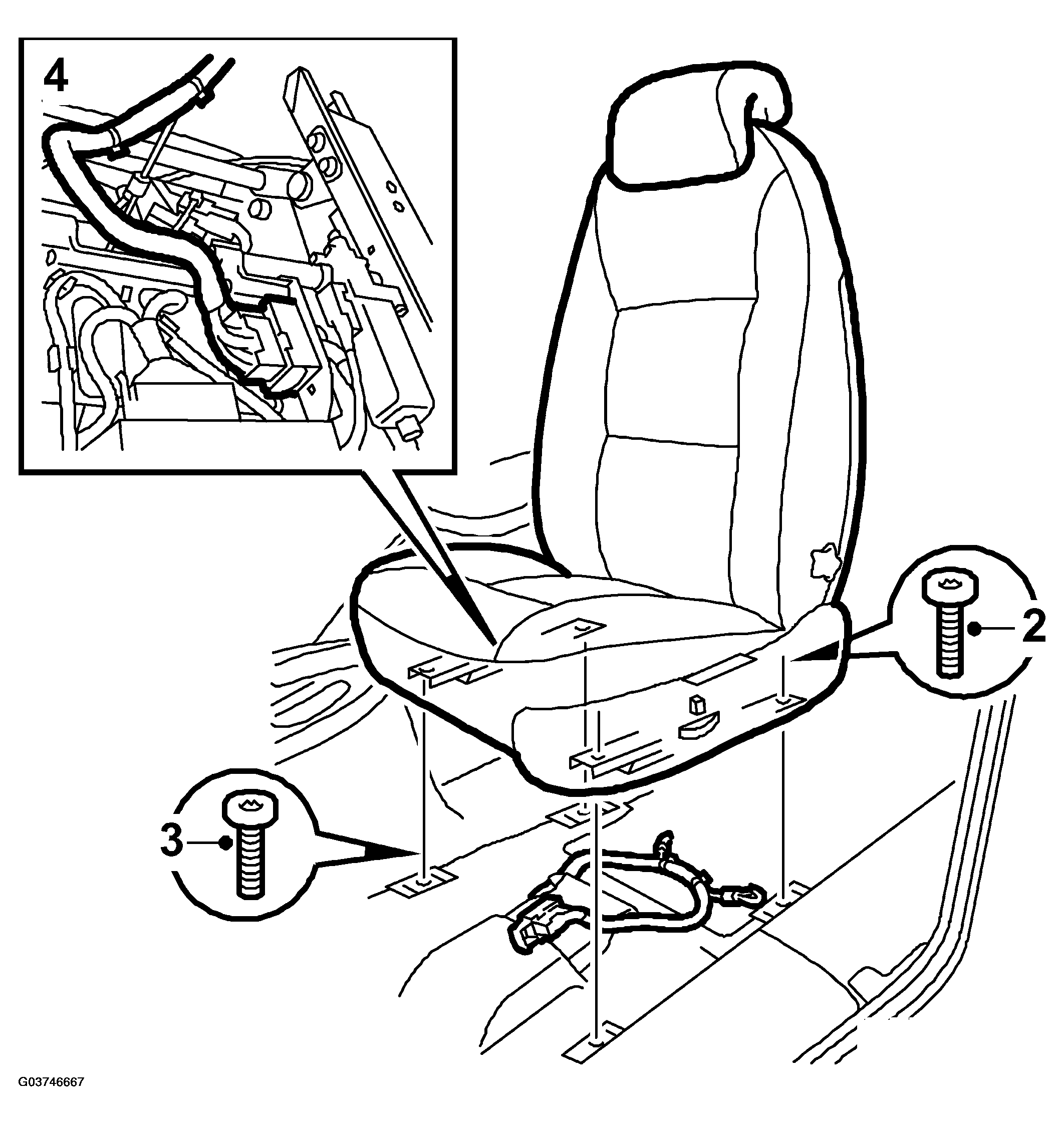

    5. Fig 1: Illustration for Step 2 To 4
    G03746667Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Lift out the seat and if necessary release the belt from the seat.

    Retain the covers under the seat rails.
