To remove

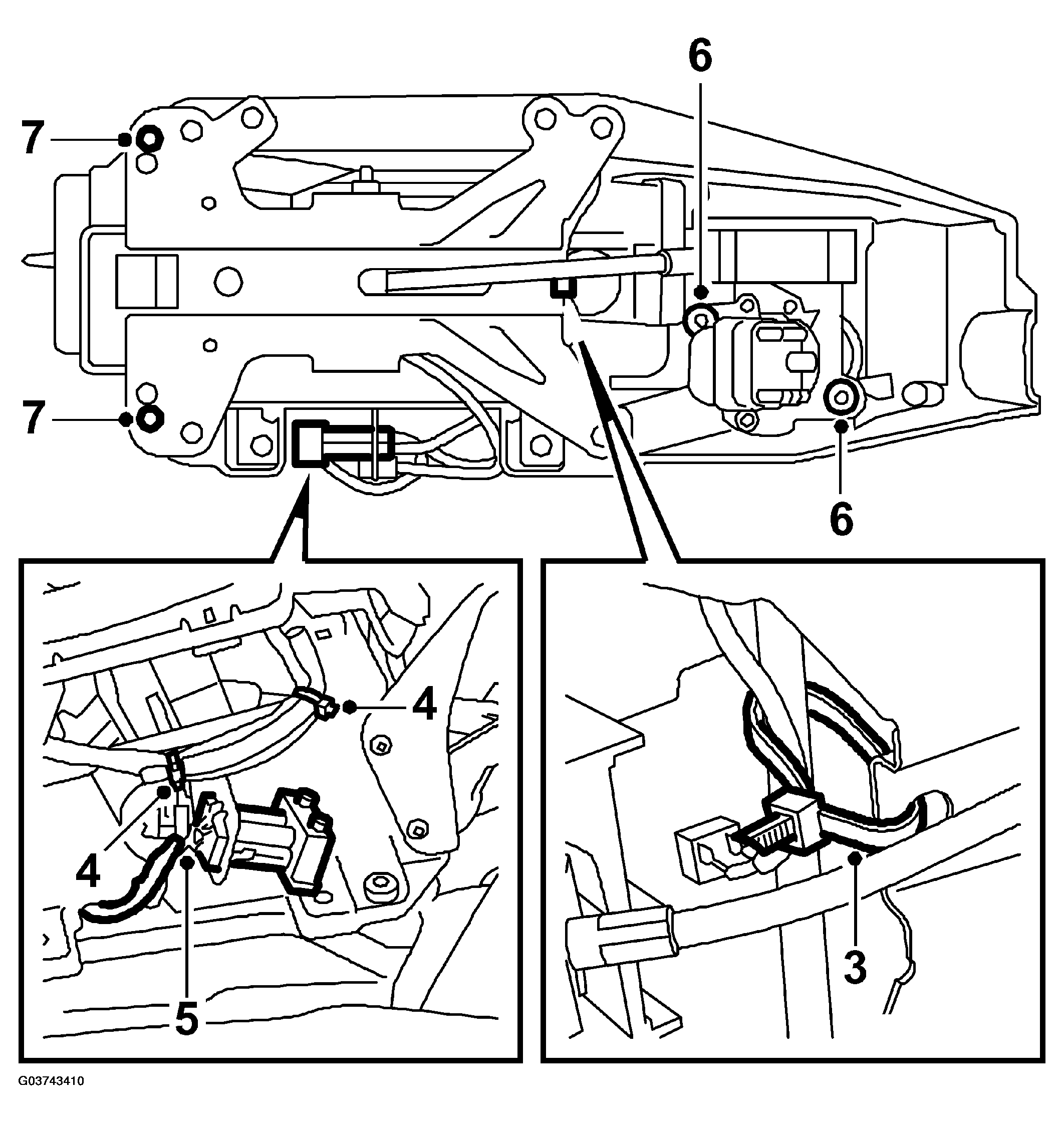

Fig 1: Illustration For Step 3-7
G03743410Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the selector lever housing, see SELECTOR LEVER HOUSING  .

    Remove the ignition switch lock cylinder, see IGNITION SWITCH CYLINDER  .

    IMPORTANT: When working on a dismantled selector lever housing, the selector lever should be protected with foam rubber or the like.
  2. Dismantle the selector lever casing, see SELECTOR LEVER CASING  .
  3. Snip the cable tie holding the lead for the lighting button in place.
  4. Snip the cable tie securing the lead for the electromagnet.
  5. Extract electromagnet pins 5 and 6 from the connector.
  6. Remove the shift indication display. Remove the screws securing the ignition switch.
  7. Drill out the rivets.
  8. Dismantle the selector lever housing.
  9. Remove the selector lever retaining bolt.

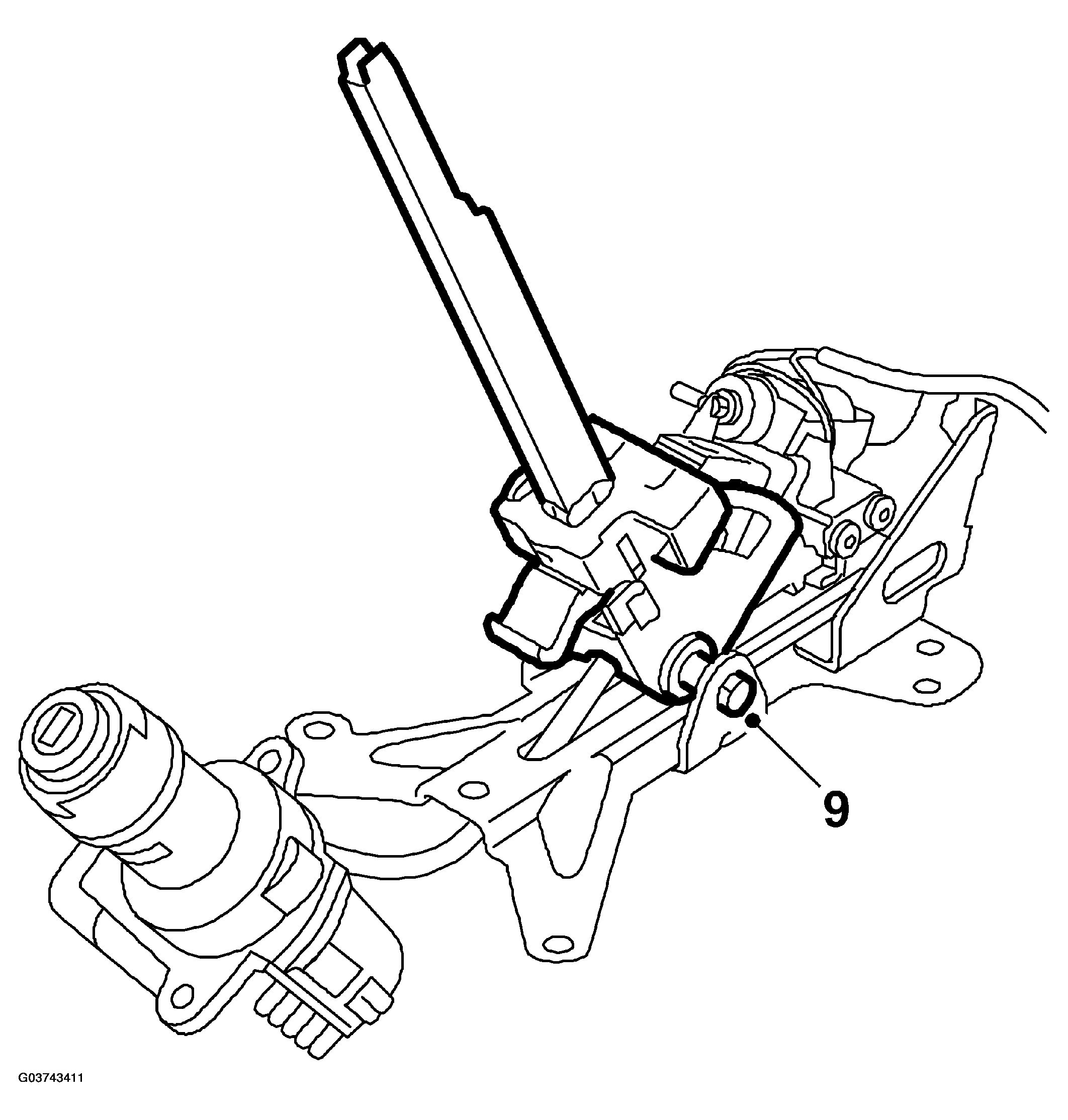

    Fig 2: Illustration For Step 9
    G03743411Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Remove the selector lever with holder from the base plate.
  11. Remove the lock washer and tap out the spacer sleeve.
  12. Detach the selector lever from the holder.
  13. Remove the expanding pin securing the cable ferrule.

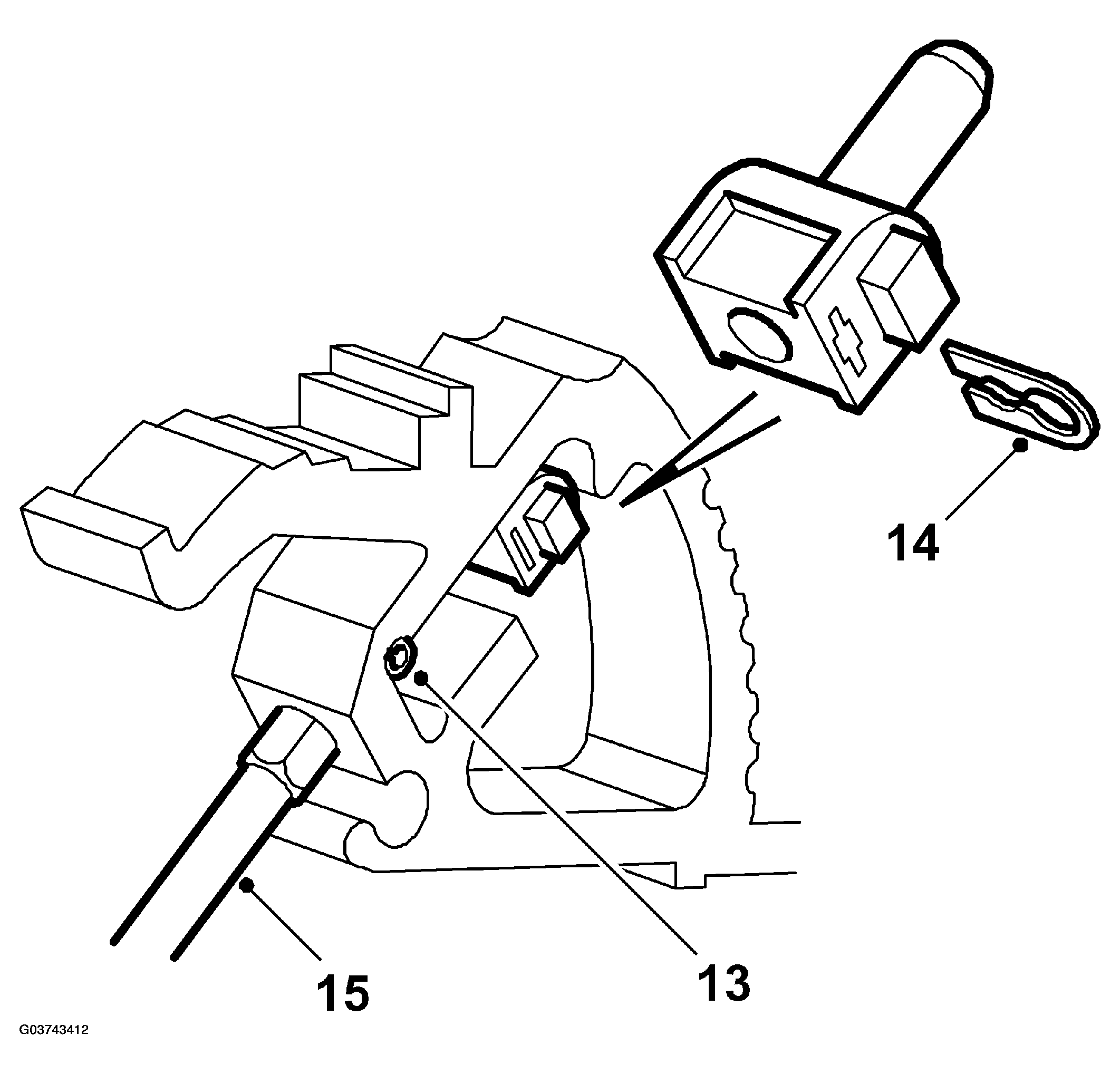

    Fig 3: Illustration For Step 13-15
    G03743412Courtesy of SAAB-SCANIA OF AMERICA, INC.
  14. Remove the clip from the locking pin.
  15. Withdraw the cable from the holder.
