Power flow, 3rd gear

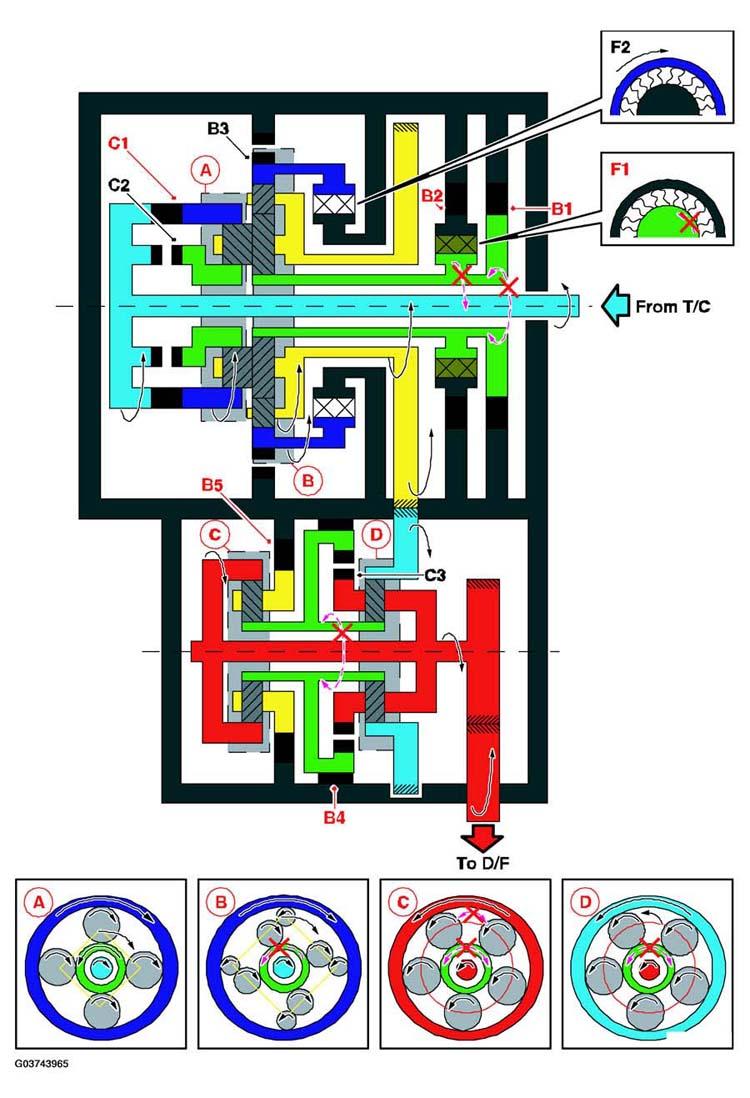

Fig 1: Identifying 3rd Gear Power Flow
G03743965Courtesy of SAAB-SCANIA OF AMERICA, INC.
GEAR POWER FLOW SEQUENCE

Position S1 S2 S3 S4 S5 C1 C2 C3 B1 B2 B3 B4 B5 F1 F2
D  3rd  OFF ON ON ON OFF ON OFF OFF ON ON OFF ON OFF ON OFF
