Power flow, 2nd gear

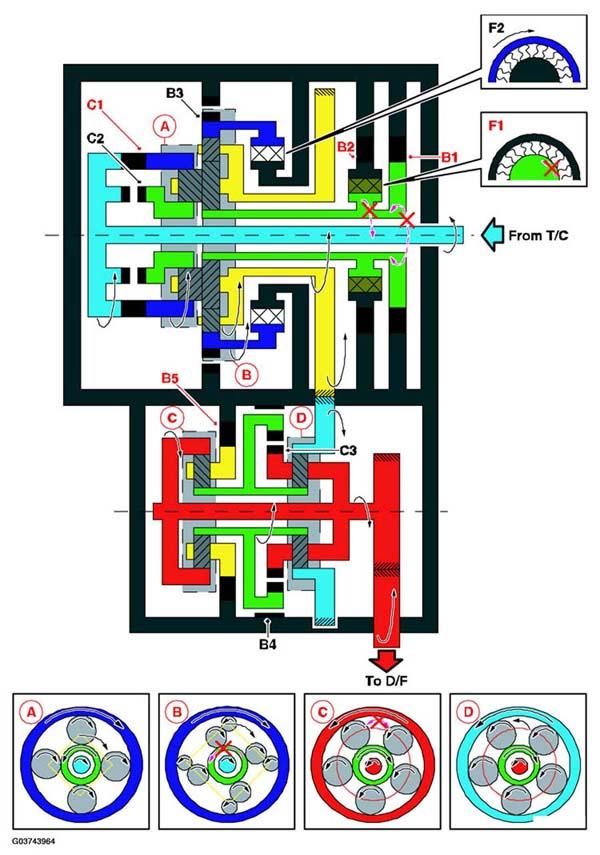

Fig 1: Identifying 2nd Gear Power Flow
G03743964Courtesy of SAAB-SCANIA OF AMERICA, INC.
GEAR POWER FLOW SEQUENCE

Position S1 S2 S3 S4 S5 C1 C2 C3 B1 B2 B3 B4 B5 F1 F2
D  2nd  OFF ON ON OFF OFF ON OFF OFF ON ON OFF OFF ON ON OFF
