Solenoid valve, Lock-up (SLU)

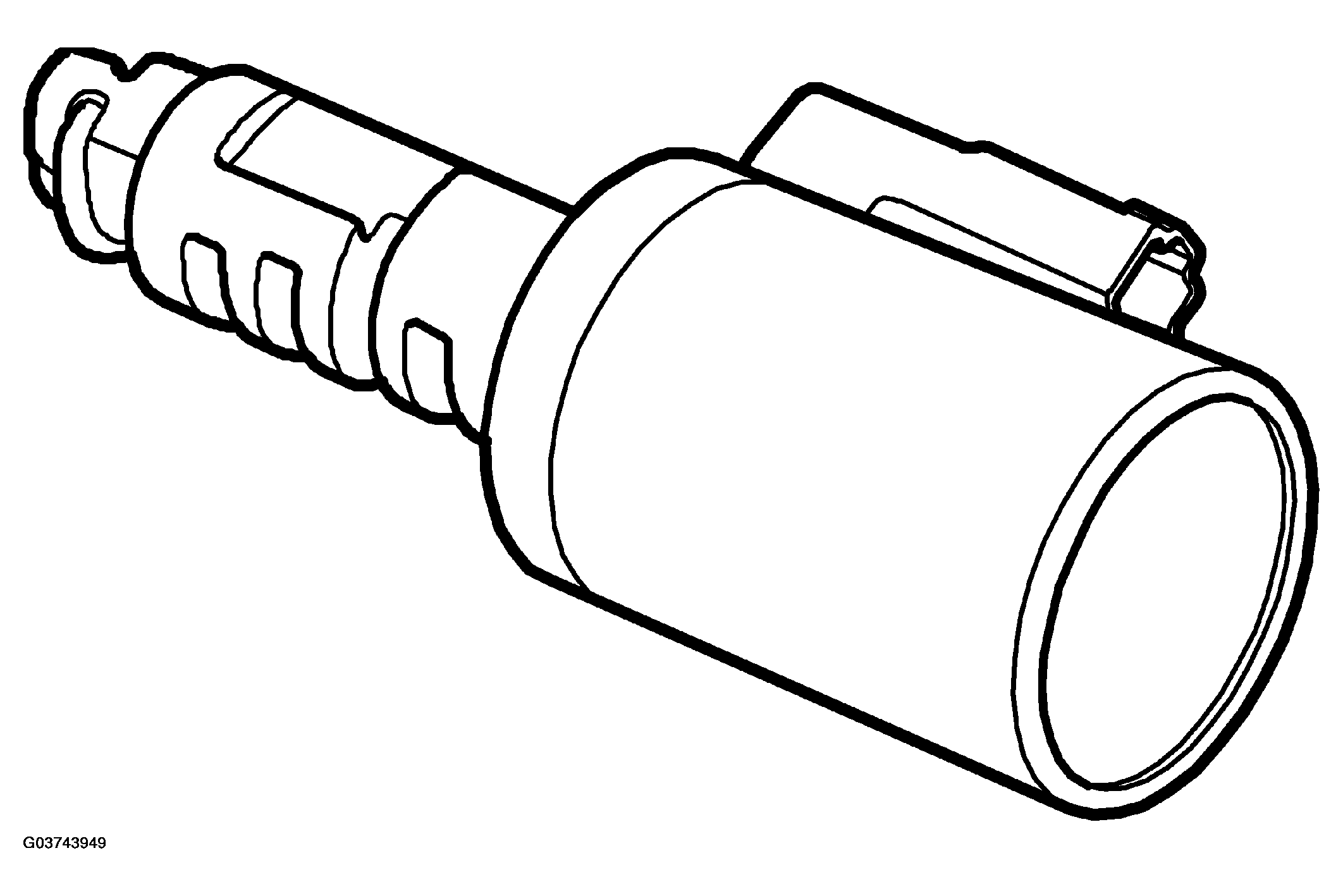

SLU
Courtesy of SAAB-SCANIA OF AMERICA, INC.

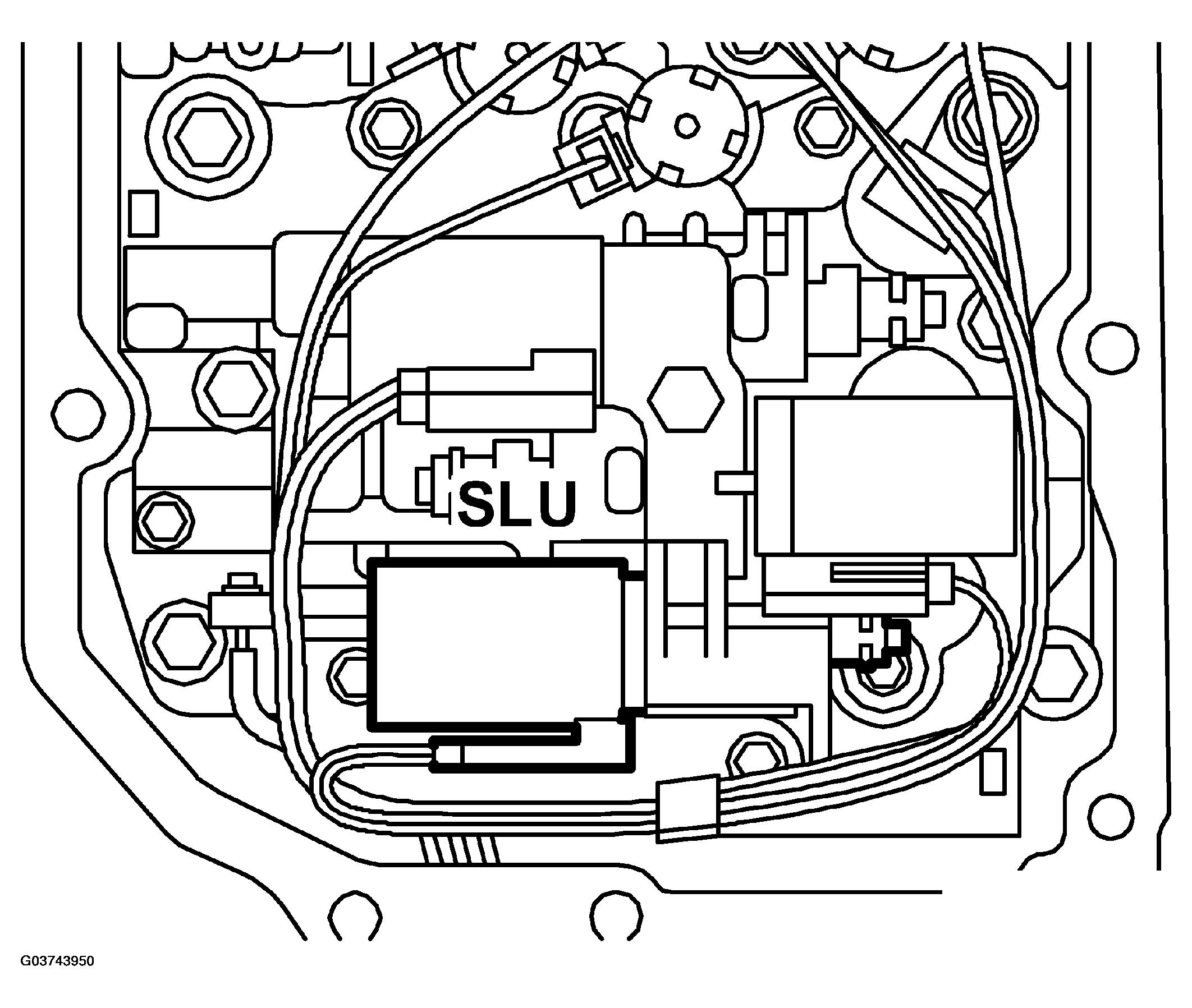

SLU
Courtesy of SAAB-SCANIA OF AMERICA, INC. LOCK-UP (SLU) SOLENOID VALVE SPECIFICATION
| Location |
In valve housing on transmission casing |
| Resistance at 20°C |
5,0 - 5,6 Ohms |
| Characteristics |
Closed at zero current |
