Starting interlock contacts: Notes

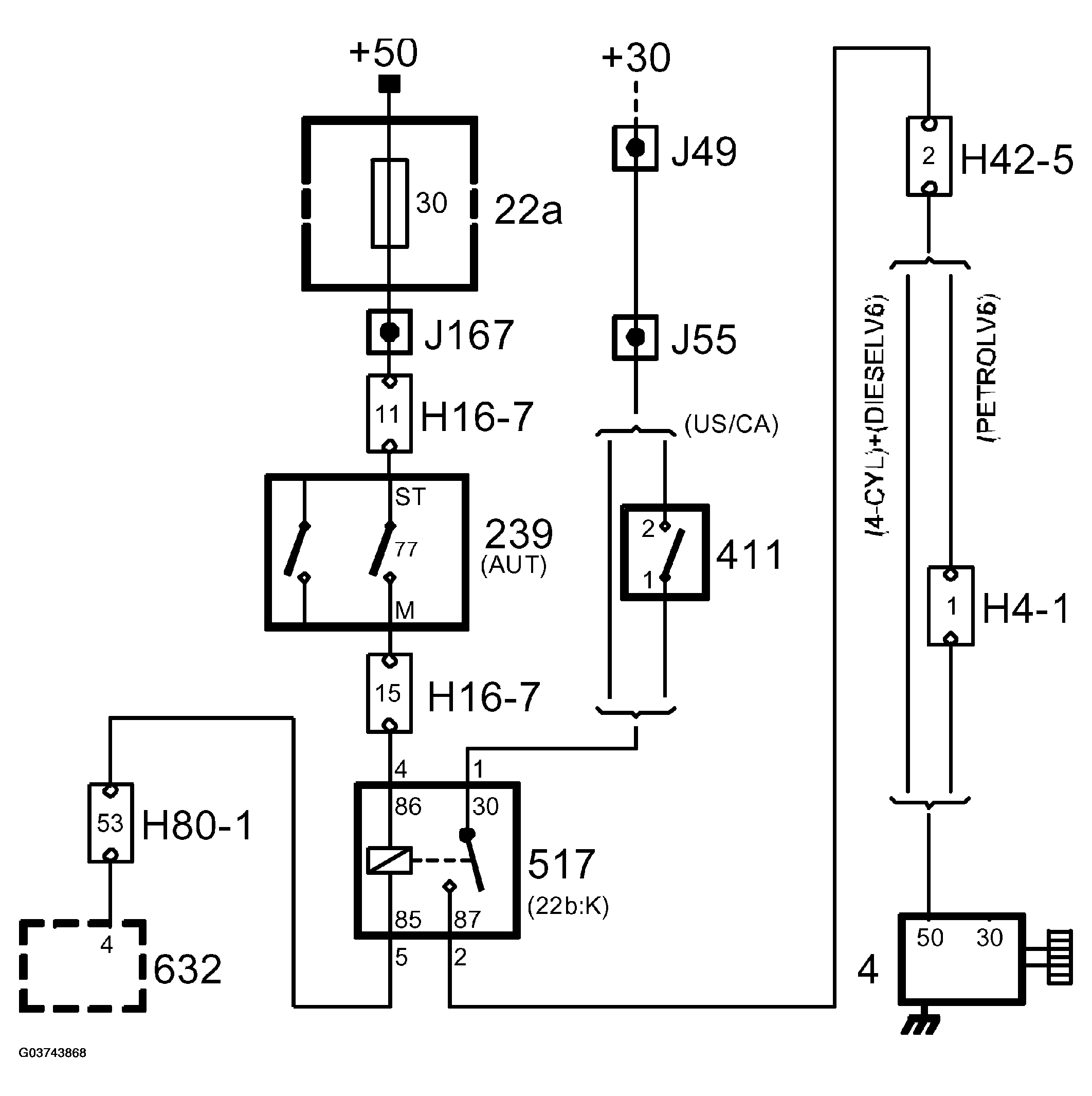

Fig 1: Starting Interlock Contacts Diagram
G03743868Courtesy of SAAB-SCANIA OF AMERICA, INC.
