Home >> Saab >> 2004 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Component Location >> Control module, PSG16, contact K (595K)

Control module, PSG16, contact K (595K)

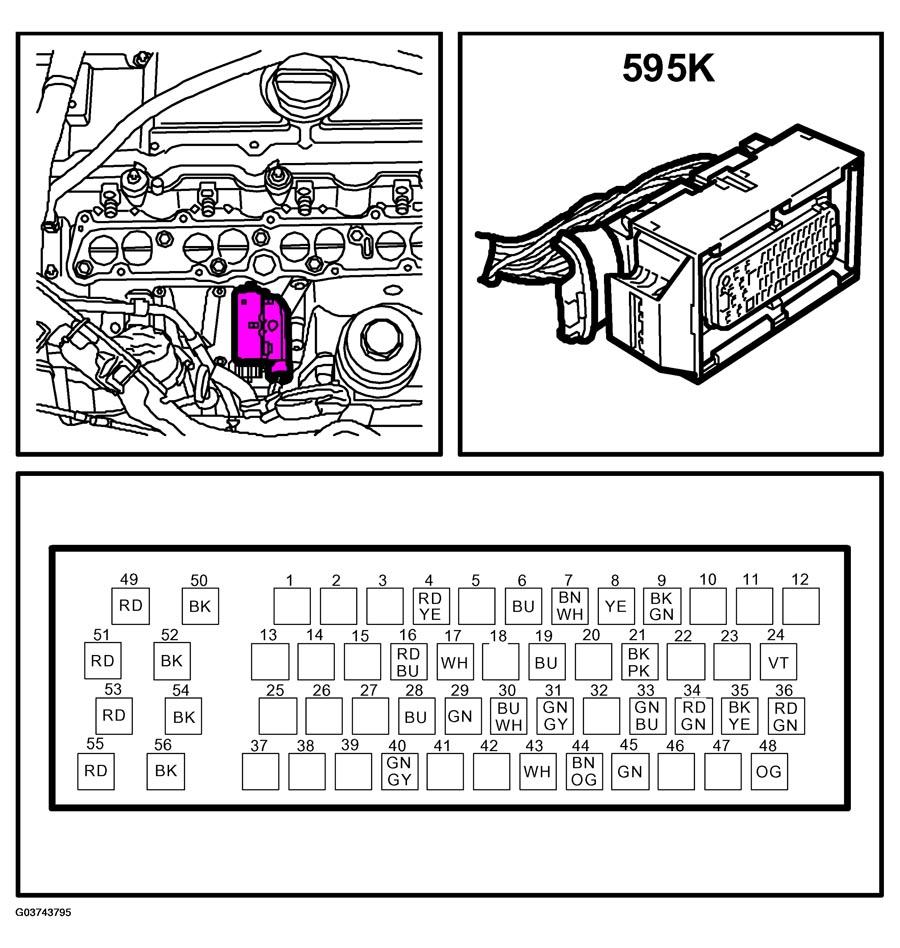

Fig 1: Identifying Control Module, PSG16, Contact K (595K)

G03743795

Courtesy of SAAB-SCANIA OF AMERICA, INC.
