To remove

  1. Raise the car.
  2. Remove the torque arm.

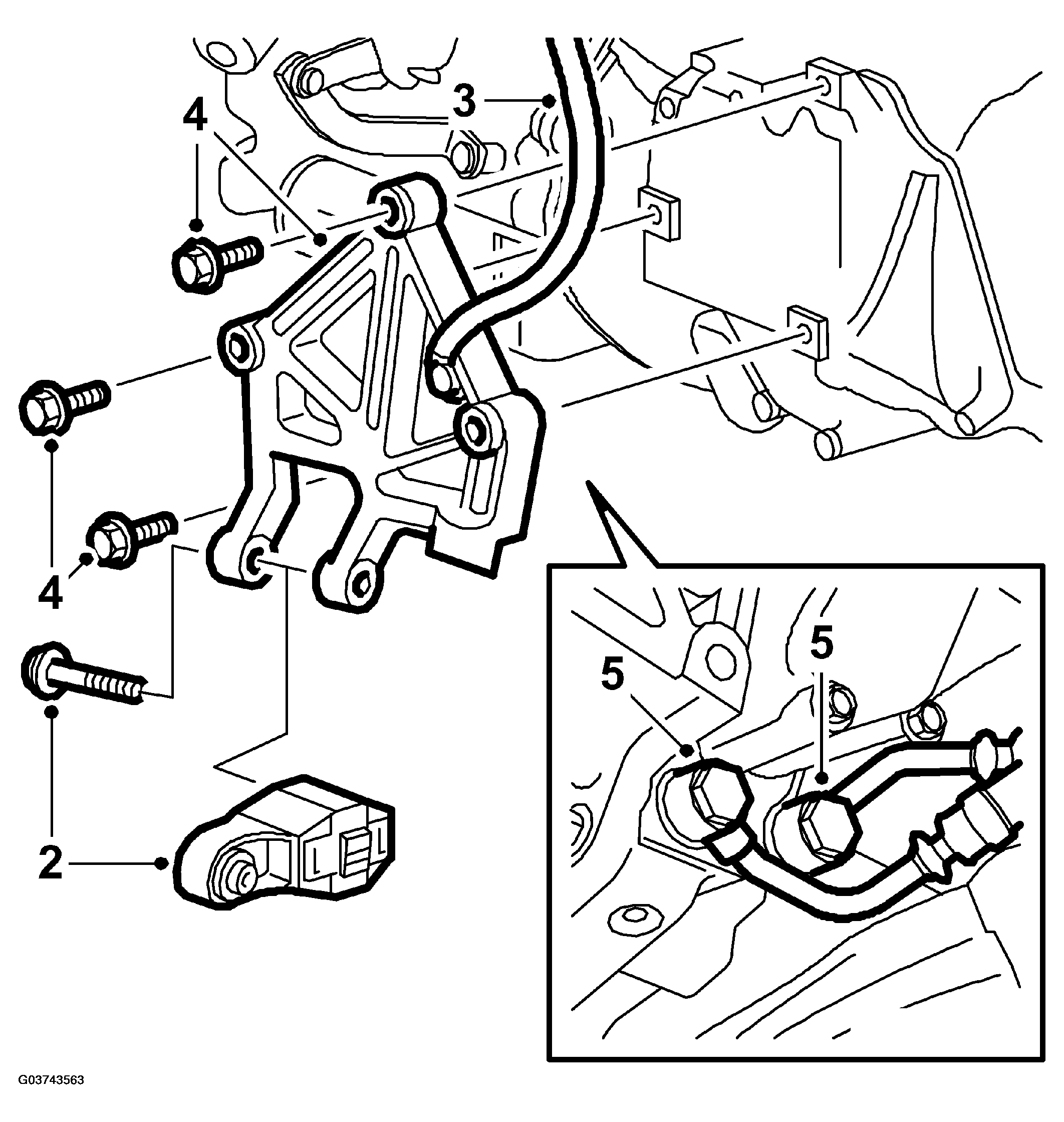

    Fig 1: Illustration For Steps 2-5
    G03743563Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the ground cable.
  4. Remove the torque arm bracket.
  5. Place an oil pan under the transmission and remove the oil cooler hoses. Plug the holes and bend the hoses aside.
  6. Remove the bolts from the valve housing cover.

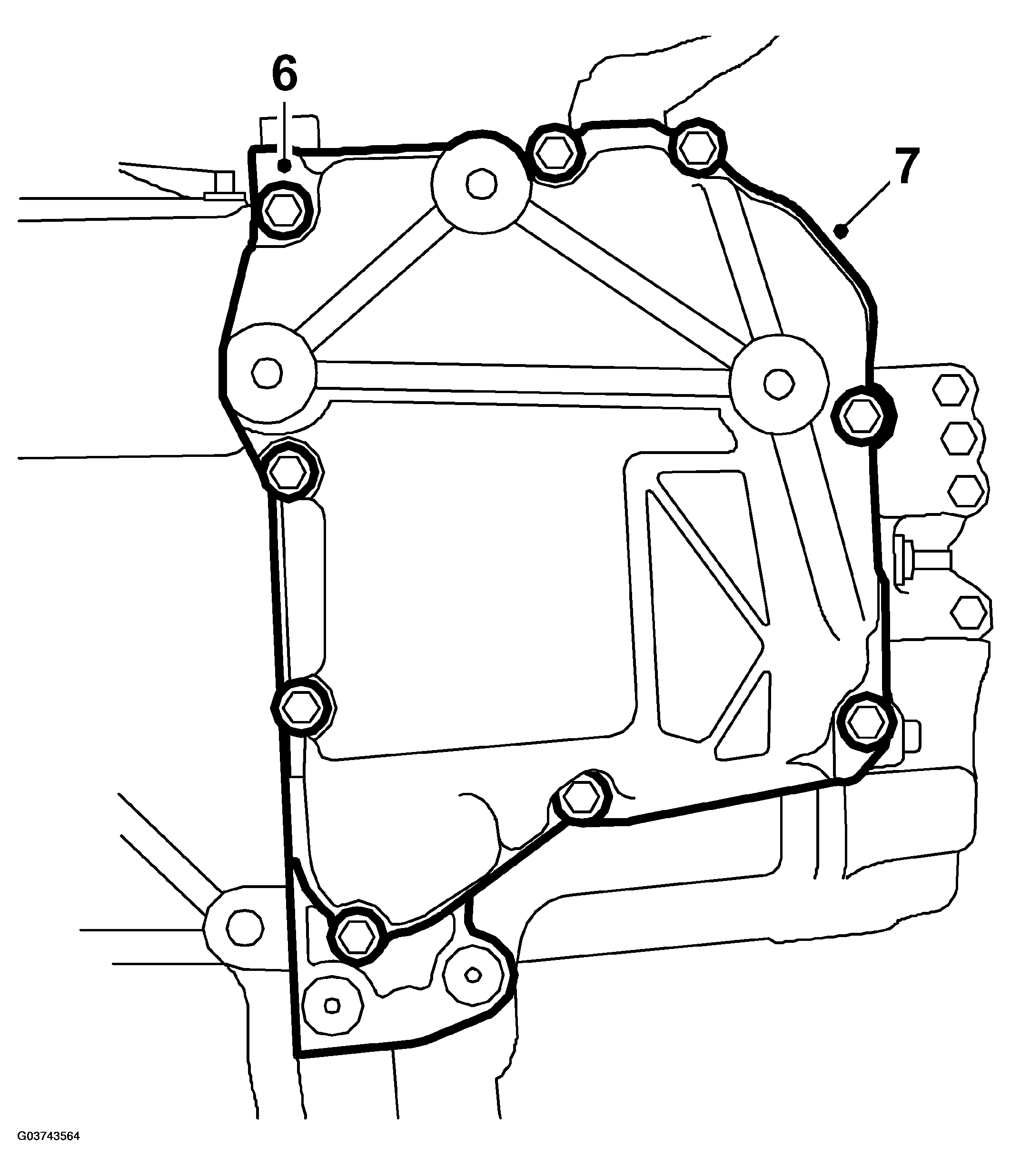

    Fig 2: Illustration For Steps 6-7
    G03743564Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Use a rubber mallet to knock the cover loose.
