Home >> Saab >> 2004 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Adjustment/Replacement >> Torque converter seal >> To remove

To remove

  1. Remove the transmission, See COMPLETE TRANSMISSION  .

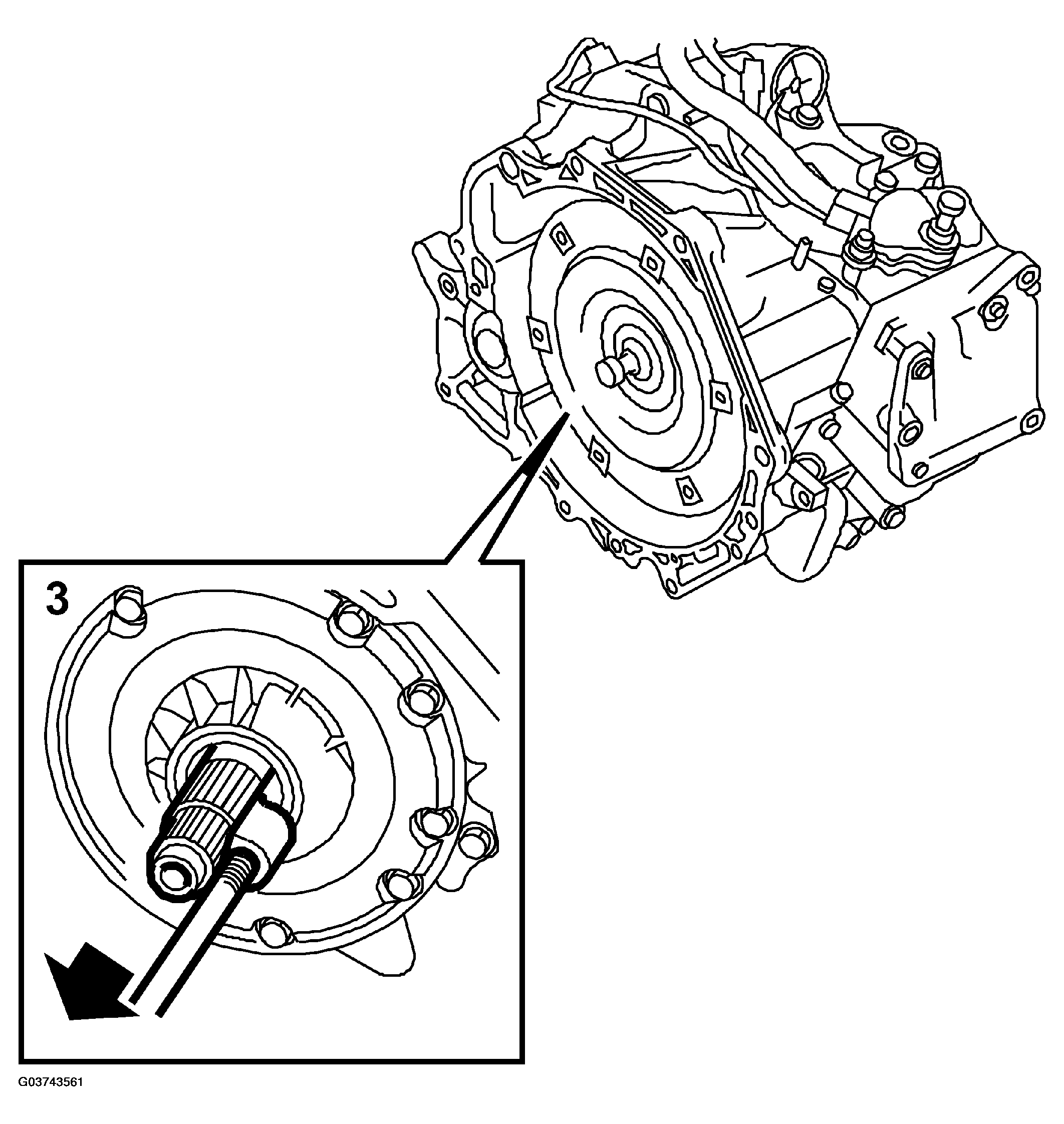

    Fig 1: Illustration For Step 3
    G03743561Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Lift out the torque converter.
  3. Insert PULLER, TORQUE CONVERTER SEAL  87 92 384 inside the seal and use 83 90 270 SLIDING HAMMER  to loosen the seal.
