System overview

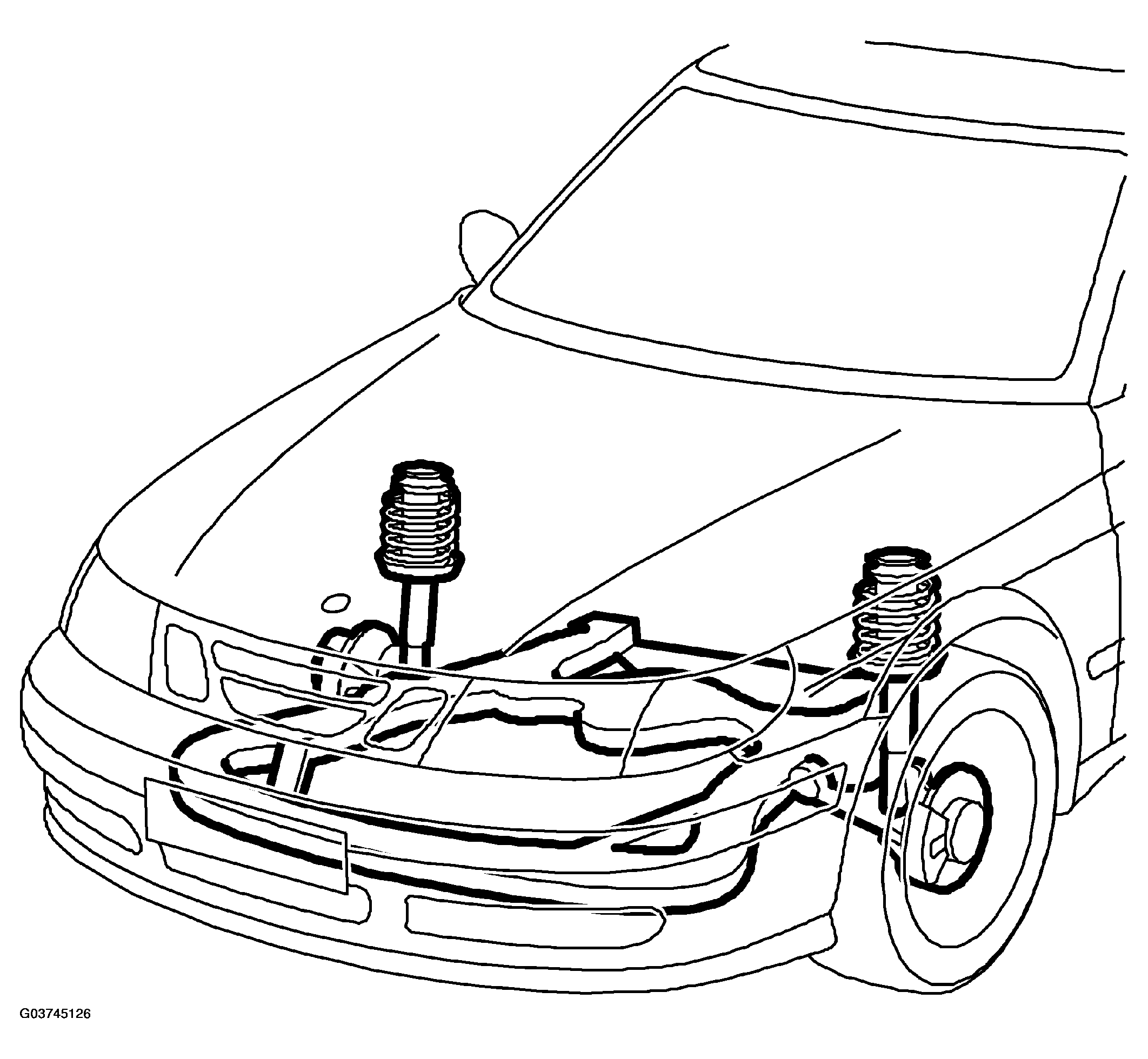

Fig 1: Identifying Wheel Suspension System Overview
G03745126Courtesy of SAAB-SCANIA OF AMERICA, INC.

The wheel suspension comprises a MacPherson strut with cylindrical coil spring and double-action gas dampers. There is also an anti-roll bar and a subframe.
