Technical description: Springs

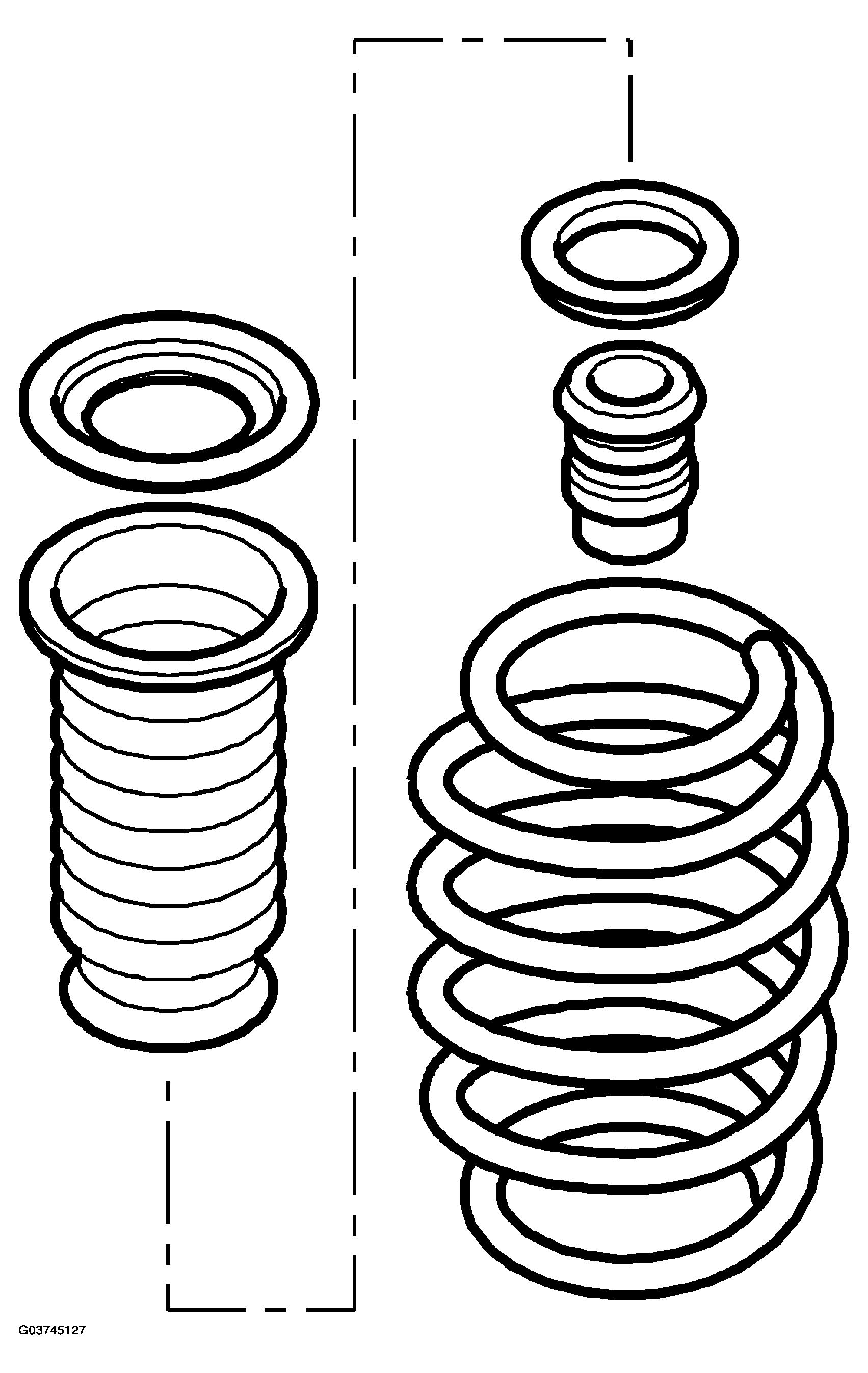

Fig 1: Exploded View Of Springs

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The suspension elements consist of cylindrical spiral springs.

The stop for the spring on extension is incorporated in the damper. The movement of the spring on compression is limited by a specially designed stop on the damper piston rod.This stop ensures smooth damping of the oscillating movement of the spring, limiting stresses on the attachment points to a minimum.
