Home >> Saab >> 2004 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> Suspension >> Front Suspension >> Adjustment-Replacement >> Subframe bushes >> To remove

To remove

  1. Remove the subframe, see TO REMOVE, SUBFRAME PETROL ENGINE  or TO REMOVE, SUBFRAME V6 DIESEL  .

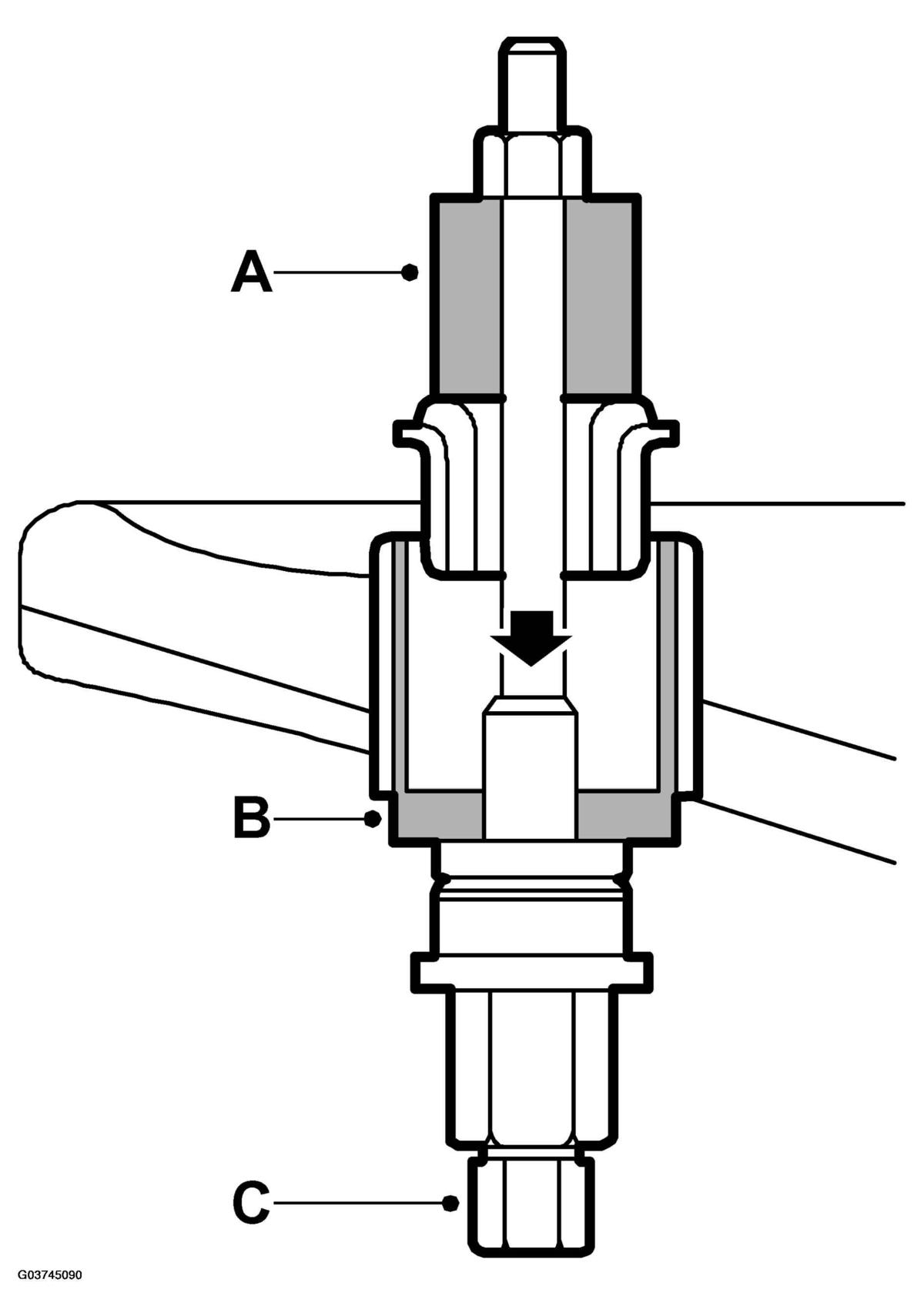

    Fig 1: Removing Subframe Bushes
    G03745090Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the bush using 89 96 779 Press sleeve kit, front assembly.
    1. A: KM-907-11
    2. B: KM-907-12
    3. C: KM-907-30
