Power supply, ground and bus communication

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

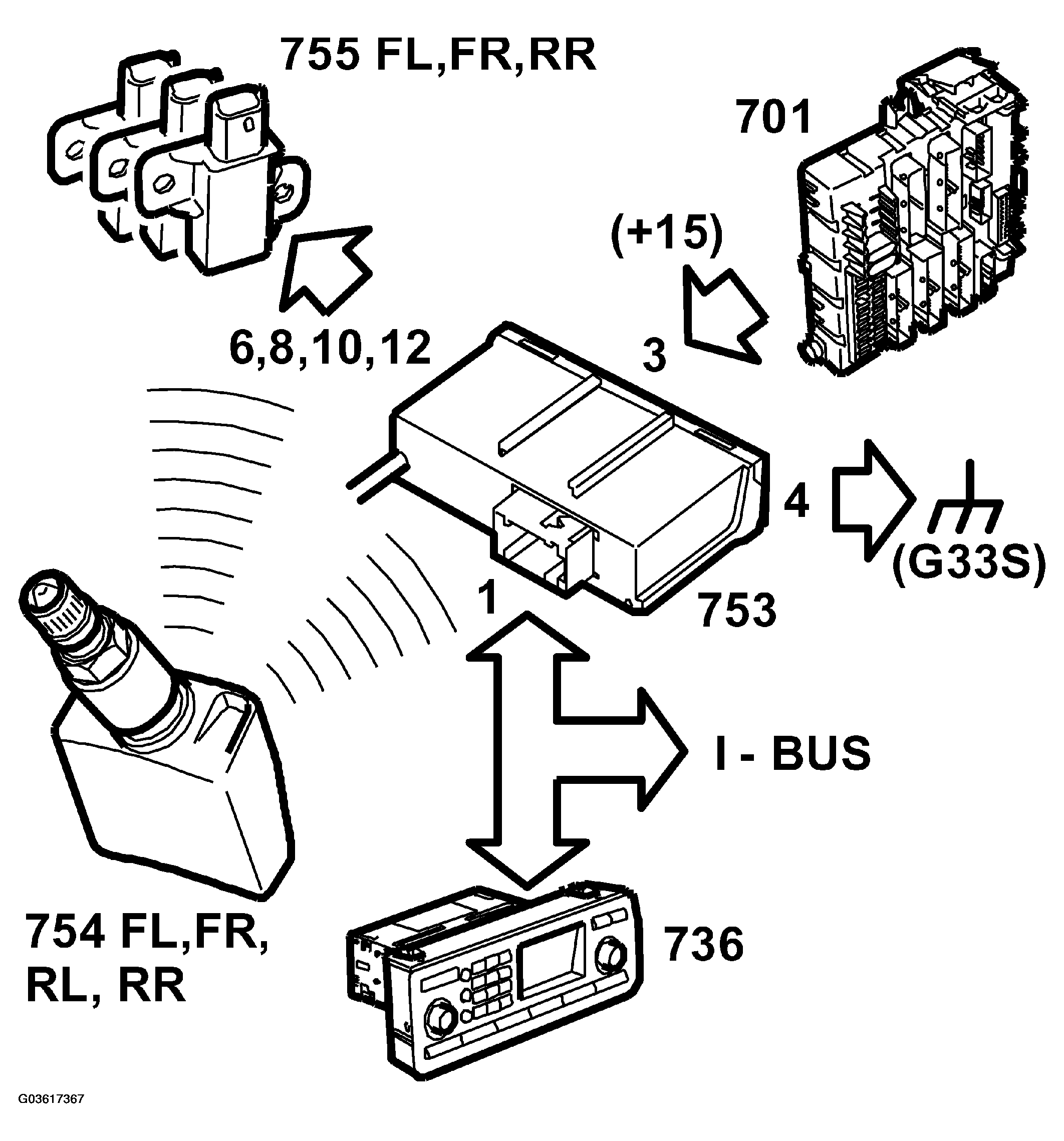

Fig 1: Identifying Tire Pressure Monitoring Module Connectors
G03617367Courtesy of SAAB-SCANIA OF AMERICA, INC.

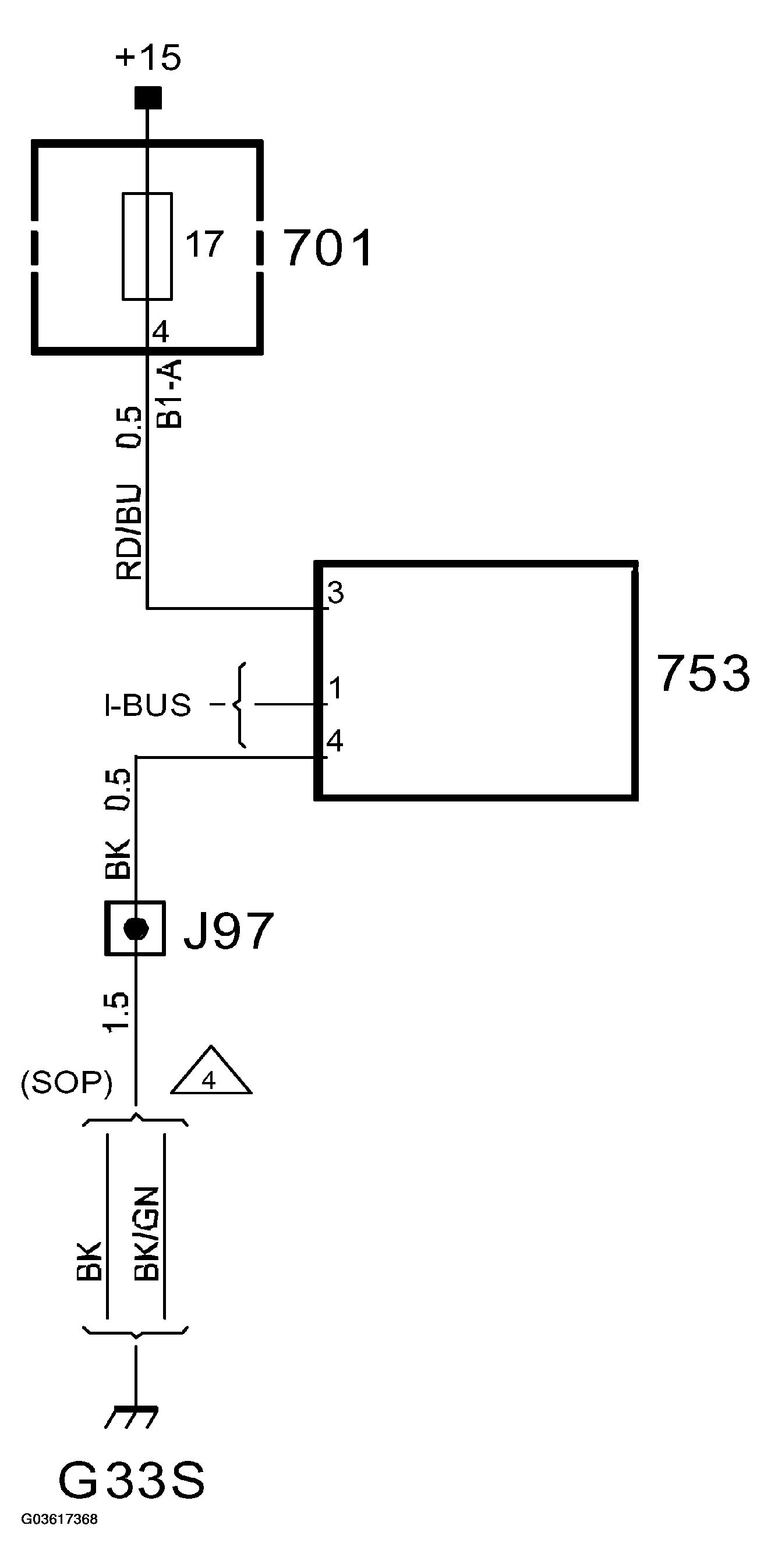

Fig 2: Power Supply, Ground And Bus Communication
G03617368Courtesy of SAAB-SCANIA OF AMERICA, INC.
PINS DESCRIPTION

Pin Connection
1 I-bus
2 Not used
3 +15
4 Ground, G33S
7 Signal detector front left (755FL), system ground
8 Signal detector front left (755FL), power supply
9 Signal detector front right (755FR), system ground
10 Signal detector front right (755FR), power supply
11 Signal detector rear right (755RR), system ground
12 Signal detector rear right (755RR), power supply
