Main use: Activation

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

The SLM control module is powered with +30 on pin 2 from main fuse box 22, fuse 5. Grounding takes place on pin 3, grounding point G41. Bus communication (I-bus) takes place on pin 12. Communication regarding up or down shifting in position "M" takes place from pin 7 on SLM to pin 8 (A) on TCM.

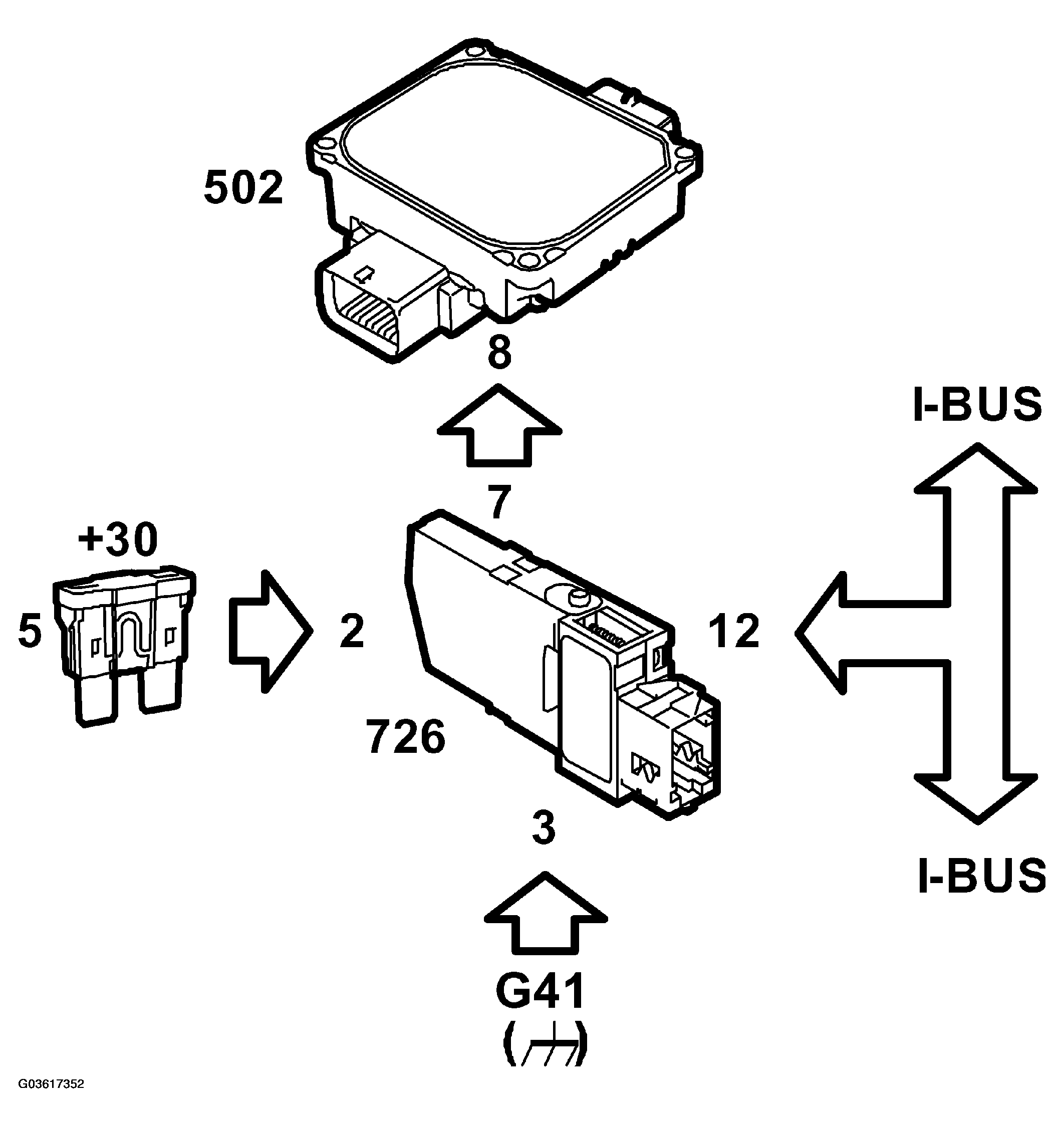

Fig 1: Identifying Fuse Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

PINS DESCRIPTION

Pin no.	Interface	Description
2	+ 30	Supply from main fuse box 22
3	ground	grounding point G41
12	Bus	I-bus
7		Up and down shifting to pin 8 (A) on TCM

Power supply, ground and bus connection

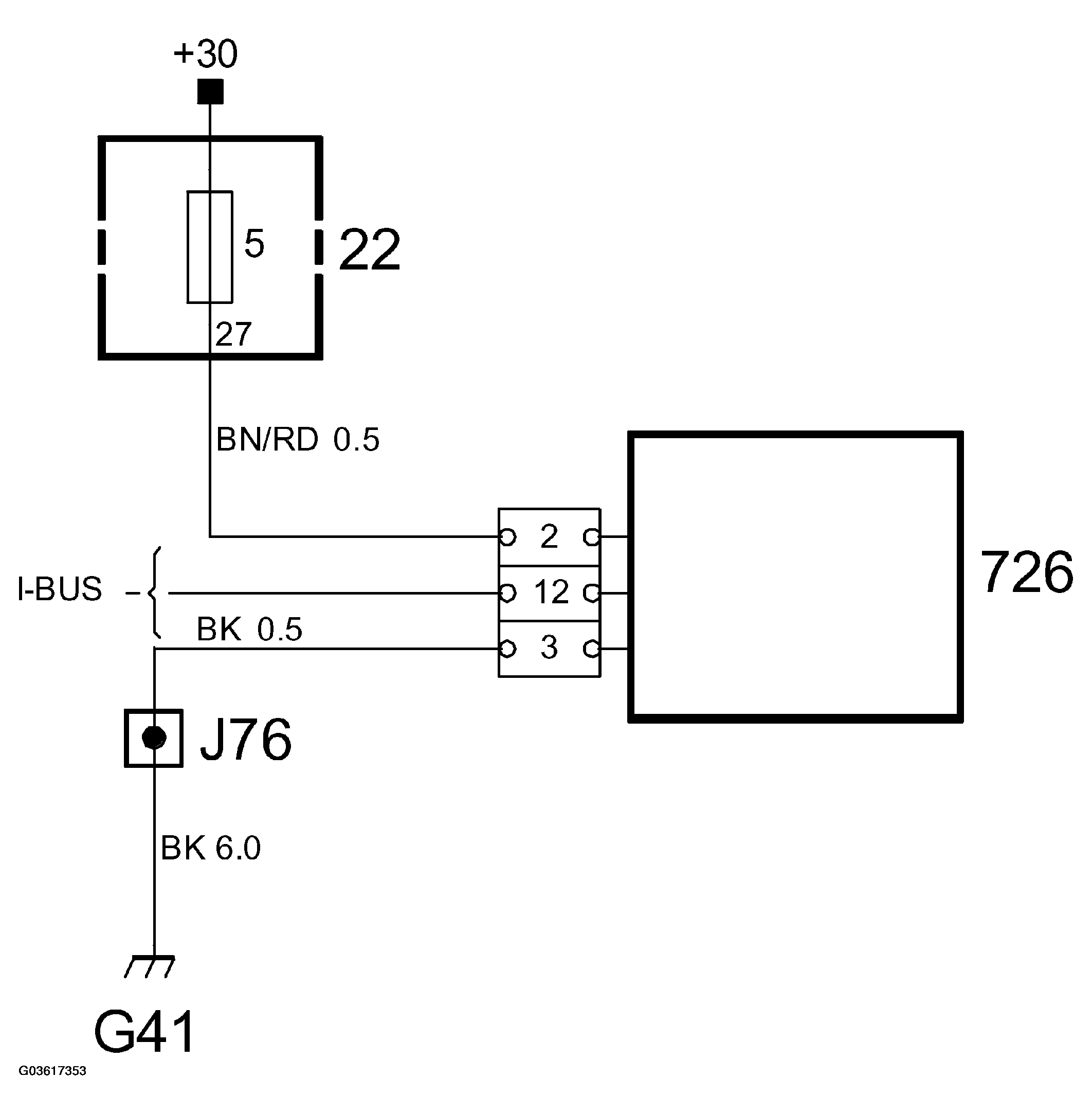

Fig 2: Power Supply, Ground And Bus Connection (1 Of 2)
Courtesy of SAAB-SCANIA OF AMERICA, INC.

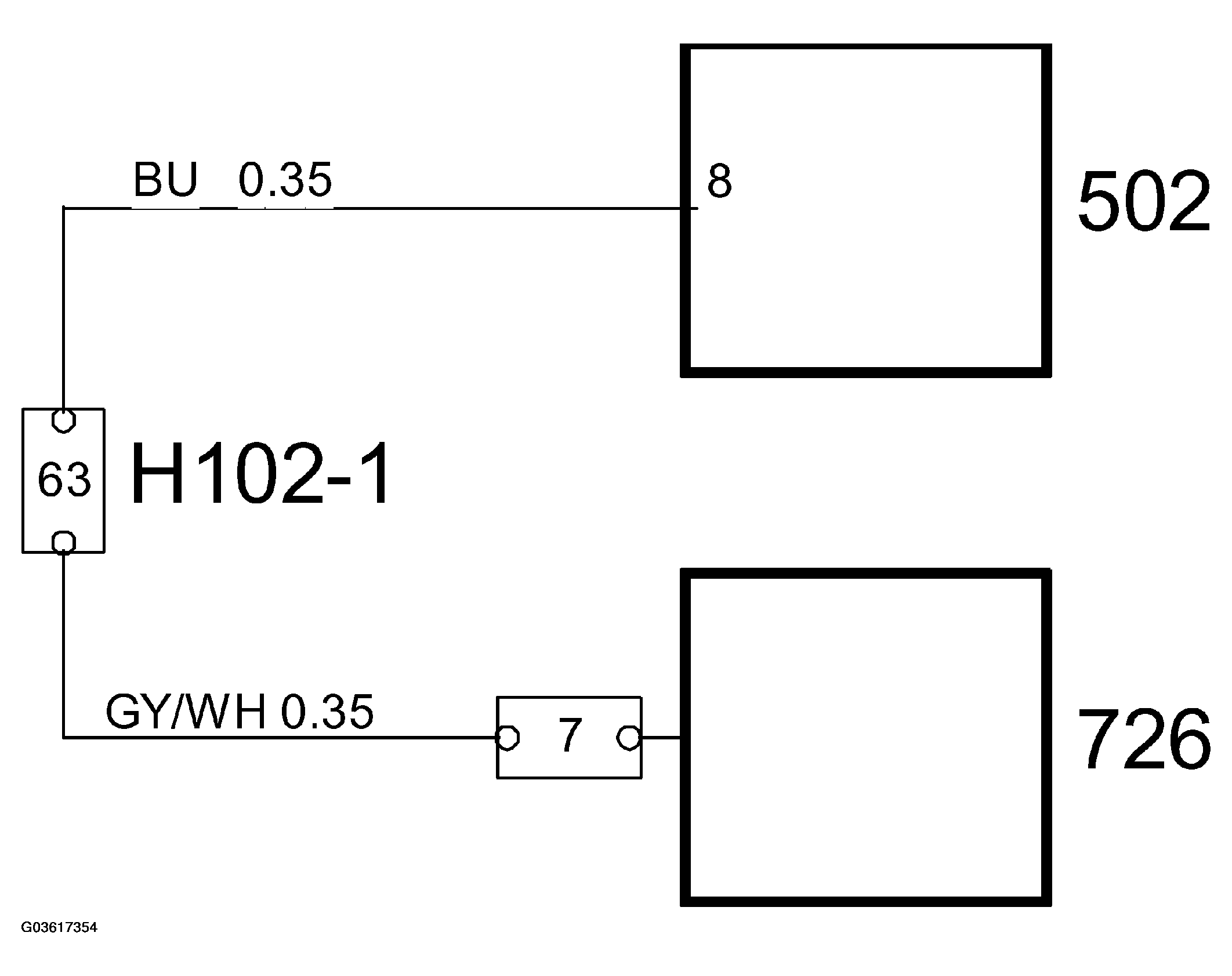

Communication with TCM

Fig 3: Power Supply, Ground And Bus Connection (2 Of 2)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
