Main task: Notes
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

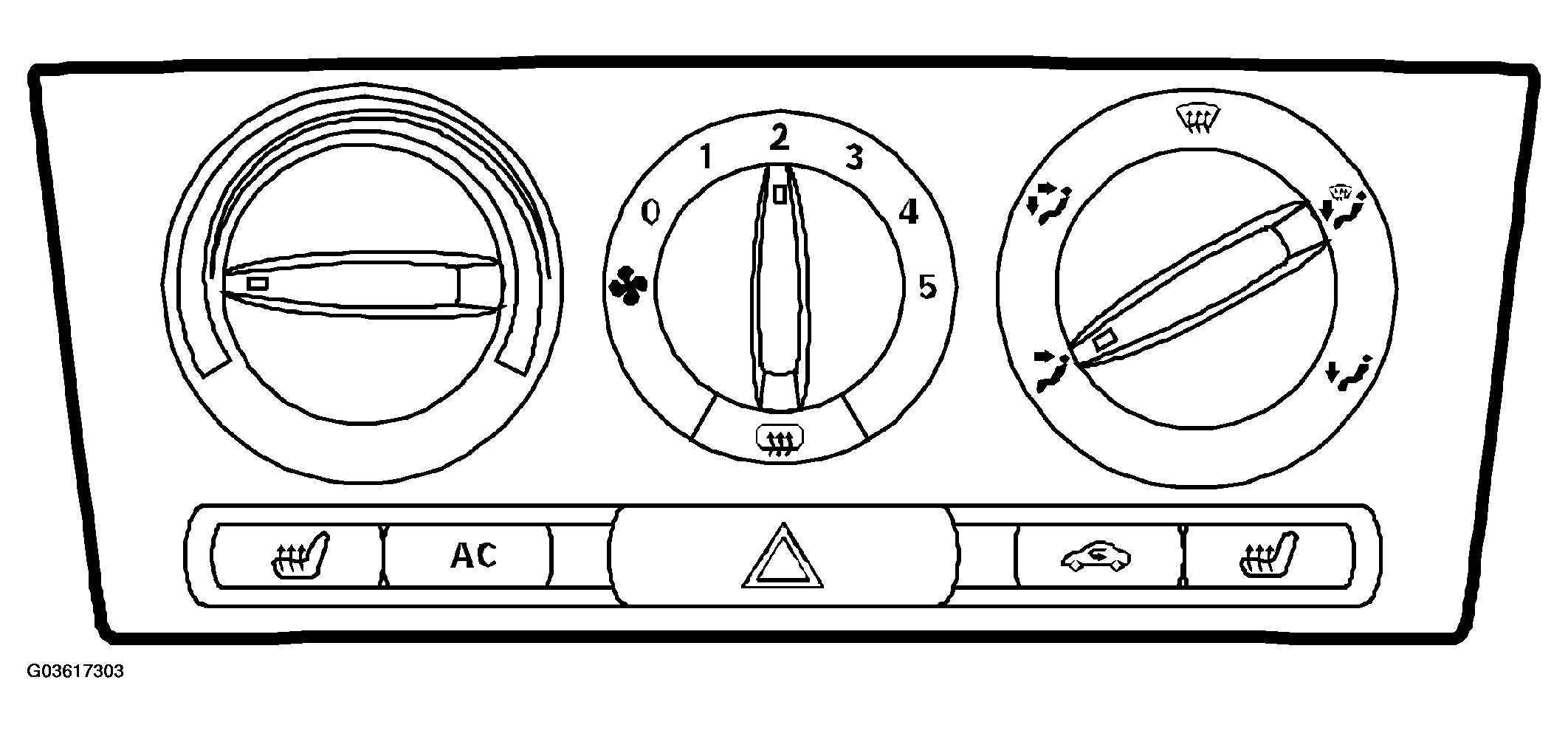

The control panel processor receives information from the heating/air distribution knob potentiometers, calculates and ensures that the DC motors for heating/air distribution positions correspond to the selections made by the user.
