Bus-connected control modules: P-bus

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

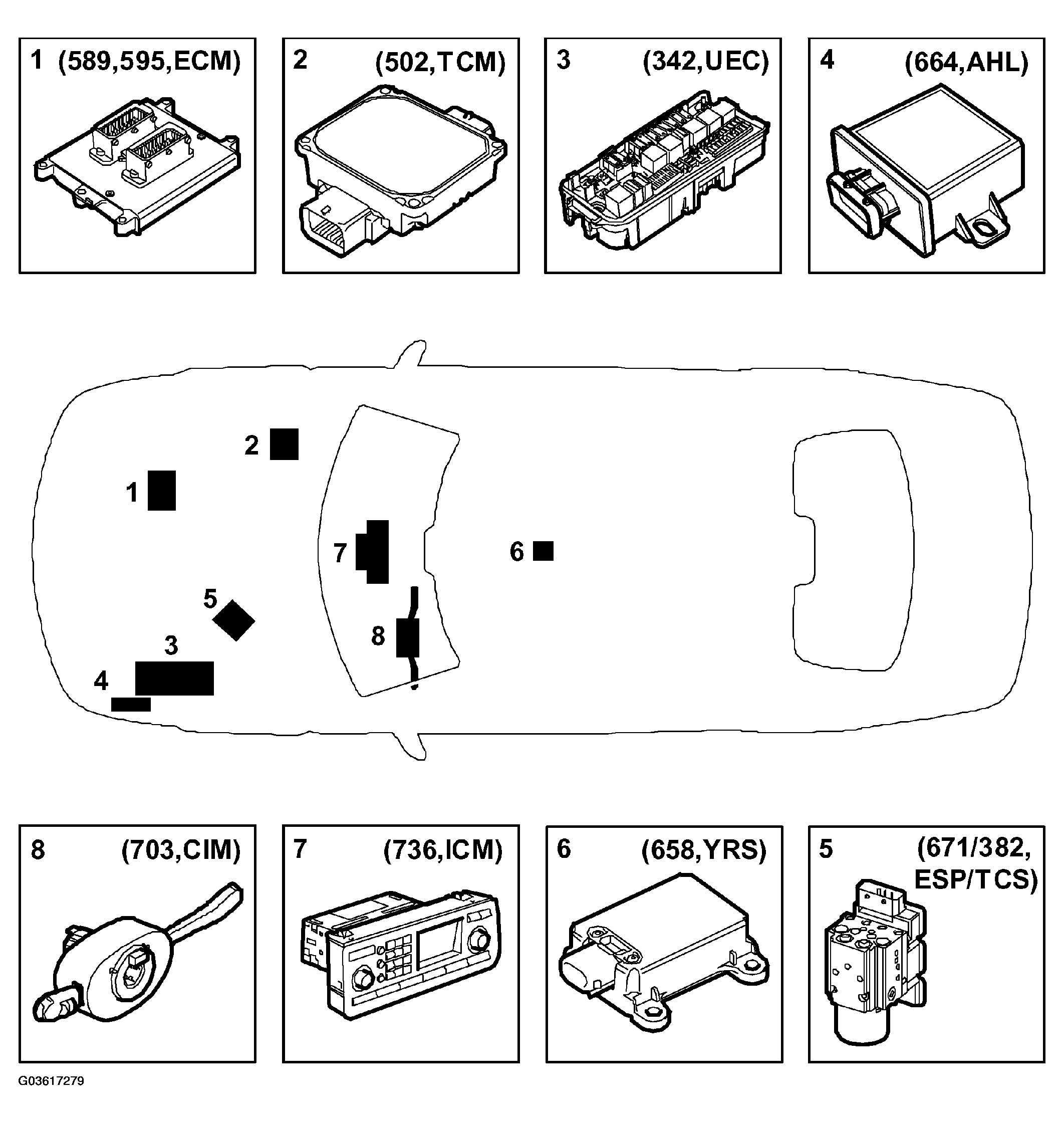

Fig 1: Identifying P-Bus Connected Control Modules
G03617279Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. The engine control module (589/595) is located in front on the engine.
  2. TCM control module (502) is located on the console between the battery and engine.
  3. Engine bay main fuse box (342) is located between the battery and the left-hand front wing.
  4. AHL control module (664) is located behind the left-hand headlamp unit.
  5. ESP/TCS control module (671/382) is integrated in the hydraulic unit behind the main fuse box 342.
  6. Yaw sensor (658) is located on the center tunnel under the gear selector unit.
  7. Infotainment control panel, ICM (736) is located under SID.
  8. Column Integration Module, CIM (703a) is integrated in the steering column unit.
