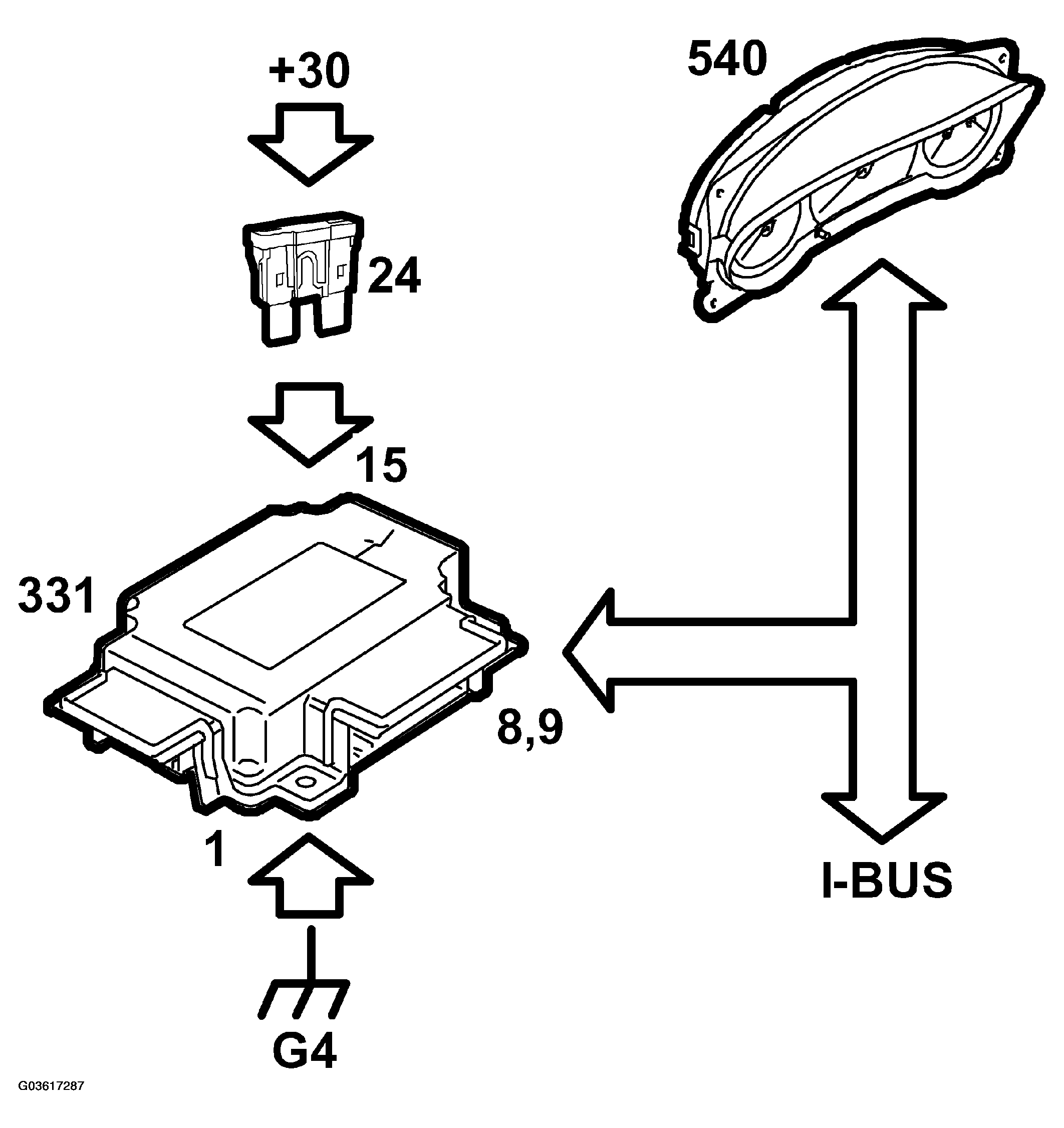

Power supply, ground and bus communication
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
PINS DESCRIPTION
| Pin no. |
Signal type |
Description |
| 15 (K30) |
Power supply +30 |
Power supply from IPEC via fuse 24 |
| 1 (K30) |
Ground |
Grounding point G4 |
| 8, 9 (K30) |
I-bus |
Signal to/from other control modules |
Courtesy of SAAB-SCANIA OF AMERICA, INC.

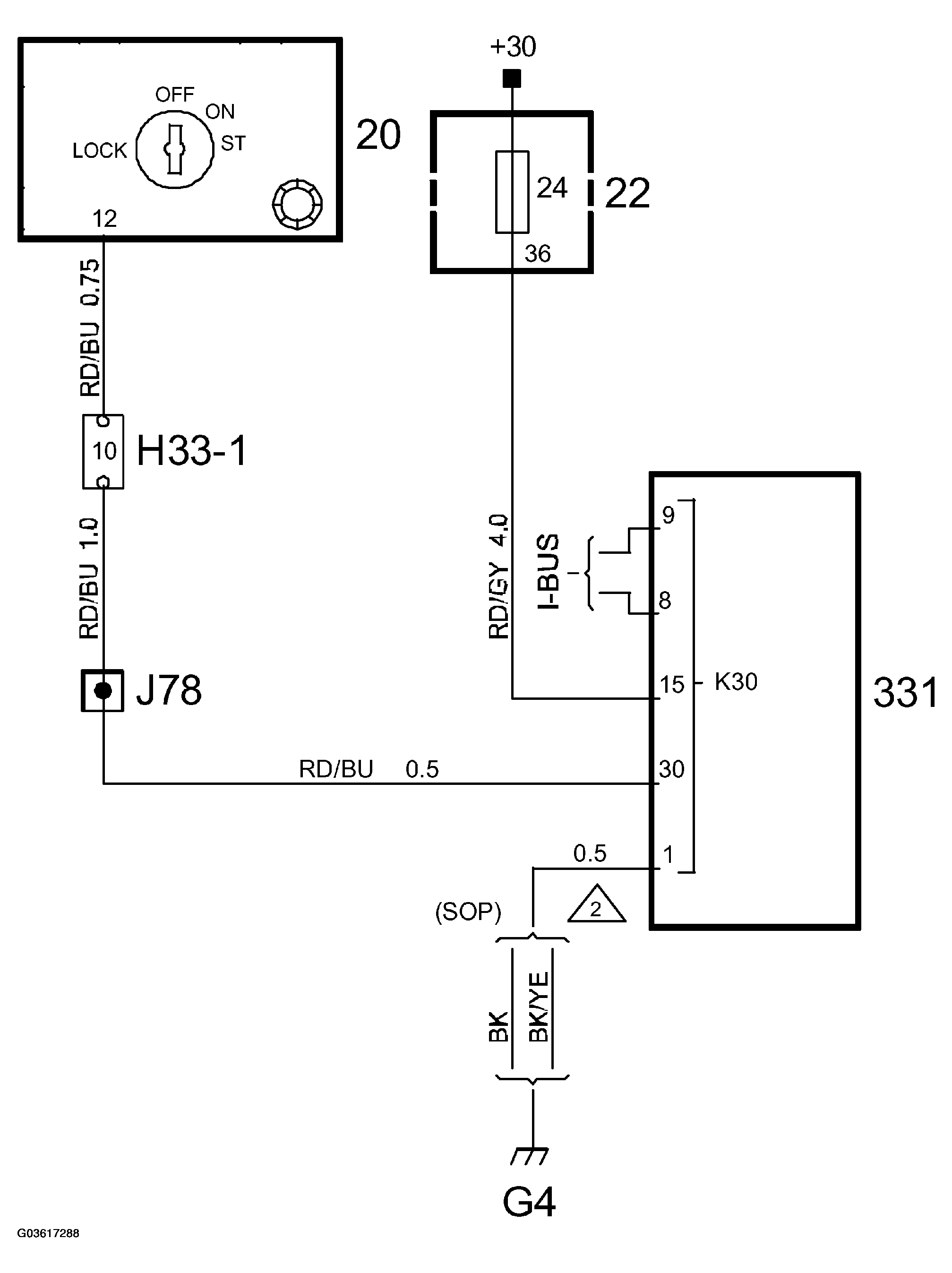

Wiring diagram, power supply.
