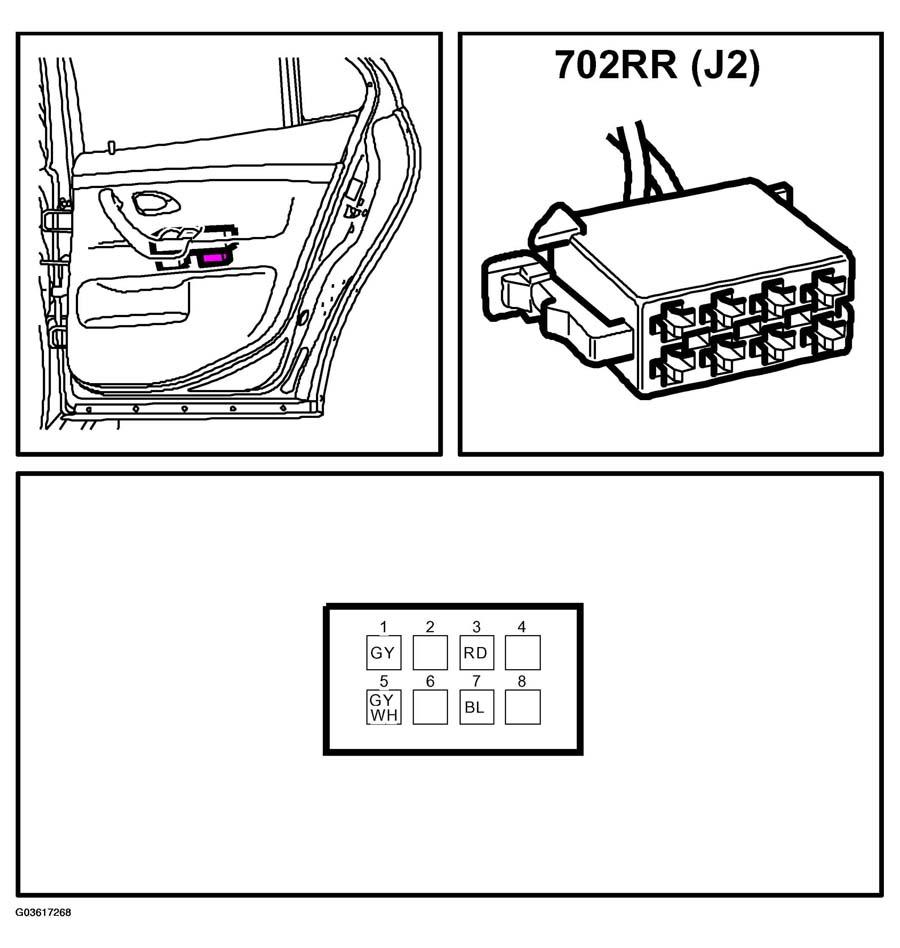

Test readings, rear right door module, (702RR): Remember: J2
WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
All units on the I and P-buses send signals.
COMPONENT FUNCTION
| Control module pin | Component/ function | IN/OUT | Test criteria | Measure across | Test reading | |
|---|---|---|---|---|---|---|
| 1 | Window lift, up | IN | Ignition ON | Close window | 1-7 | B+ |
| 2 | Not connected | |||||
| 3 | +30 voltage | IN | Ignition ON | 3-7 | B+ | |
| 4 | Not connected | |||||
| 5 | Window lift, down | IN | Ignition ON | Open window | 5-7 | B+ |
| 6 | Not connected | |||||
| 7 | Ground | OUT | Ignition ON | 7-3 | B+ | |
| 8 | Not connected | |||||
