Test readings, BCM: Scope

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

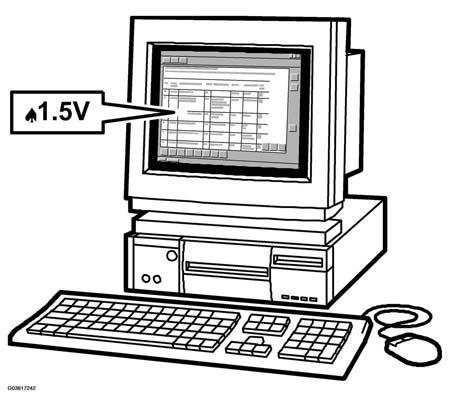

Fig 1: Identifying BCM Equipment
G03617242Courtesy of SAAB-SCANIA OF AMERICA, INC.

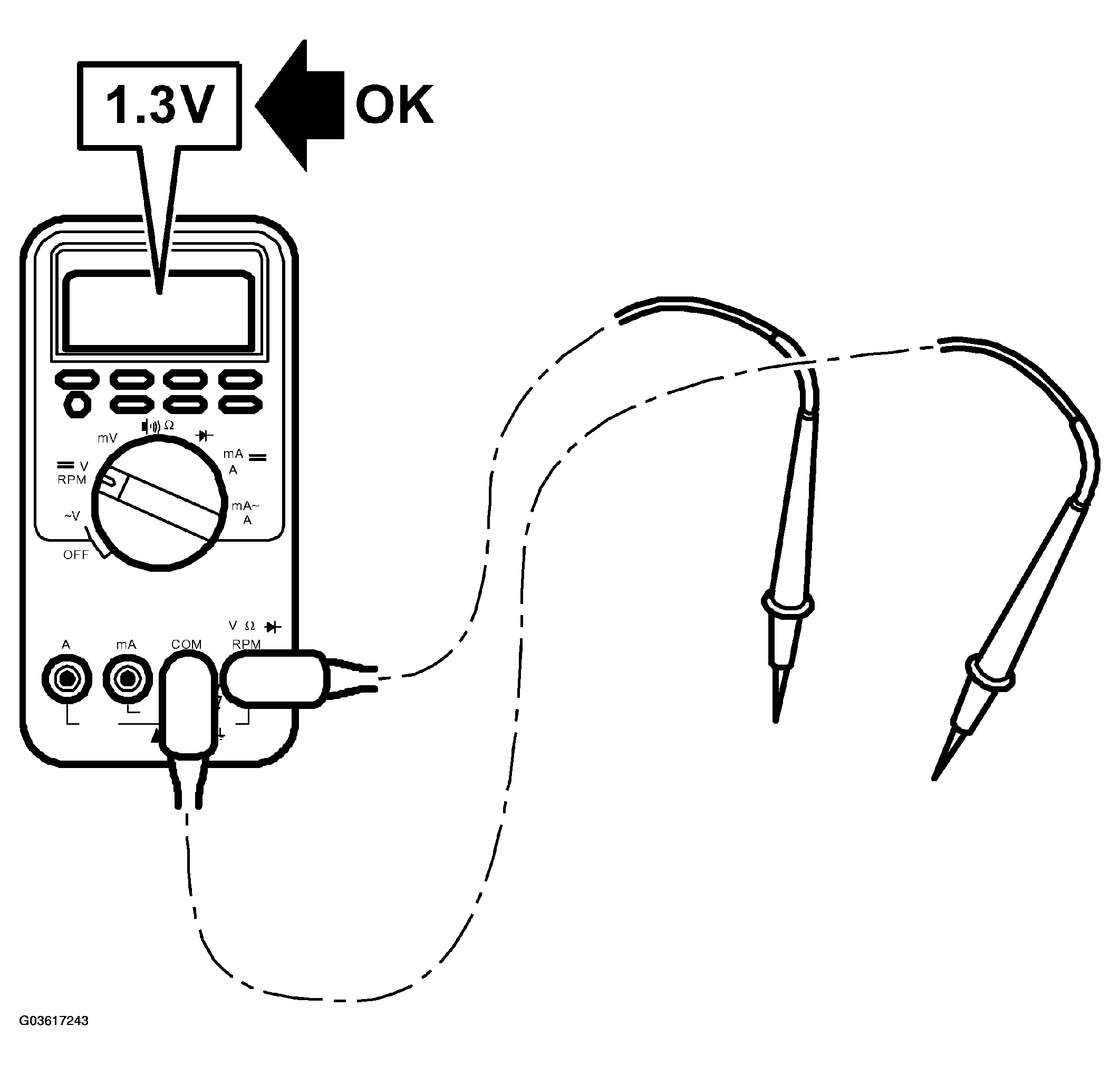

Fig 2: Identifying Multimeter
G03617243Courtesy of SAAB-SCANIA OF AMERICA, INC.

The following pages contain values and instructions for measuring signals and levels on BCM.
