Home >> Saab >> 2004 >> 9-5 Linear, Automatic >> Repair and Diagnosis >> External Pages >> Different car >> Section 42 (Control Module (Late; 9440)) >> Component Location >> Trionic engine control module, 4-cyl petrol, switch B (589B) >> Location:

Trionic engine control module, 4-cyl petrol, switch B (589B): Location:

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

in front on the engine

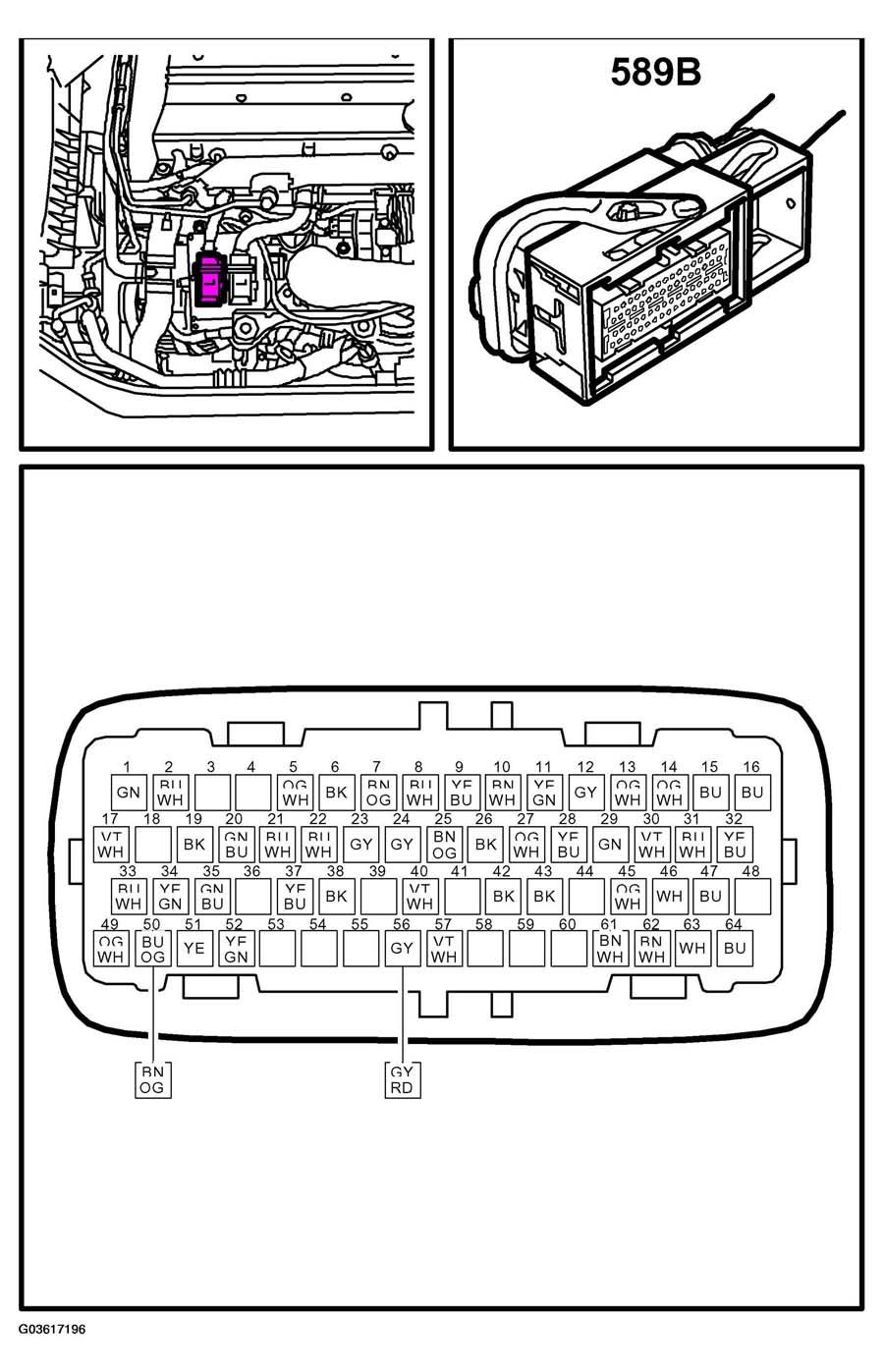

Fig 1: Identifying Trionic engine control module, 4-cyl petrol, switch B (589B)
G03617196Courtesy of SAAB-SCANIA OF AMERICA, INC.
