Tire Pressure Monitoring Module (753): Location:

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

on the LH support member of the center console

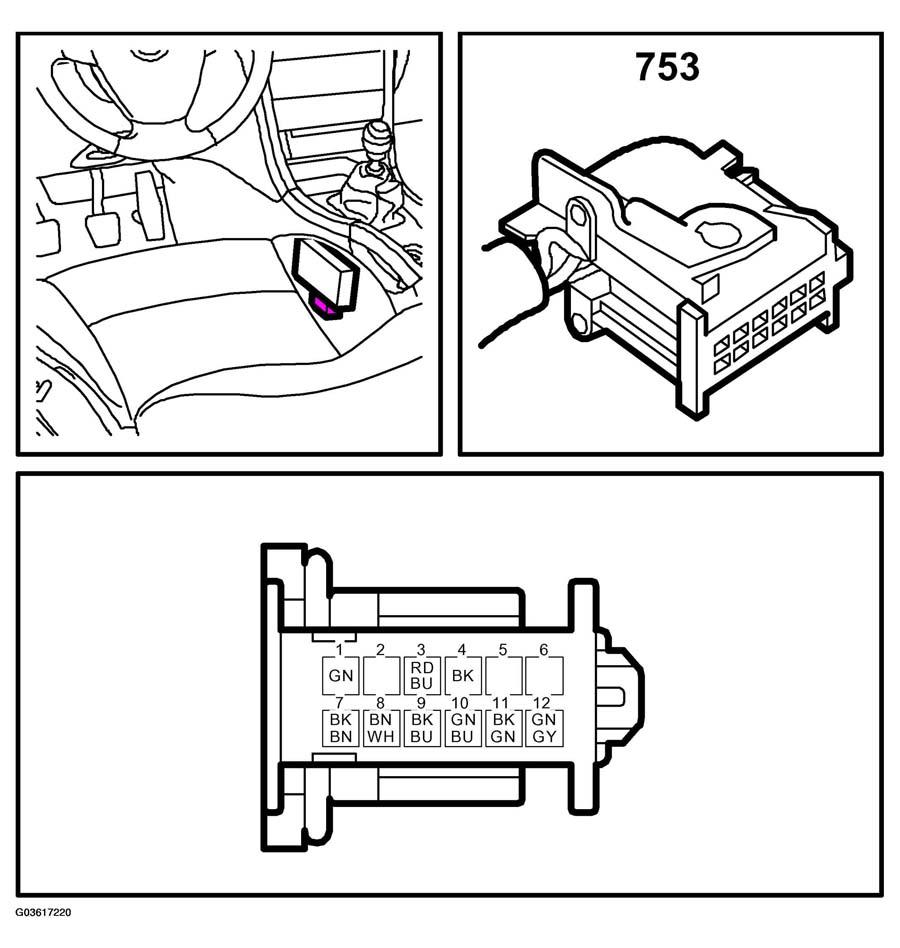

Fig 1: Identifying Tire Pressure Monitoring Module (753)
G03617220Courtesy of SAAB-SCANIA OF AMERICA, INC.
