Ionization Detection Module (740): Location:

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

on the engine's short left side by the vacuum pump

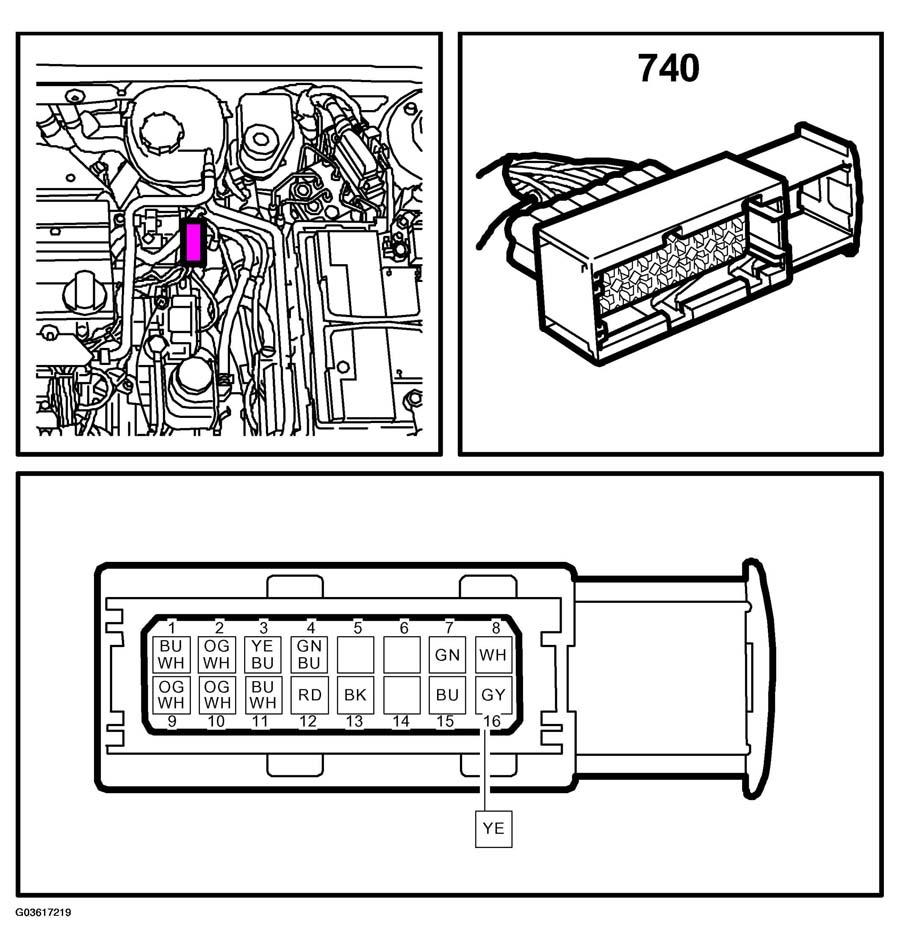

Fig 1: Identifying Ionization Detection Module (740)
G03617219Courtesy of SAAB-SCANIA OF AMERICA, INC.
