Control module, driver's door (702D): Location:

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

in door

J1

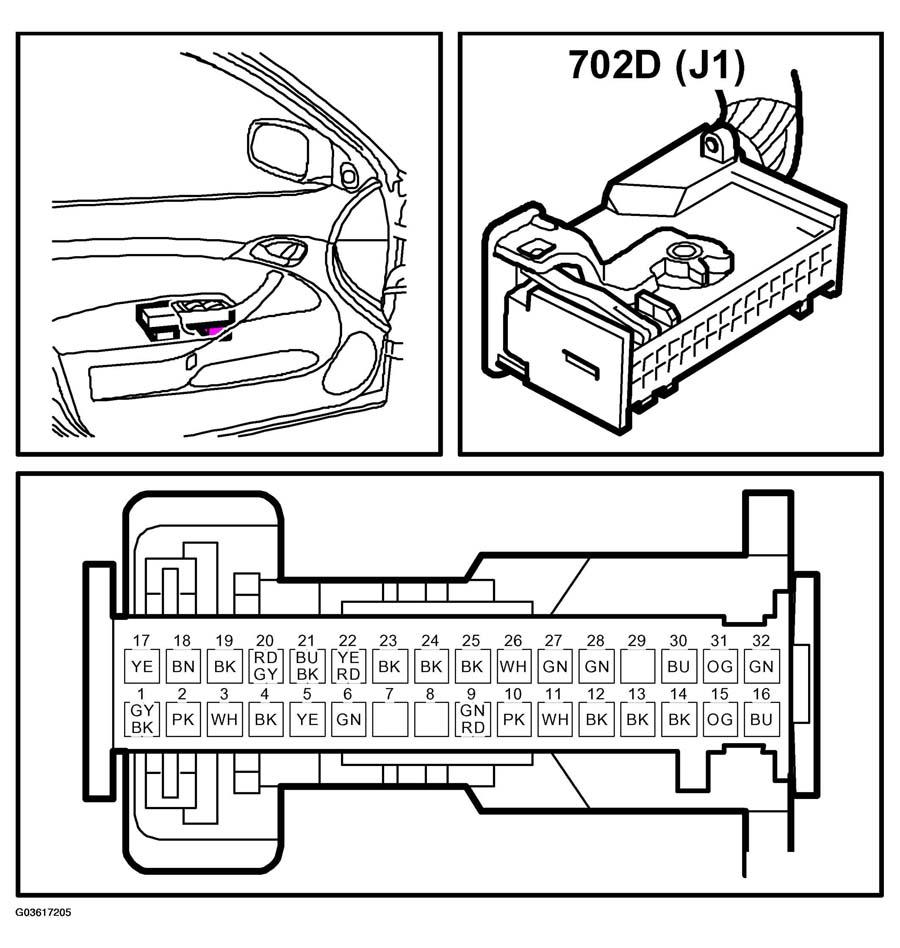

Fig 1: Identifying Control module, driver's door (702D)
G03617205Courtesy of SAAB-SCANIA OF AMERICA, INC.

J2

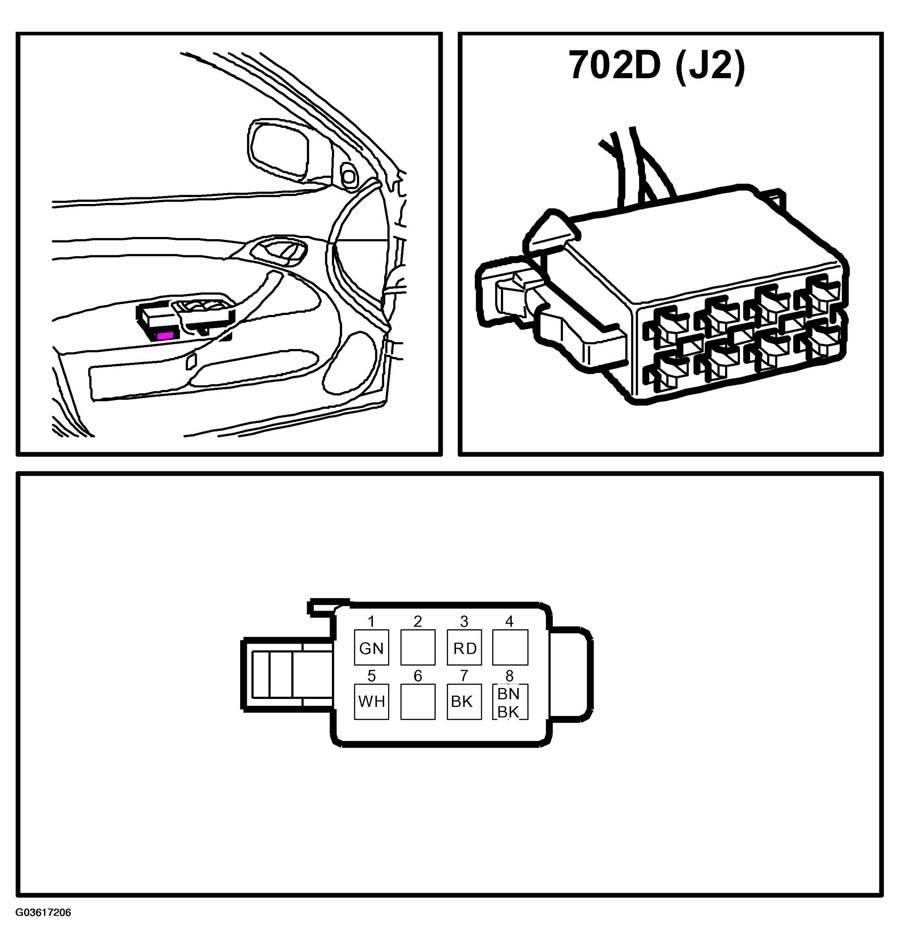

Fig 2: Identifying Control module, driver's door 702D (J2)
G03617206Courtesy of SAAB-SCANIA OF AMERICA, INC.
