Control module, TCM (502): Location:

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

On bracket between battery and engine

K38A

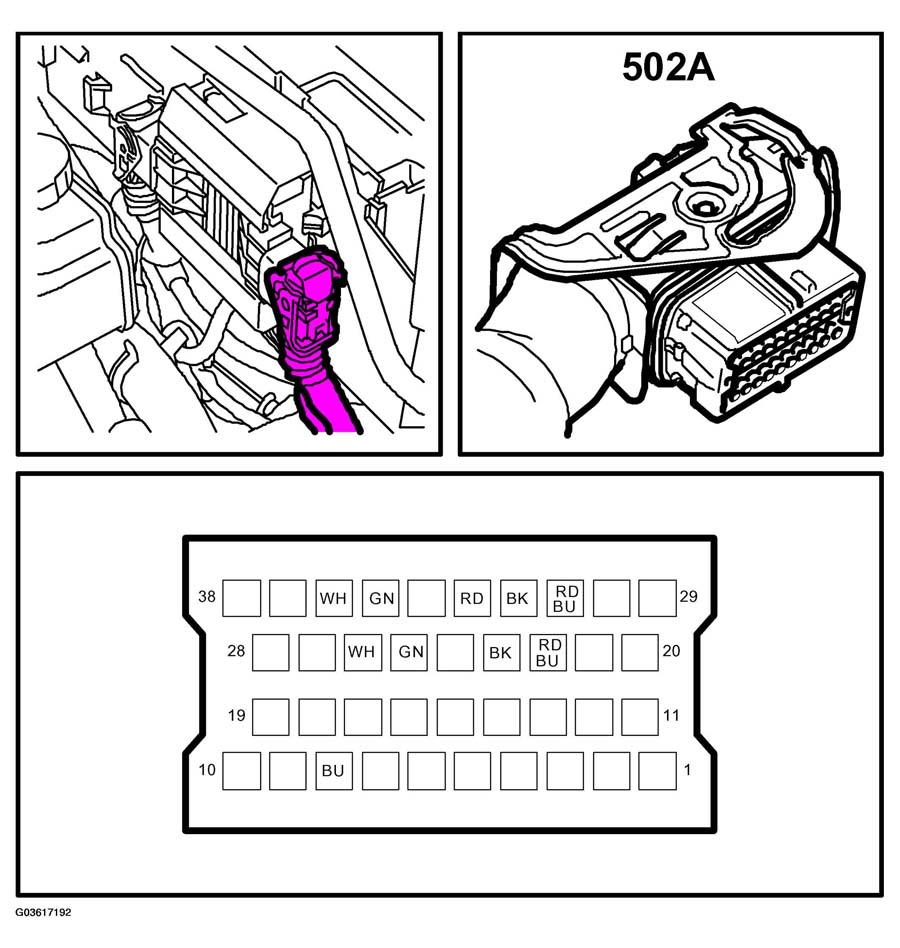

Fig 1: Identifying Control module, TCM (502)
G03617192Courtesy of SAAB-SCANIA OF AMERICA, INC.

K38B

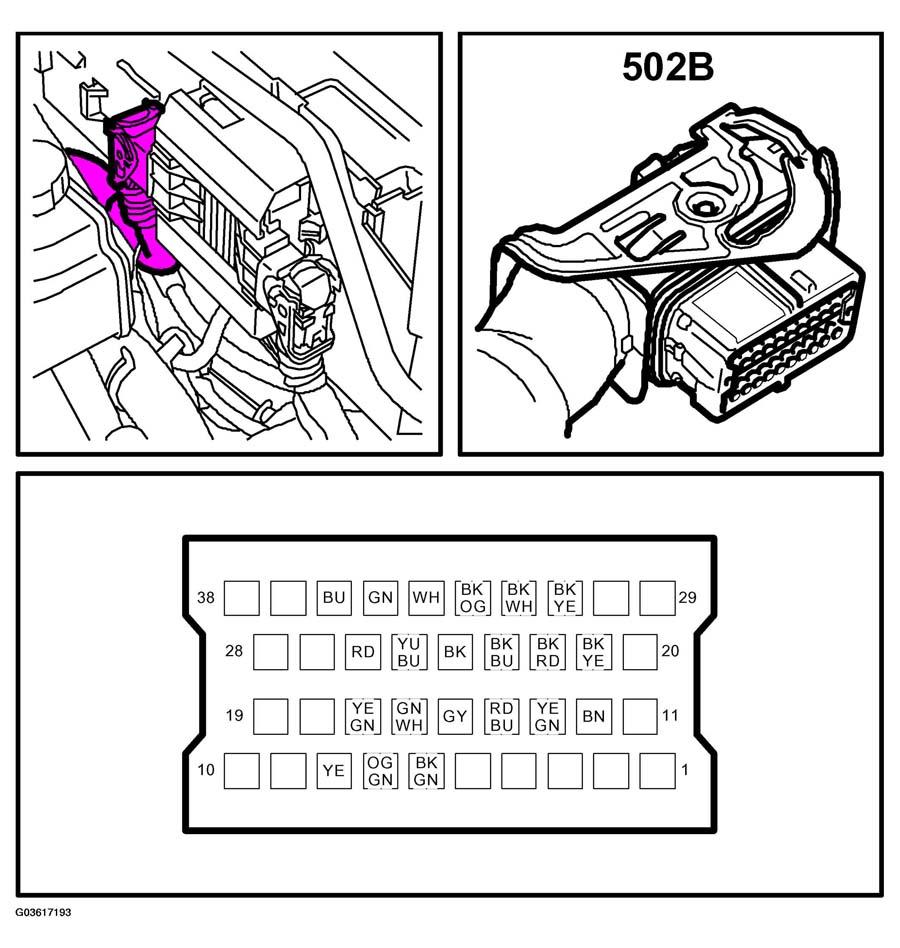

Fig 2: Identifying Control module, TCM 502B
G03617193Courtesy of SAAB-SCANIA OF AMERICA, INC.
