Body Control Module (707): Location:

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

in the dashboard electrical distribution unit

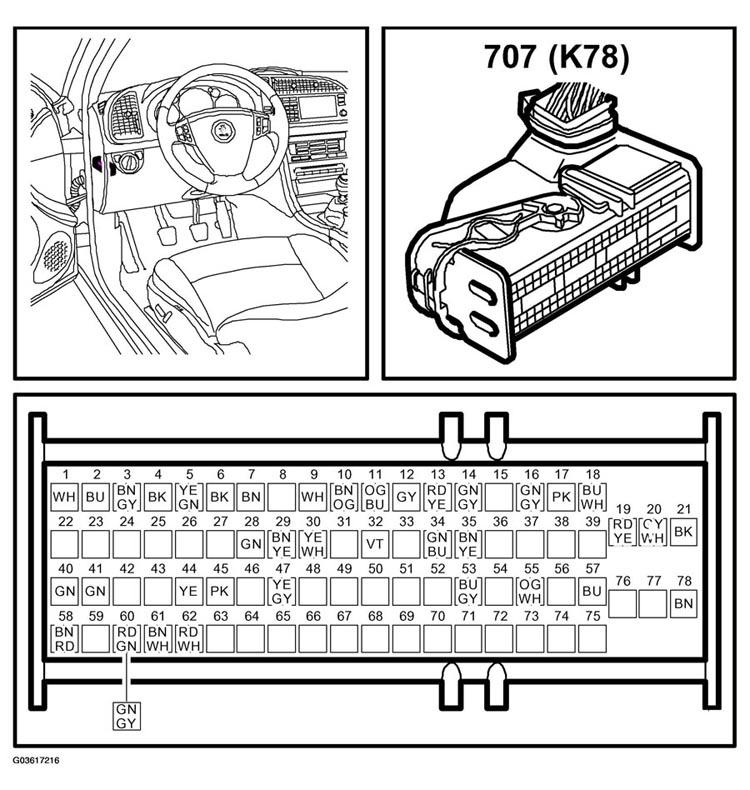

Fig 1: Identifying Body Control Module (707)
G03617216Courtesy of SAAB-SCANIA OF AMERICA, INC.
