To fit

WARNING: This page is about a different car, the 2003 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit the control module. Do not forget the ground cable.

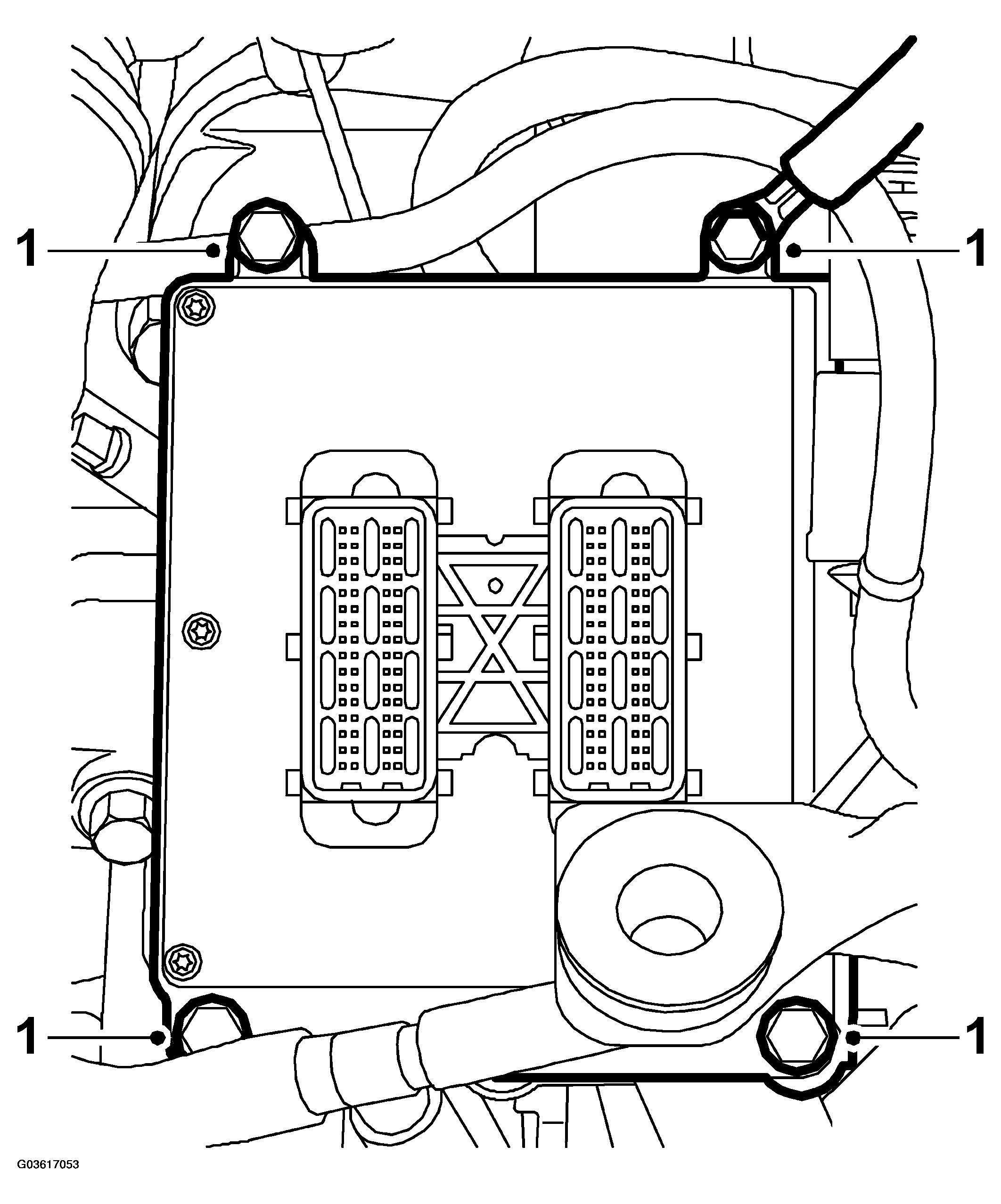

    Fig 1: Illustration For Step 1
    G03617053Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Tightening torque 10 N.m (7 lbf ft)

    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  2. Plug in the connectors and check that they are locked.

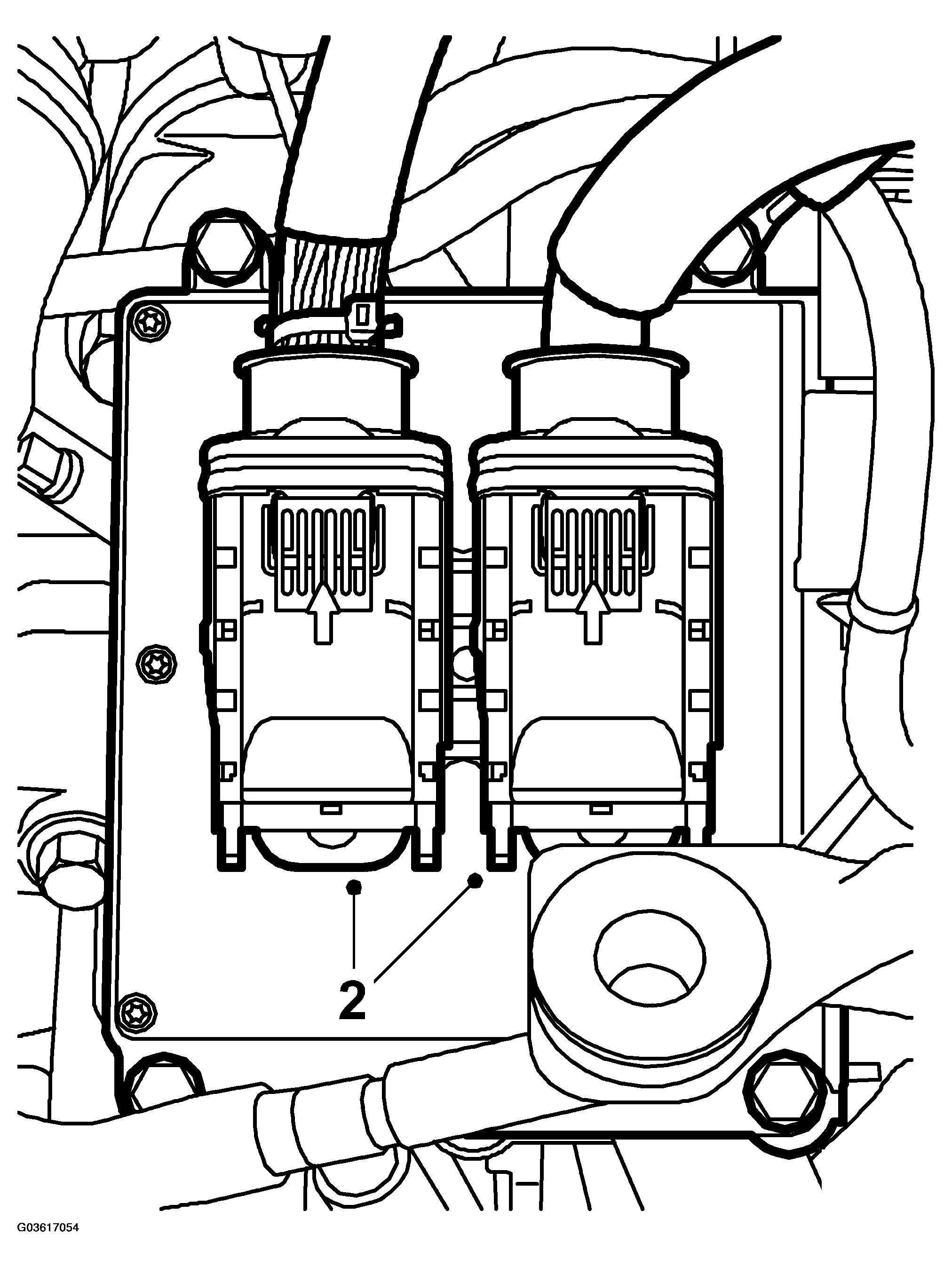

    Fig 2: Illustration For Step 2
    G03617054Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the upper engine cover.

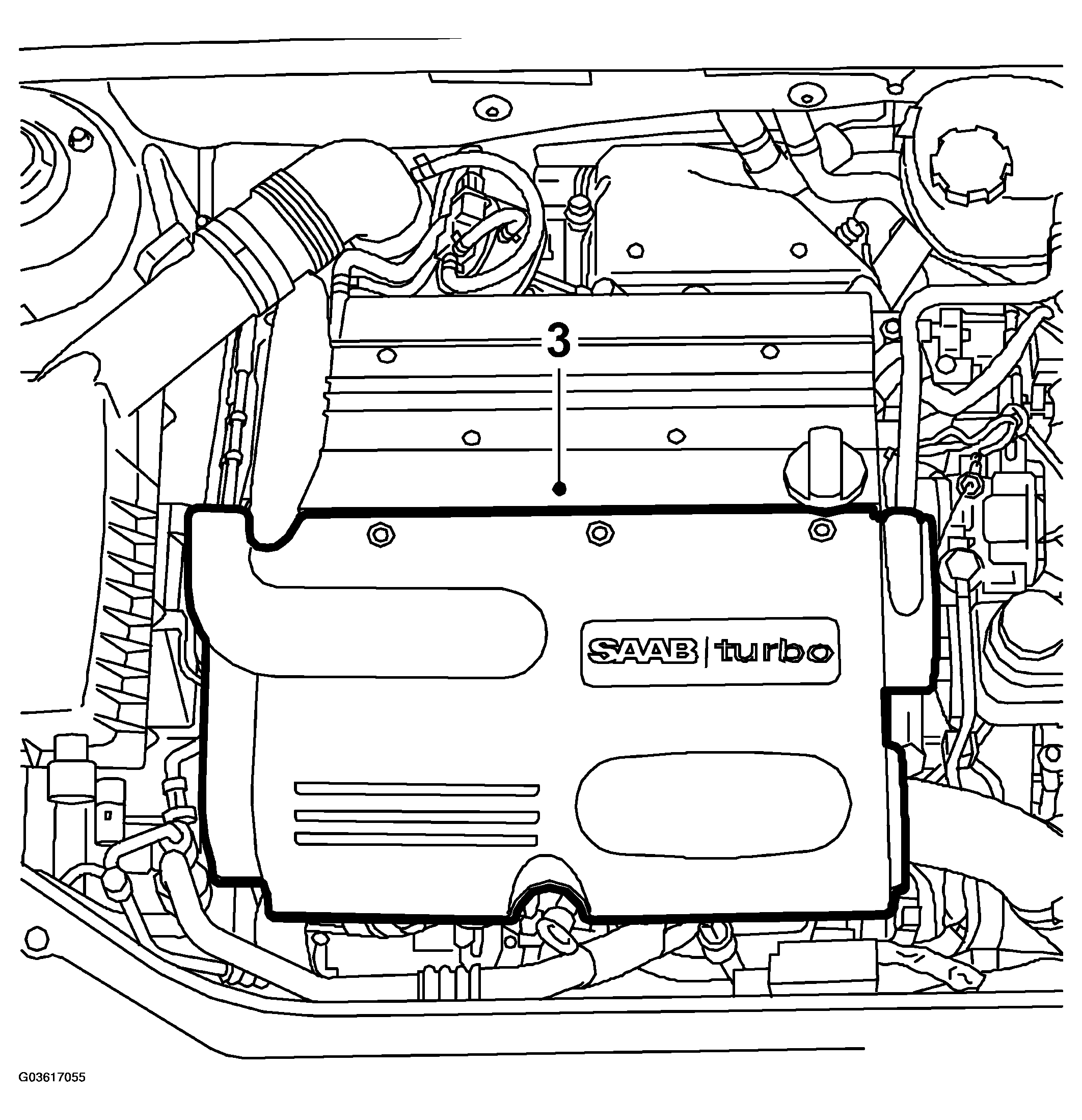

    Fig 3: Illustration For Step 3
    G03617055Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Carry out actions after replacement of control module.
